Reference dimensions describe the illustrated adapter. Final specifications depend on customer drawings and application requirements.
We machine male and female threads to the required specifications. Thread pitch, engagement length, and shoulder dimensions are important for proper sensor installation.

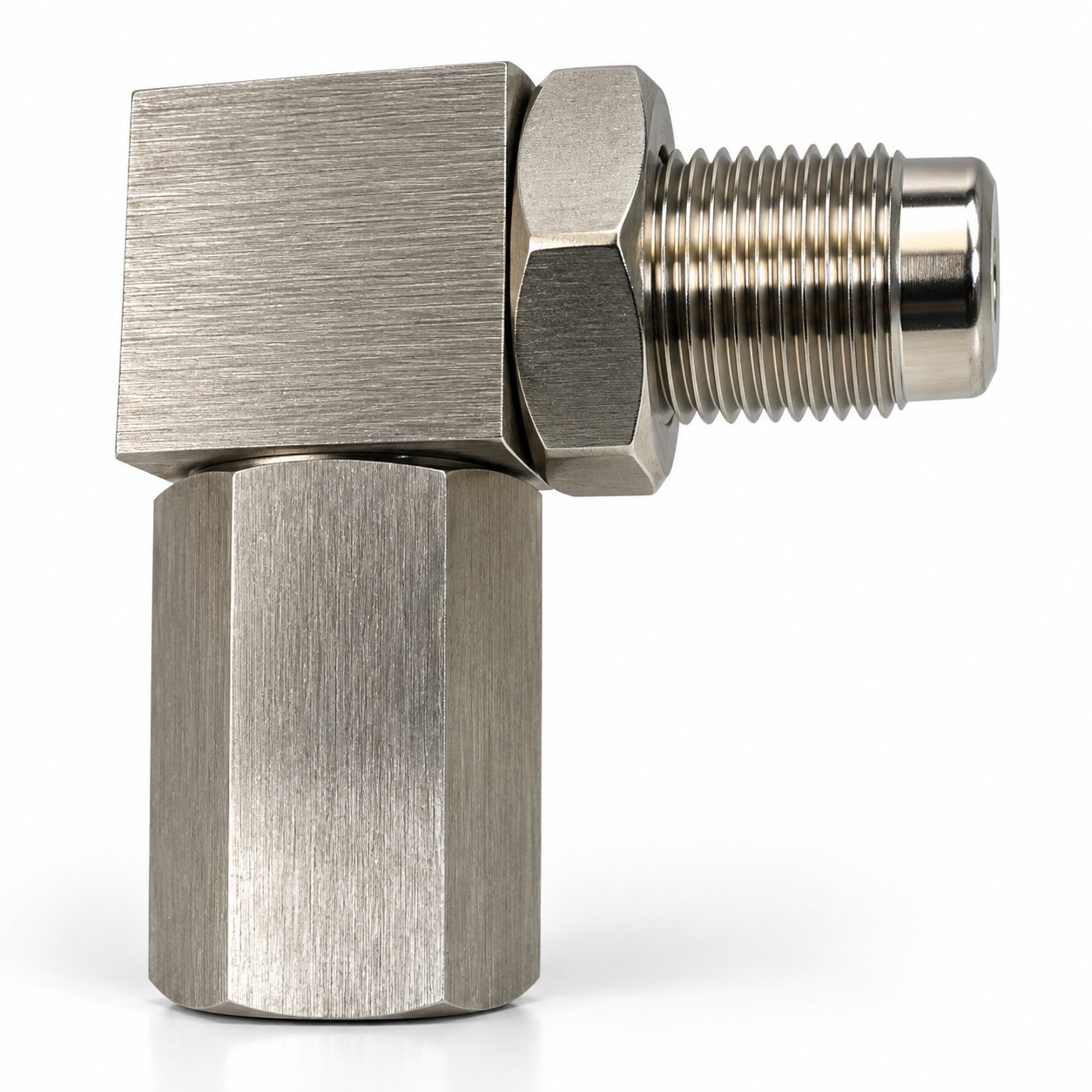

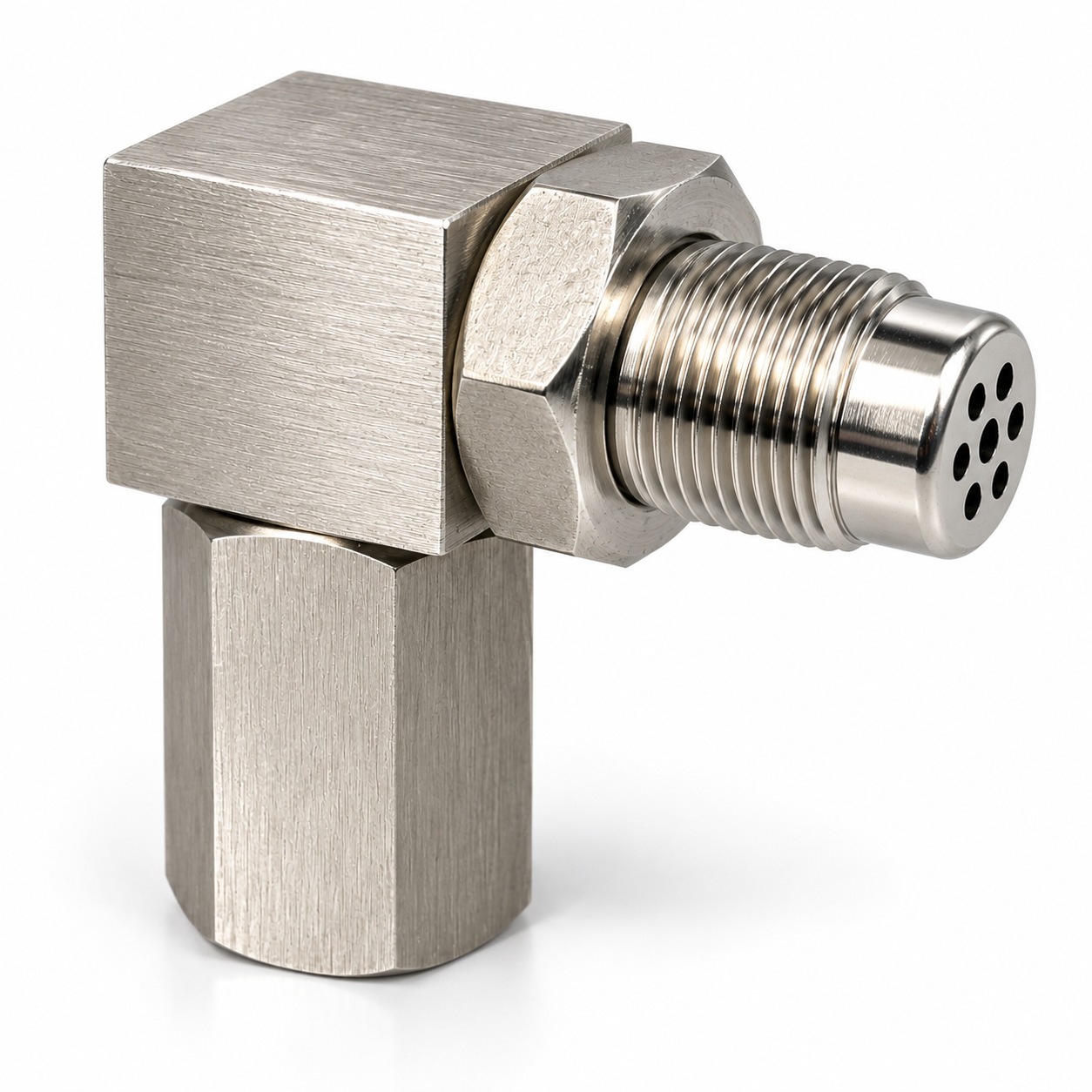

Elbow adapters are useful when a straight sensor installation interferes with nearby components. We can customize the angle, extension length, and mounting orientation to suit the available space.
For CNC machined sensor adapters, internal bore size and alignment deserve close attention. We machine through-holes, stepped bores, and internal cavities according to the drawing.
Stainless steel 304 and 316 are available, along with other specified materials. Material selection should account for operating temperature, corrosion exposure, and the sensor environment.

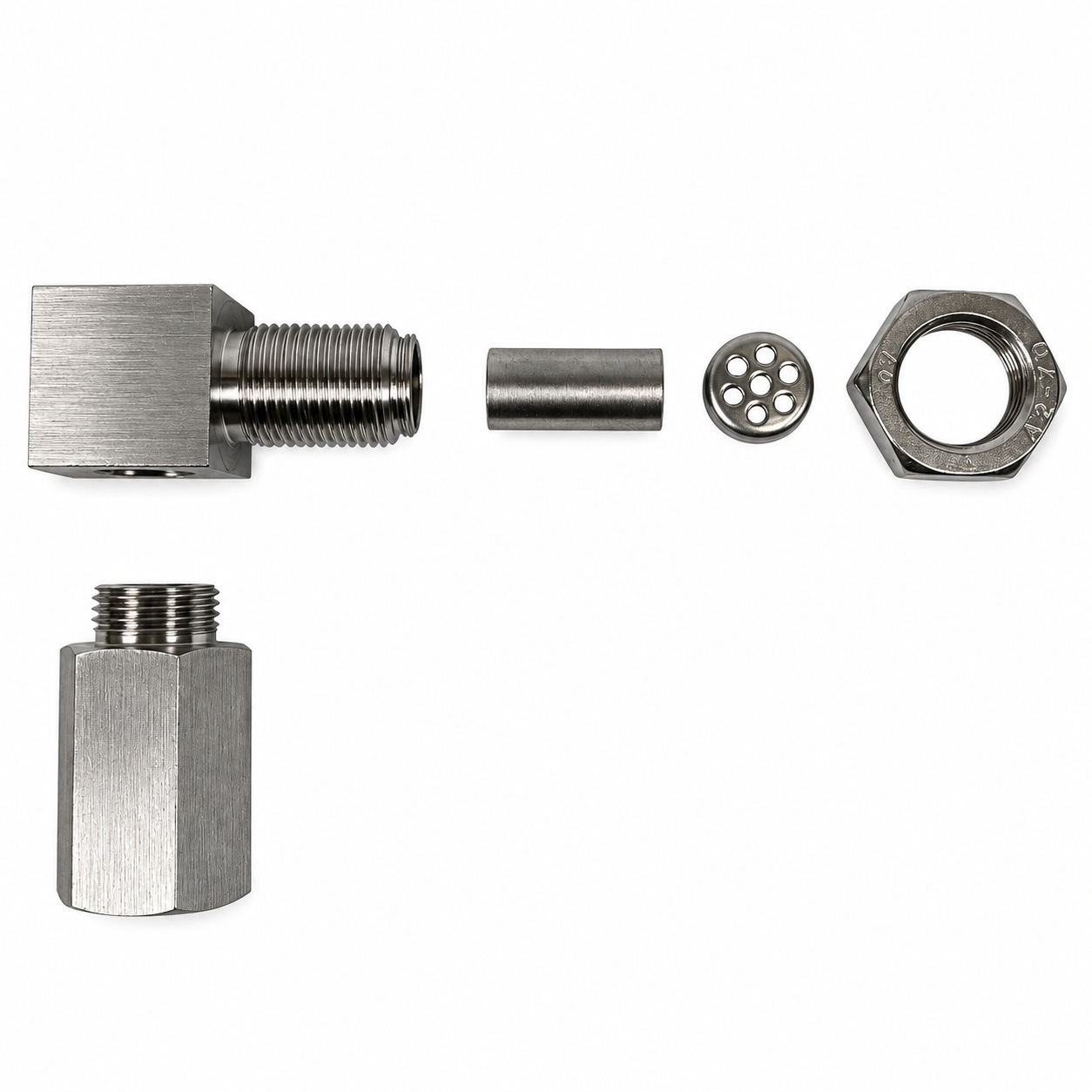

A sensor adapter may have only a few features, but the relationship between the thread, sealing shoulder, and internal cavity matters. We review these interfaces before machining to help avoid fit issues during assembly.
Need a different thread, extension length, sensor angle, or internal bore?
Hofengfab manufactures custom sensor adapters from customer drawings, using CNC turning and milling for precision threads, mounting faces, and complex adapter geometries.
Explore our CNC turning services for more machining capabilities.
Send your 2D DWG or 3D STEP file with material, quantity, and critical dimensions to:
Email: info@hofengfab.com
We'll review your design and provide a machining quotation.
