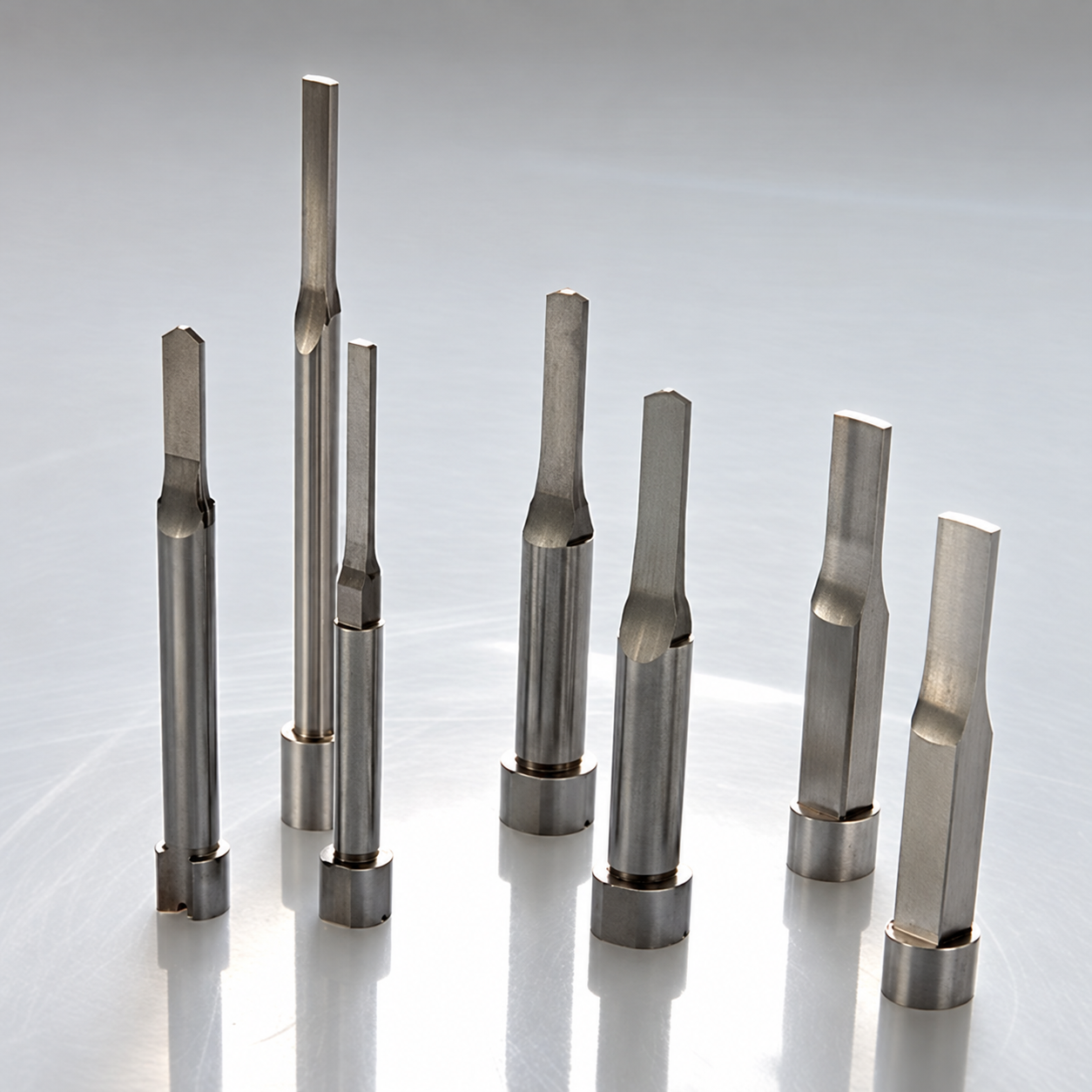

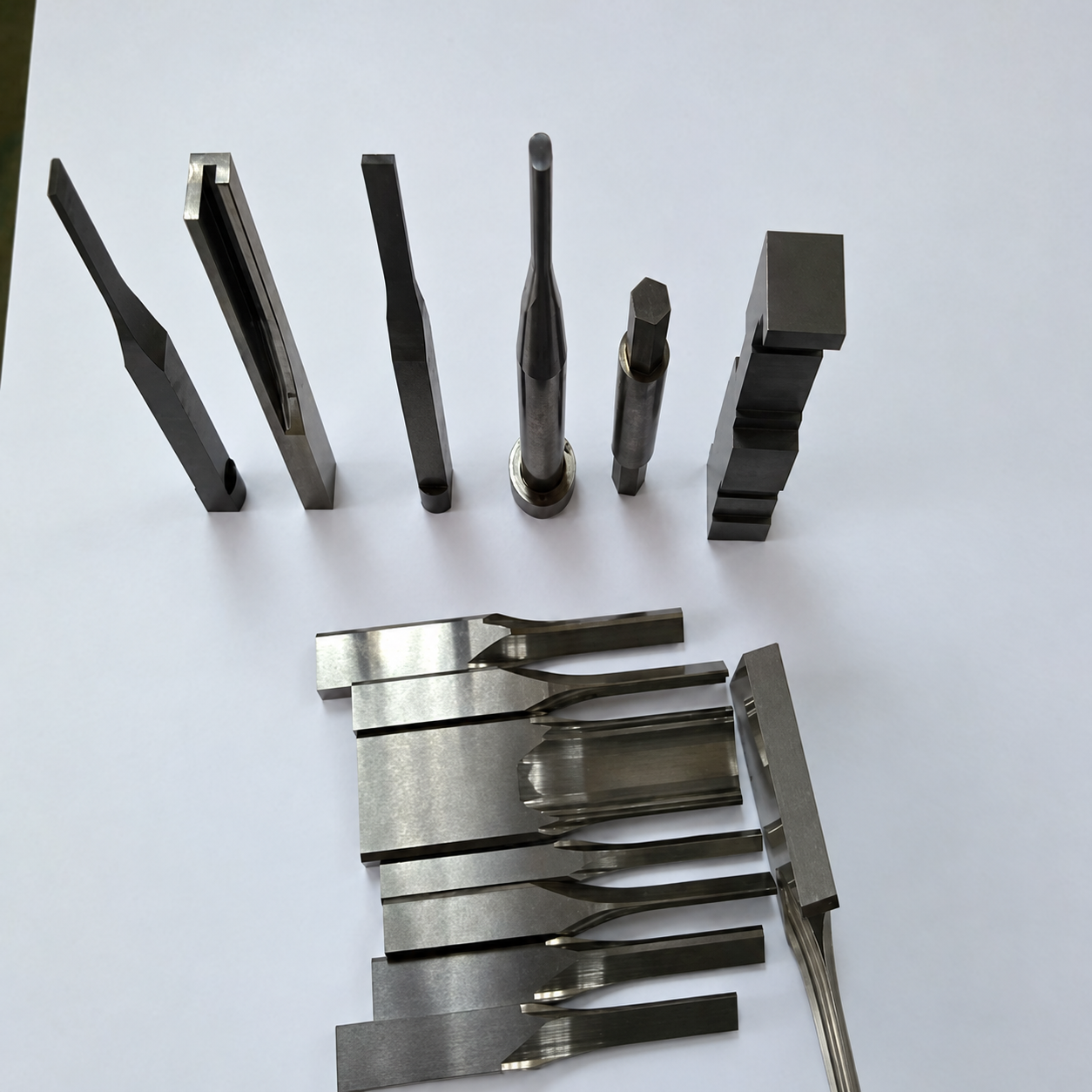

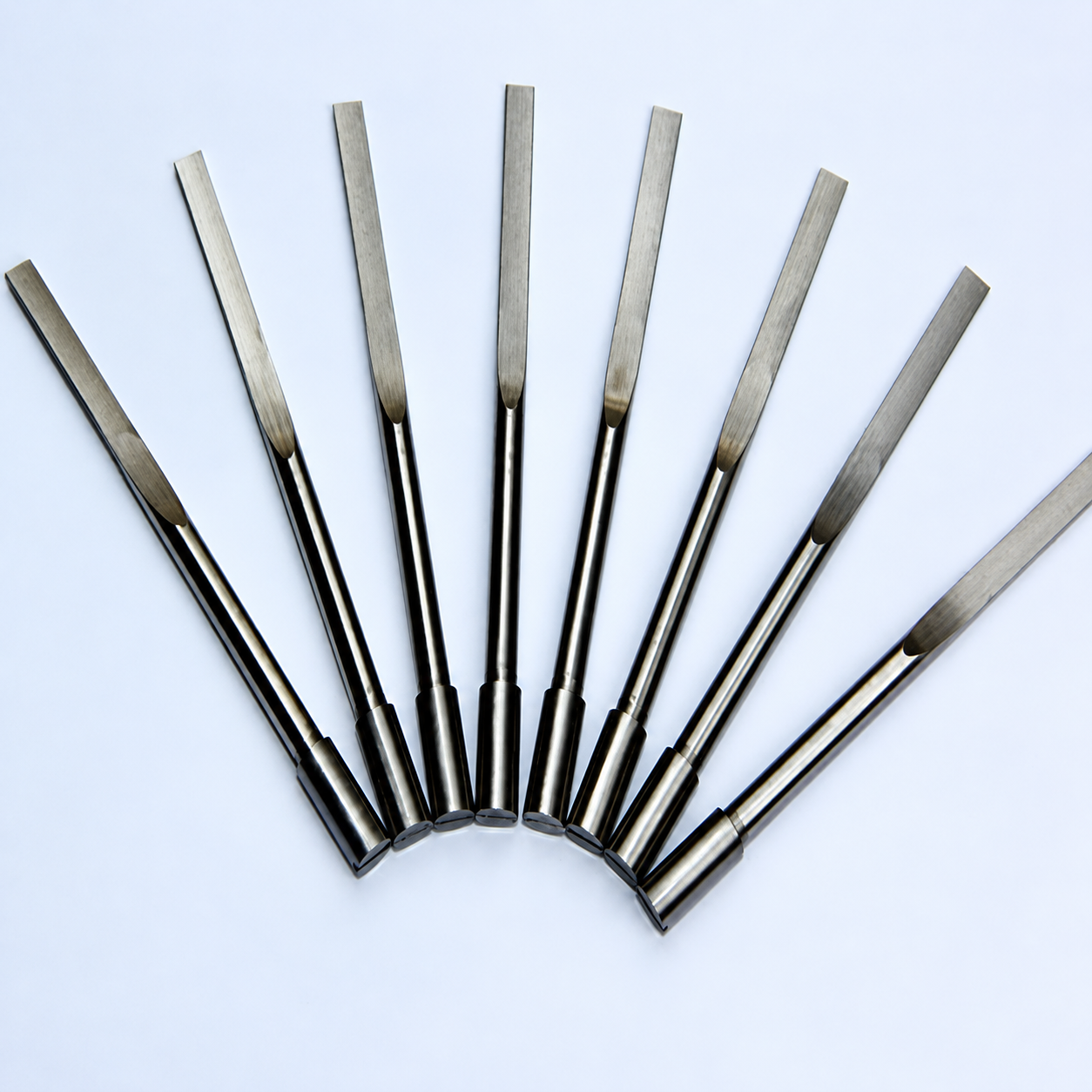

Custom Locating Pins
- Materials: Tool Steel, SUJ2, SKH51, Stainless Steel, Tungsten Carbide Options
- Manufacturing Processes: CNC Turning, CNC Milling, Precision Grinding, EDM Where Required
- Product Types: Flat-Sided Locating Pins, Stepped Pins, Precision Positioning Pins, Special-Shaped Pins
- Pin Diameter: Custom
- Overall Length: According to Drawing
- Locating Profile: Custom
- Shoulder Dimensions: According to Drawing
- Flat Surfaces & Slots: According to Drawing
- Heat Treatment: According to Material Requirements
- Dimensional Tolerance: According to Drawing
- Surface Finish: According to Drawing
- Inspection: Dimensional Inspection, Optical Measurement, CMM for Applicable Features
- Drawing Formats: 2D DWG / 3D STEP
- Production: Prototypes and Batch Production
- Applications: Precision Molds, Stamping Dies, Assembly Fixtures, Industrial Automation, Mechanical Positioning Systems
- Accurate Positioning: Precisely machined locating surfaces help maintain repeatable component positioning in molds and fixtures.
- Custom Locating Profiles: We manufacture flat-sided, stepped, tapered, and irregular locating features according to customer drawings.
- Controlled Assembly Fit: Pin diameters, shoulders, and mounting sections are machined to match the required clearance or interference fit.
- Complex Geometry: We support narrow flats, longitudinal slots, small steps, angled transitions, and other non-standard features.
- Material Flexibility: Tool steels, stainless steel, and tungsten carbide options can be selected based on wear conditions, loading, and application requirements.
- Clean Surface Finishing: Precision grinding and deburring help produce smooth locating surfaces and clean edges for easier assembly.
- Drawing-Based Customization: Pin lengths, locating shapes, mounting features, and critical tolerances can be customized using 2D DWG or 3D STEP drawings.
