We manufacture custom connectors based on your actual design requirements, from prototypes to production runs.
Send your 2D DWG drawing or 3D STEP file to info@hofengfab.com,
Visit Hofengfab for more custom precision manufacturing capabilities.

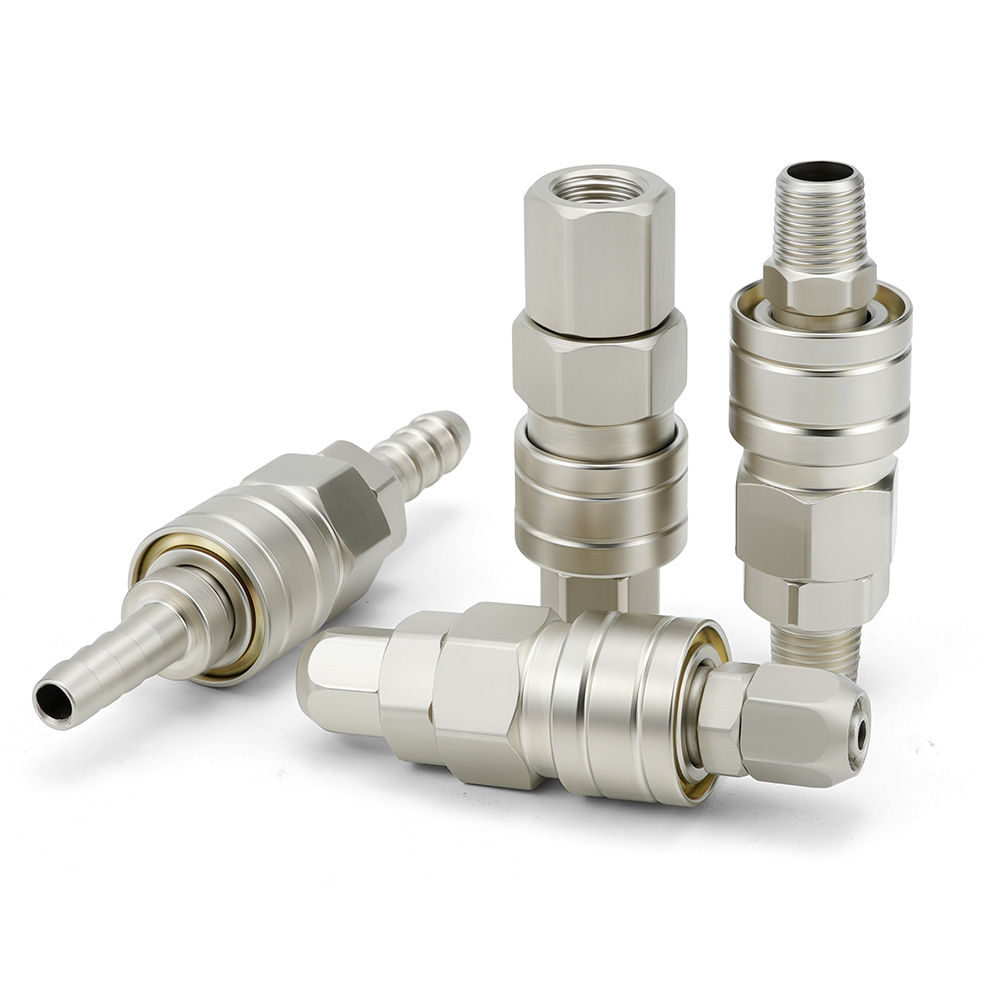

Custom CNC Machined Fluid Connectors
- Material: Nickel-plated steel for reference models; stainless steel, brass, aluminum, and other materials on request
- Manufacturing: CNC turning, milling, drilling, boring, and threading
- Connection Types: Quick-release, hose barb, male thread, female thread
- Configurations: Straight, 2-way, 3-way, and custom manifolds
- Tube Compatibility: PU tubing and other specified tubing
- Reference Tube Sizes: 8 × 5 mm, 10 × 6.5 mm, 12 × 8 mm (OD × ID)
- Reference Pressure Rating: 1 MPa
- Reference Operating Pressure: 0–0.8 MPa
- Reference Temperature: 0–60°C
- Sealing: O-ring or customer-specified sealing design
- Surface Finish: Nickel plating and other finishes as required
- Customization: Dimensions, threads, ports, internal passages, materials, and tolerances
- Drawing Formats: 2D DWG / 3D STEP
- Production: Prototypes, small batches, and production quantities
Pressure and temperature limits are reference values for the illustrated fittings. Final ratings depend on the connector design, material, seals, and validation requirements.
Quick-Release Connection
The quick-release coupling allows fast connection and disconnection without complicated tools. Its self-locking design helps keep the connector securely engaged during operation, making installation and maintenance easier.
Dual Sealing Design
The coupling features an O-ring and an additional sealing ring to help reduce air leakage at the connection. Properly machined sealing grooves and mating surfaces are important for maintaining a reliable seal.
Secure Hose Connection
The machined hose barb provides a practical connection for flexible tubing. Barb diameter, groove profile, and insertion length can be customized to match different hose sizes and assembly requirements.
Precision CNC Machined Body
The connector body features machined threads, smooth sealing surfaces, and consistent internal bores. We focus on critical dimensions that affect fit, sealing, and repeatable assembly.
CNC Machined for Accurate Connections
We pay particular attention to thread dimensions, sealing grooves, bore alignment, and mating surfaces. These are often more important to connector performance than the external appearance.
Custom Threads and Fluid Passages
Need a non-standard thread, a different port angle, or a compact manifold? We can machine internal passages, cross-drilled holes, threaded ports, and custom connection geometries to match your assembly.
Multiple Connector Designs
We support straight quick couplings, male and female threaded fittings, hose connections, and 2-way or 3-way fluid distribution connectors. Port sizes and layouts can be adjusted to suit your equipment.
Material and Finish Options
Material selection depends on pressure, fluid compatibility, corrosion exposure, and operating conditions. We can review steel, stainless steel, brass, and aluminum options, along with suitable surface finishes.
Made to Your Drawings
Our CNC turning services support custom connector bodies, precision bores, threads, and stepped diameters. CNC milling is also available for angled ports and more complex manifold designs.
