Need a non-standard thread, longer mounting section, or special sealing groove?
Send your 2D DWG or 3D STEP drawings,
Email: info@hofengfab.com
We'll review the machining requirements and provide a quotation.

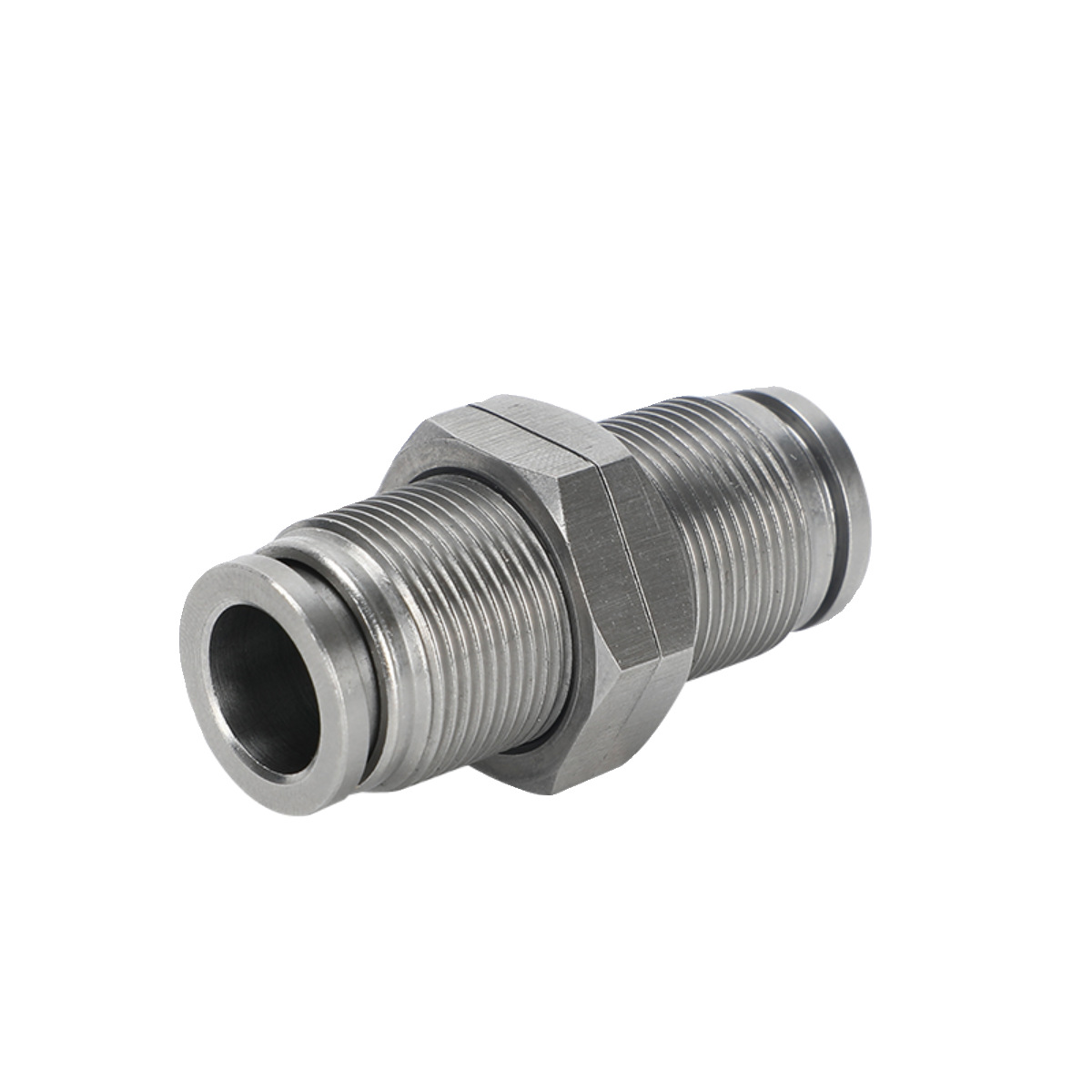

Custom Bulkhead Connectors
- Material: Stainless Steel 304, 316, or customer-specified materials
- Manufacturing: CNC Turning, Milling, Drilling, Threading
- Configurations: Straight, 90° Elbow, Double-Ended Connectors
- Connection Type: Push-to-Connect, Threaded
- Reference Tube Sizes: 4–16 mm
- Thread Options: Metric, G, NPT, ZG, Custom Threads
- Reference Working Pressure: Up to 1.6 MPa
- Sealing: O-Rings, FKM Seals, or Custom Sealing Designs
- Installation: Panel and Bulkhead Mounting
- Optional Feature: 360° Swivel Connection
- Surface Finish: Machined, Polished, or Customer-Specified
- Customization: Thread Size, Bore Diameter, Panel Thickness, Overall Length, Tolerances
- Drawing Formats: 2D DWG / 3D STEP
- Production: Prototypes and Production Runs
Pressure and temperature ratings depend on the material, seal, tubing, and final connector design. Custom assemblies require appropriate validation.
Precision CNC Machined Threads
We machine internal and external threads with attention to pitch, thread depth, and fit. Accurate threads help prevent assembly problems and keep bulkhead connectors properly secured.
Secure Bulkhead Mounting
The threaded body and locking nuts allow the connector to be mounted through a panel. Thread length and mounting geometry can be customized for different panel thicknesses.
Reliable Sealing Design
Sealing performance depends on correct groove dimensions, O-ring compression, and mating surface finish. We machine these critical features according to the required sealing design.
Straight, Elbow & Swivel Options
We manufacture straight and 90-degree stainless steel bulkhead connectors. Swivel designs are also available where tube orientation needs to be adjusted after installation.
Custom Sizes and Materials
Standard fittings do not always match the available installation space. We can adjust body length, port diameter, thread specification, and material to suit your equipment.
CNC Machining to Your Drawings
Bulkhead connectors may look simple, but keeping two connection ends aligned while machining threads and sealing grooves requires careful setup.
Our CNC machining services support custom connector bodies, precision bores, threaded features, and complex fittings.
