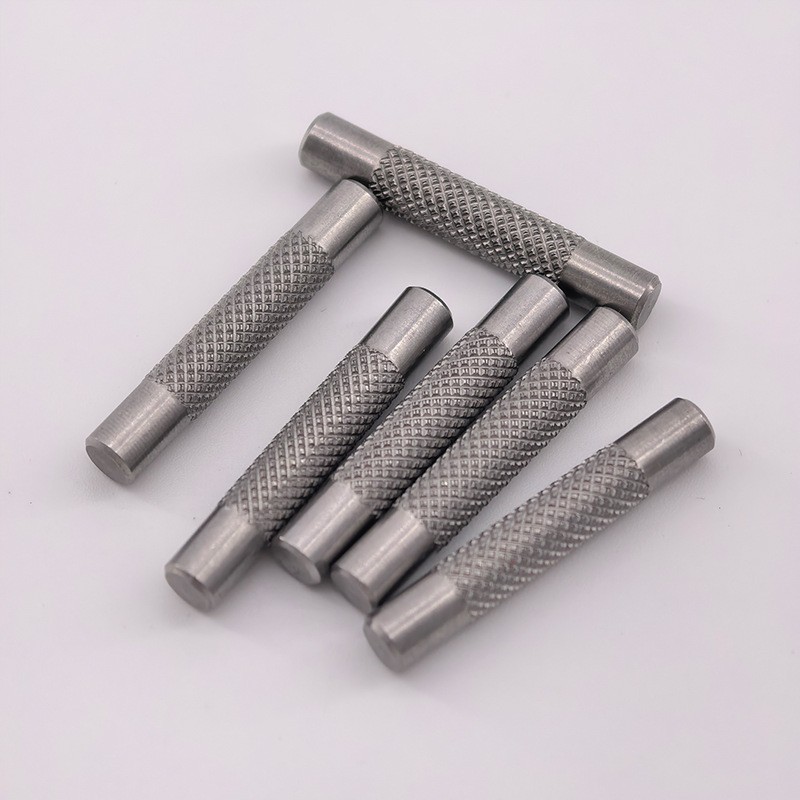

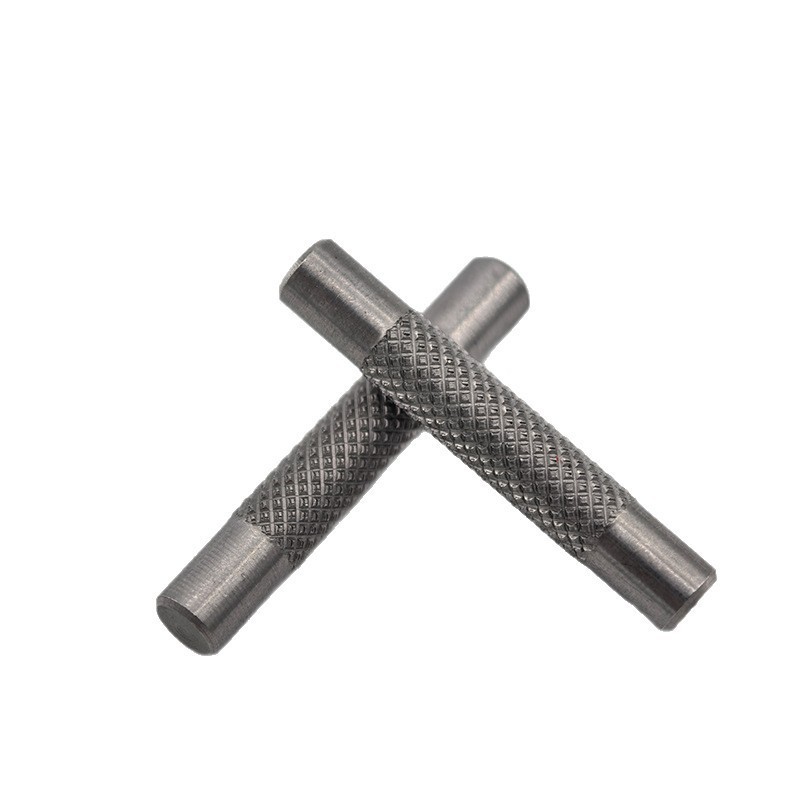

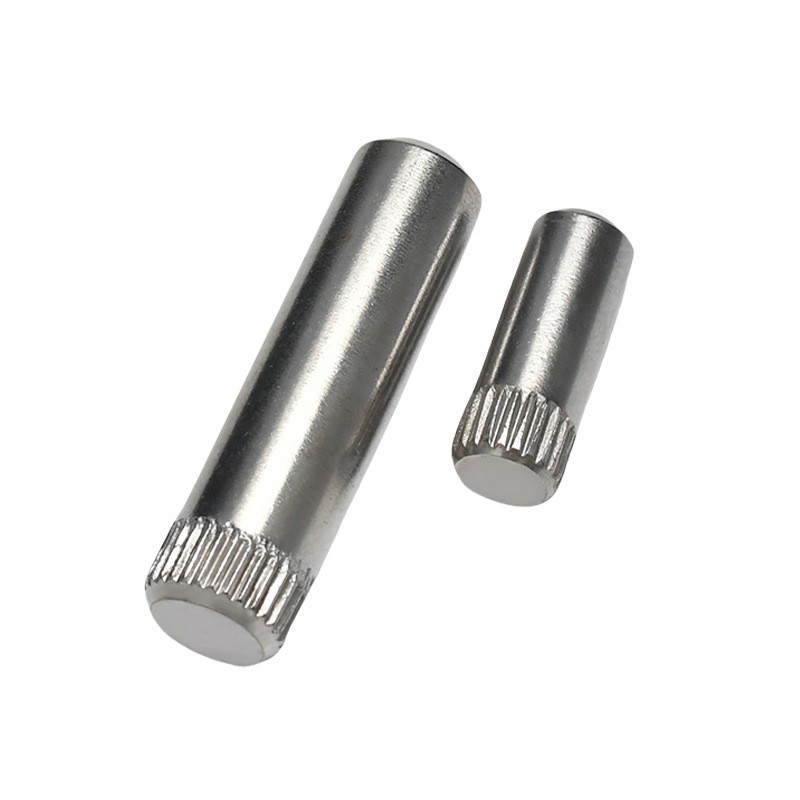

Custom Pivot Pins

Product Type: Pivot Pins and Custom Mechanical Pins
Material: Carbon Steel; stainless steel, brass, and other materials available subject to design requirements
Reference Material Hardness: 125–245 HV30, as specified for the listed carbon steel option
Surface Treatment: Nickel Plating or other finishes based on material and application
Dimensions: Custom diameter, length, shoulder geometry, and end features
Dimensional Tolerances: Customizable according to engineering drawings
Reference Standard: DIN 94 listed in the source specification; applicability to the final pin design must be confirmed
Manufacturing Process: CNC Turning and other suitable machining or secondary processes
Inspection: Critical diameters, overall length, shoulder positions, and specified features
Order Quantity: Prototype samples, small batches, and production quantities
Drawing Formats: 2D DWG, DXF, PDF, and 3D STEP/STP

Final material grades, dimensions, hardness, applicable standards, and surface treatments are confirmed during drawing review.

Designed for Mechanical Assemblies: Custom pivot pins can provide a defined pivot point or locating interface for moving and fixed components, depending on the design.
Made to Your Dimensions: Specify the pin diameter, overall length, shoulder positions, and end geometry to match your existing assembly.
Material and Finish Options: Nickel-plated carbon steel is one available configuration. Stainless steel, brass, and other materials can be considered according to load, wear, and corrosion requirements.
Focus on Fit and Function: For pivot applications, clearance, alignment, and contact surfaces can matter as much as the nominal diameter. We review these details against your drawing.
Custom Manufacturing Support: We welcome non-standard designs and can support prototype development and repeat orders based on approved engineering drawings.

Have a pivot pin that does not match standard catalog dimensions?

Send your 2D DWG drawing or 3D STEP file to info@hofengfab.com. Include the required material, quantity, critical tolerances, surface finish, and application details if available.

We welcome custom inquiries and will review your requirements before confirming the manufacturing approach and quotation.
