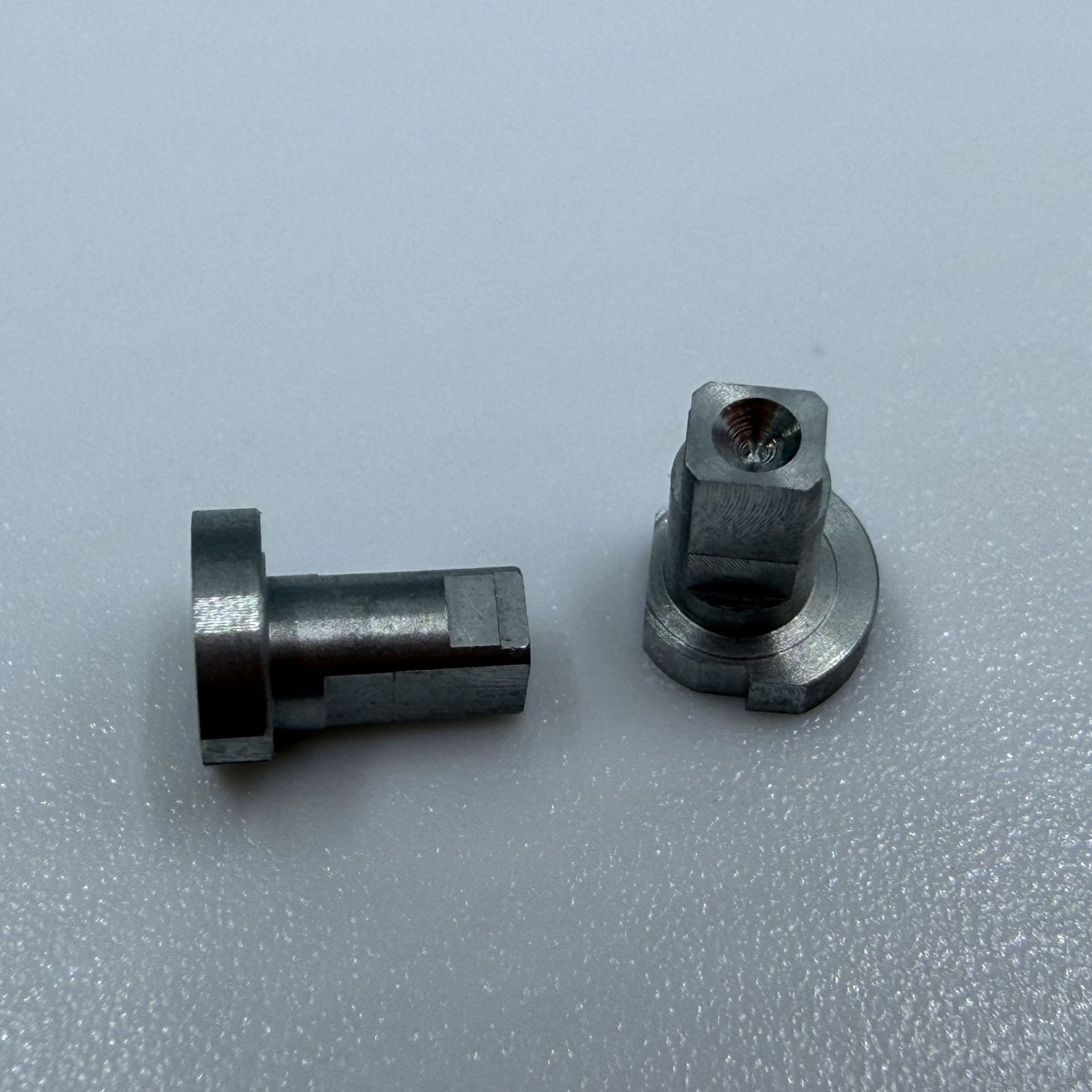

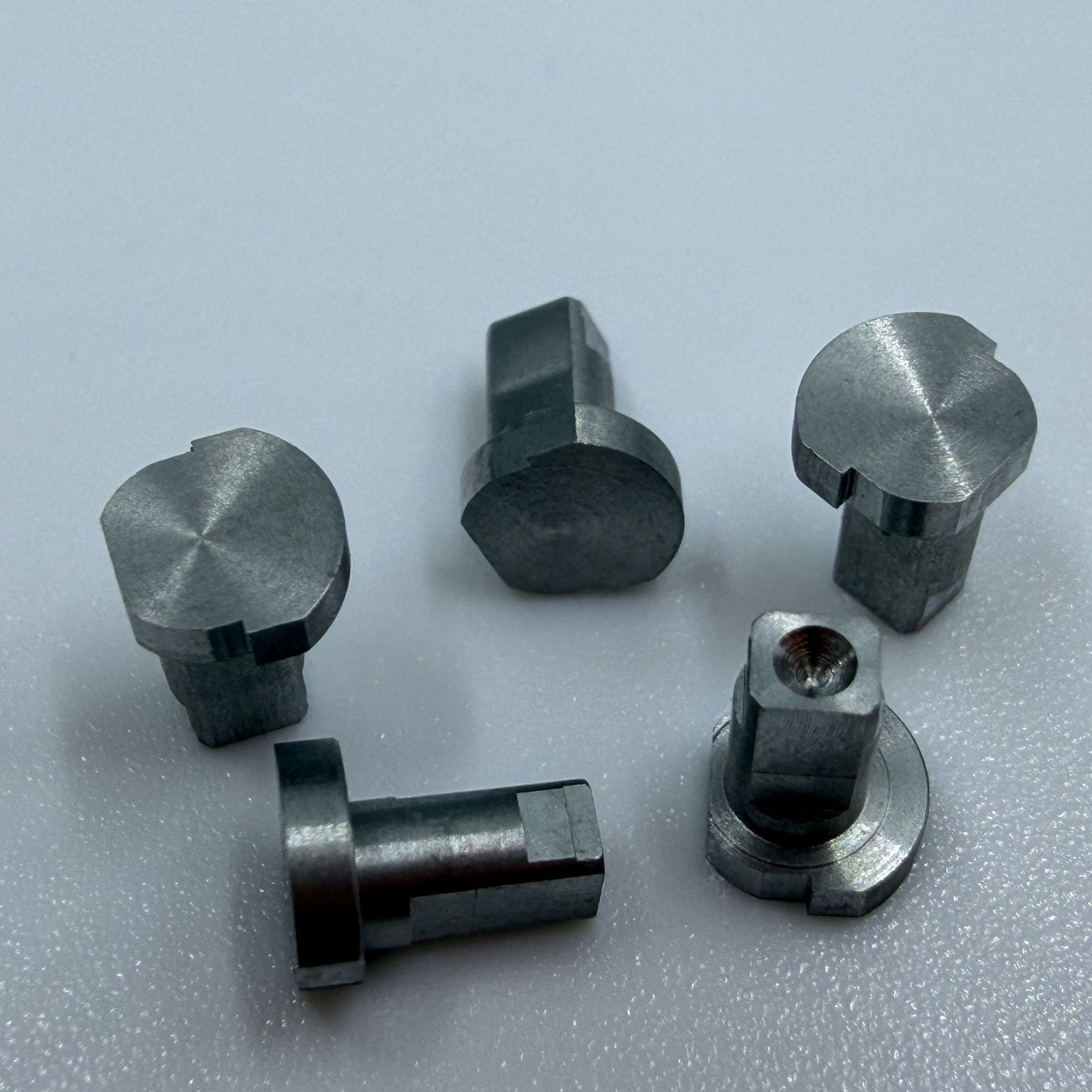

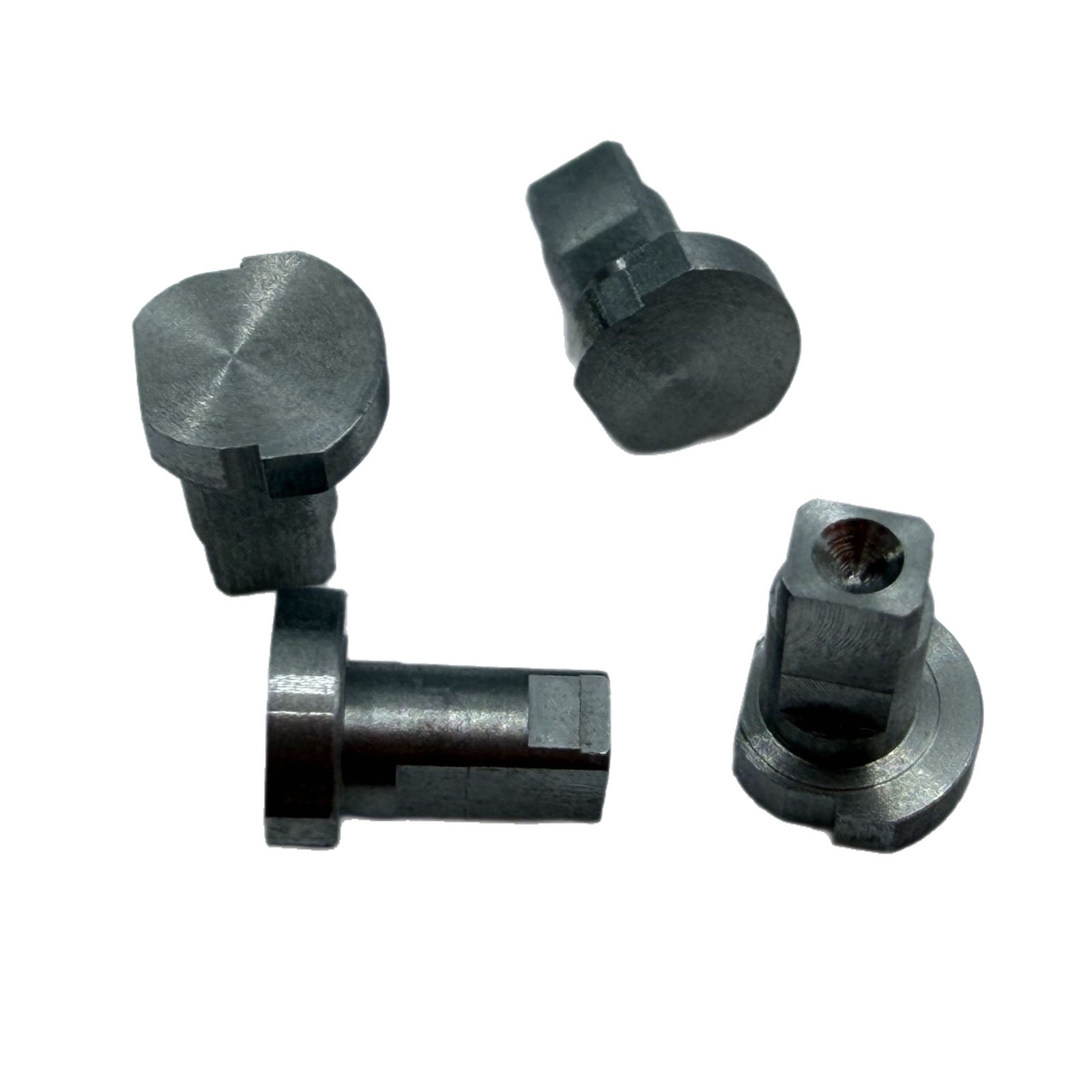

Custom Stepped Pins
- Product Type: Precision Stepped Locating Pins
- Manufacturing Process: CNC Turning and Precision Machining
- Material: 416 Stainless Steel or Carbon Steel, subject to drawing requirements
- Surface Finish: Natural machined finish or other specified finishes
- Reference Size: D6.6 × 5.15 mm
- Dimensions: Custom diameters, lengths, shoulders, and end profiles
- Tolerances: Manufactured to approved customer drawings
- Inspection: Critical diameters, shoulder positions, and overall dimensions
- Production Volume: Prototypes, small batches, and production runs
- Drawing Formats: 2D DWG, DXF, PDF, and 3D STEP/STP
Final material, dimensions, tolerances, and finishing requirements are confirmed before production.
- Stepped Geometry for Accurate Positioning: Different shaft diameters and shoulder heights provide locating surfaces and help control the relative position of assembled components.
- Custom Dimensions: We manufacture stepped pins to your specified diameters, lengths, shoulder positions, and end details rather than limiting designs to standard sizes.
- Material Options: Material selection depends on strength, wear, corrosion exposure, and operating conditions. We can review your application before confirming the material.
- Attention to Assembly Fit: A stepped pin can have several critical diameters and axial dimensions. We focus on the relationships between these features, not just the overall length.
- Made to Engineering Drawings: Send your 2D DWG drawing or 3D STEP model for a manufacturing review and quotation.
Have a stepped pin design that needs to match an existing assembly?
Send your 2D DWG drawing or 3D STEP file to info@hofengfab.com. Include the material, required quantity, critical tolerances, surface finish, and application details where available.
We welcome custom inquiries for prototype development and repeat production.
