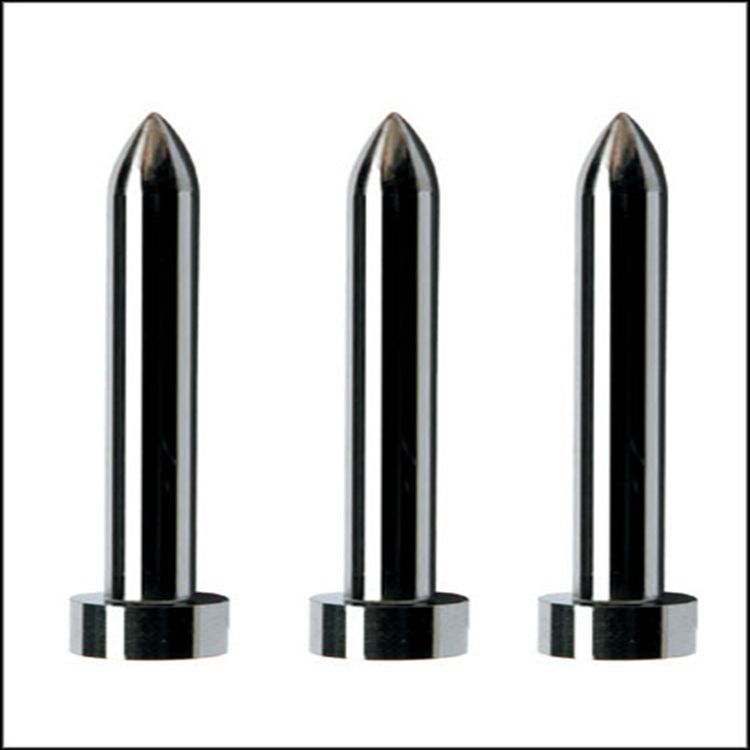

Precision Guide Pins
- Application: Stamping Dies and Precision Tooling
- Material: Tungsten Carbide Alloy
- Material Selection: Customizable according to application requirements

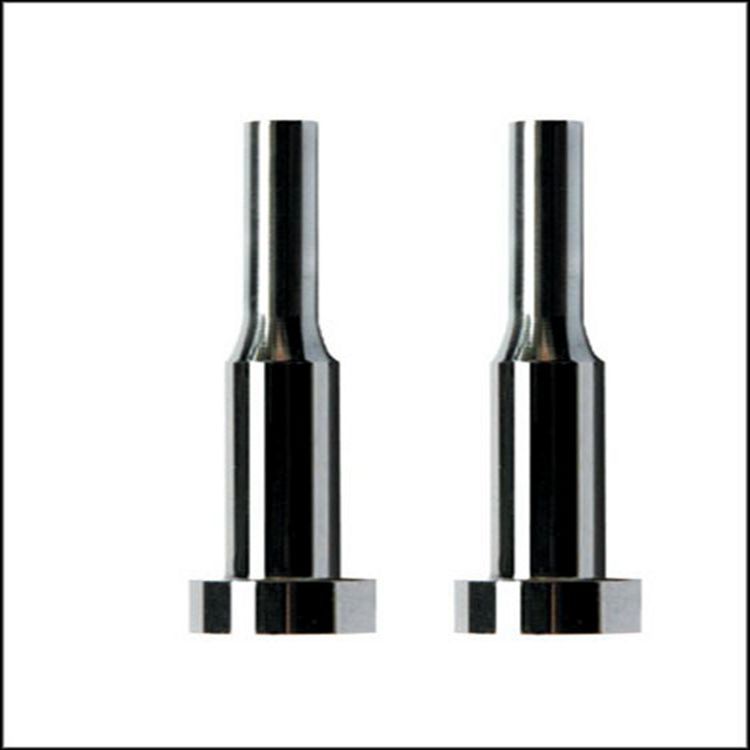

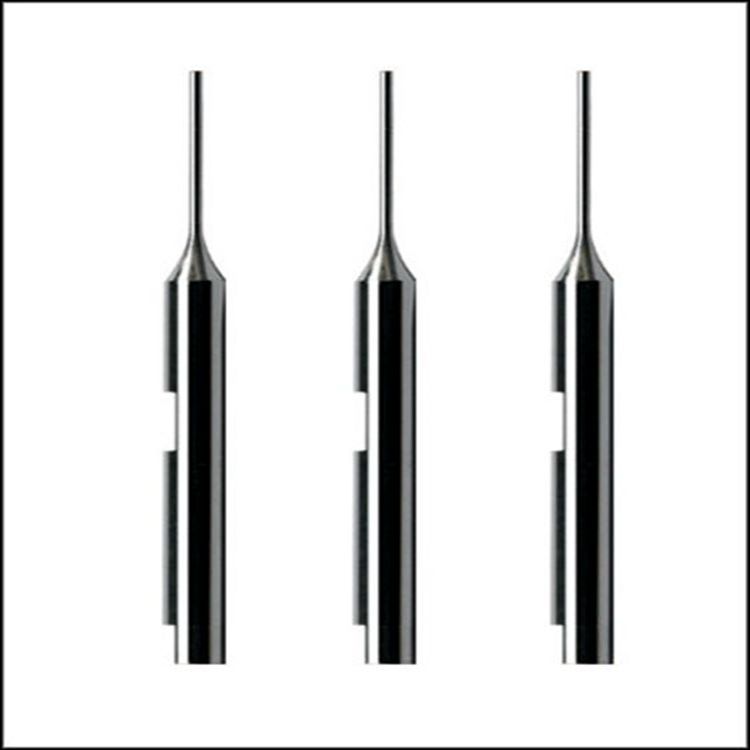

- Geometry: Straight, stepped, and custom-profile pins
- Dimensions: Custom diameters, lengths, and shoulder features
- Tolerances: According to approved engineering drawings
- Manufacturing: Precision machining and suitable grinding processes, depending on geometry and material
- Inspection: Critical diameters, lengths, alignment features, and specified tolerances
- Customization: Available
- Order Quantity: Prototype samples, small batches, and production orders
- Drawing Formats: 2D DWG, DXF, PDF, and 3D STEP/STP
Final material grade, dimensions, tolerances, and finishing requirements are confirmed during drawing review.
- Accurate Tool Alignment: Properly specified guide pins help maintain the relative position of mating tooling components and support consistent die operation.
- Wear-Resistant Material Options: Tungsten carbide is suitable for applications where hardness and wear resistance are important. The appropriate grade depends on loading, impact, and operating conditions.
- Custom Pin Geometry: We manufacture pins with different diameters, lengths, stepped sections, and end profiles to match your tooling design.
- Focus on Critical Dimensions: Pin diameter, straightness, surface finish, and fit with the mating hole can directly affect alignment and service life. These requirements should be defined on the engineering drawing.
- Made to Your Drawings: Send your existing part drawing or 3D model for a manufacturing review. We welcome custom specifications rather than limiting projects to standard catalog dimensions.
