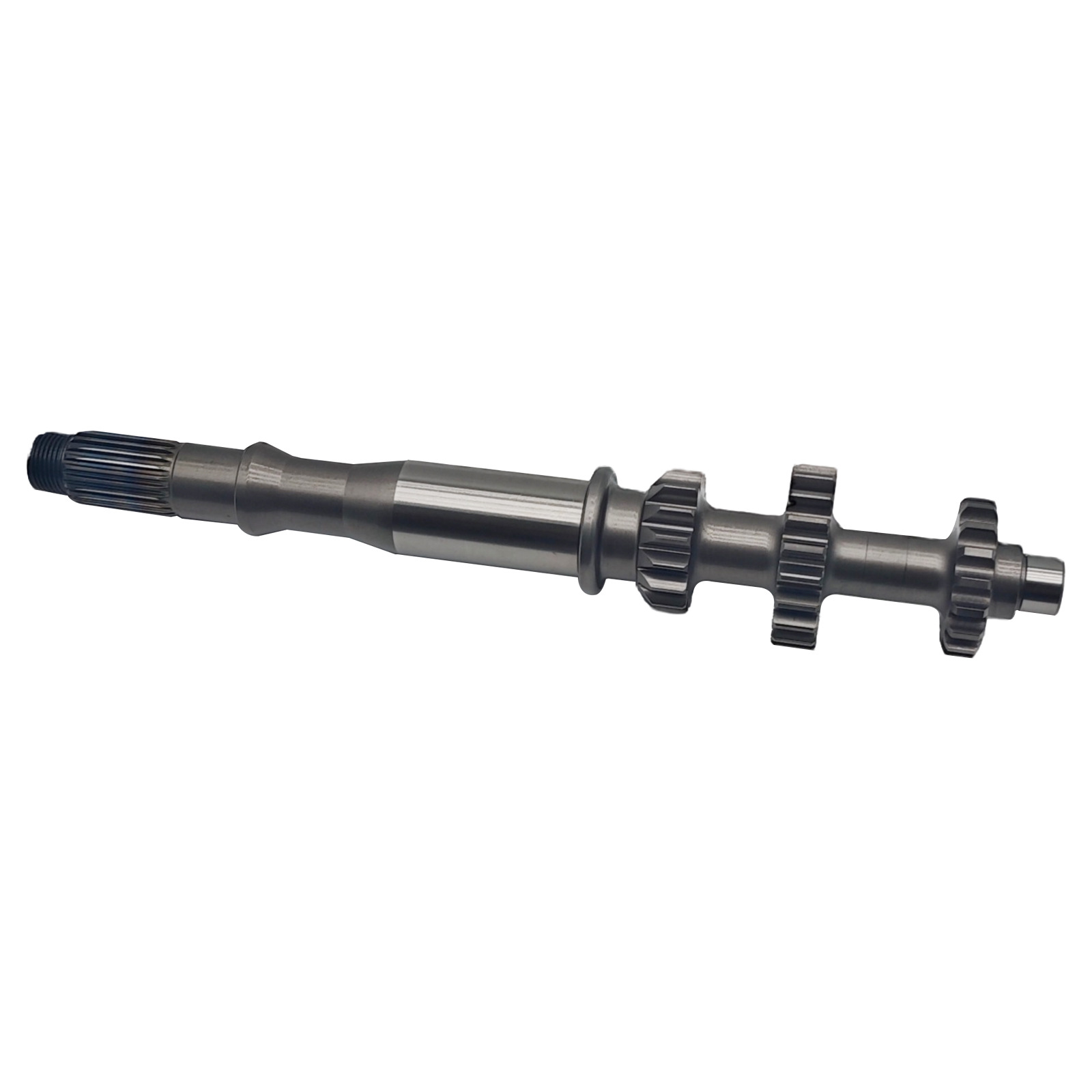

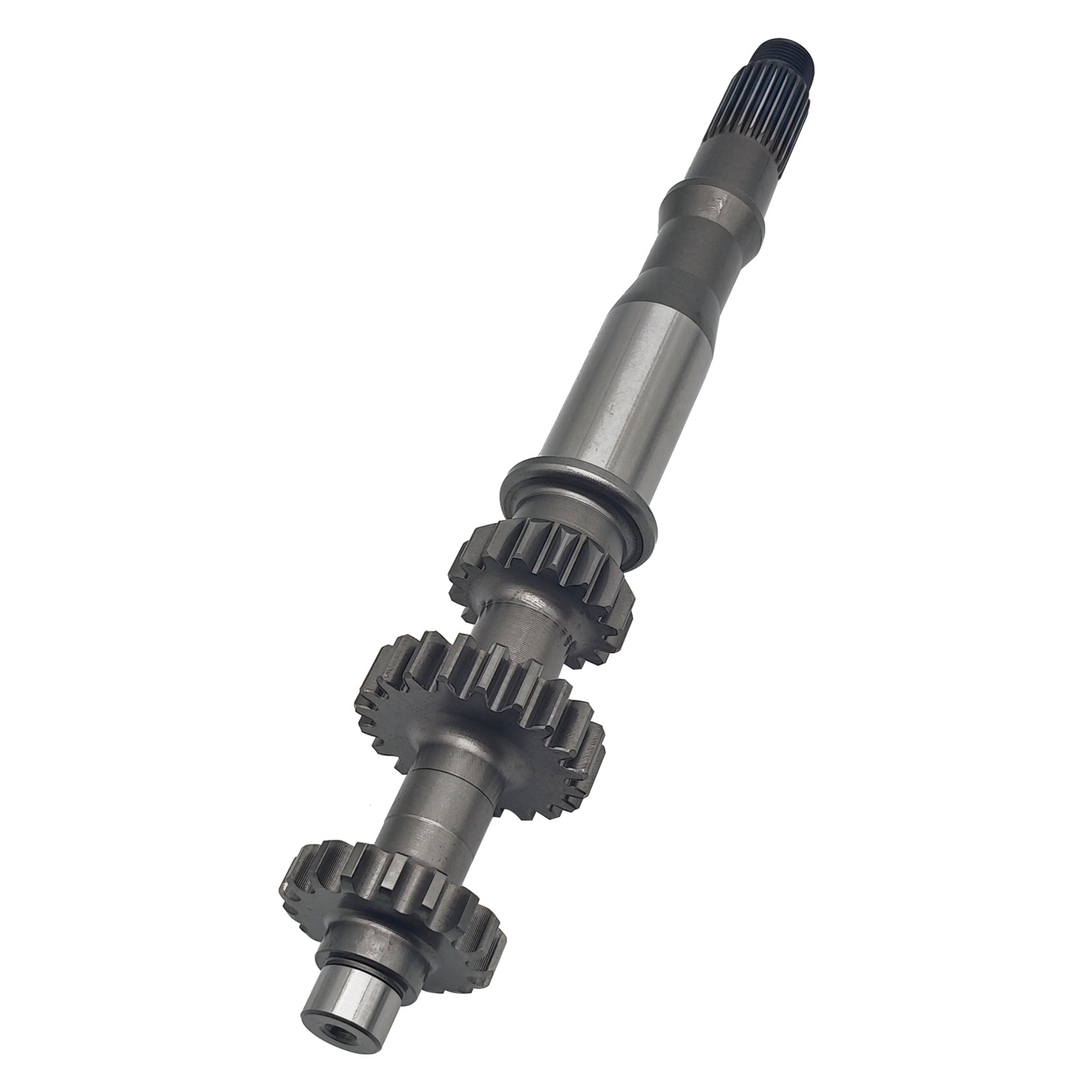

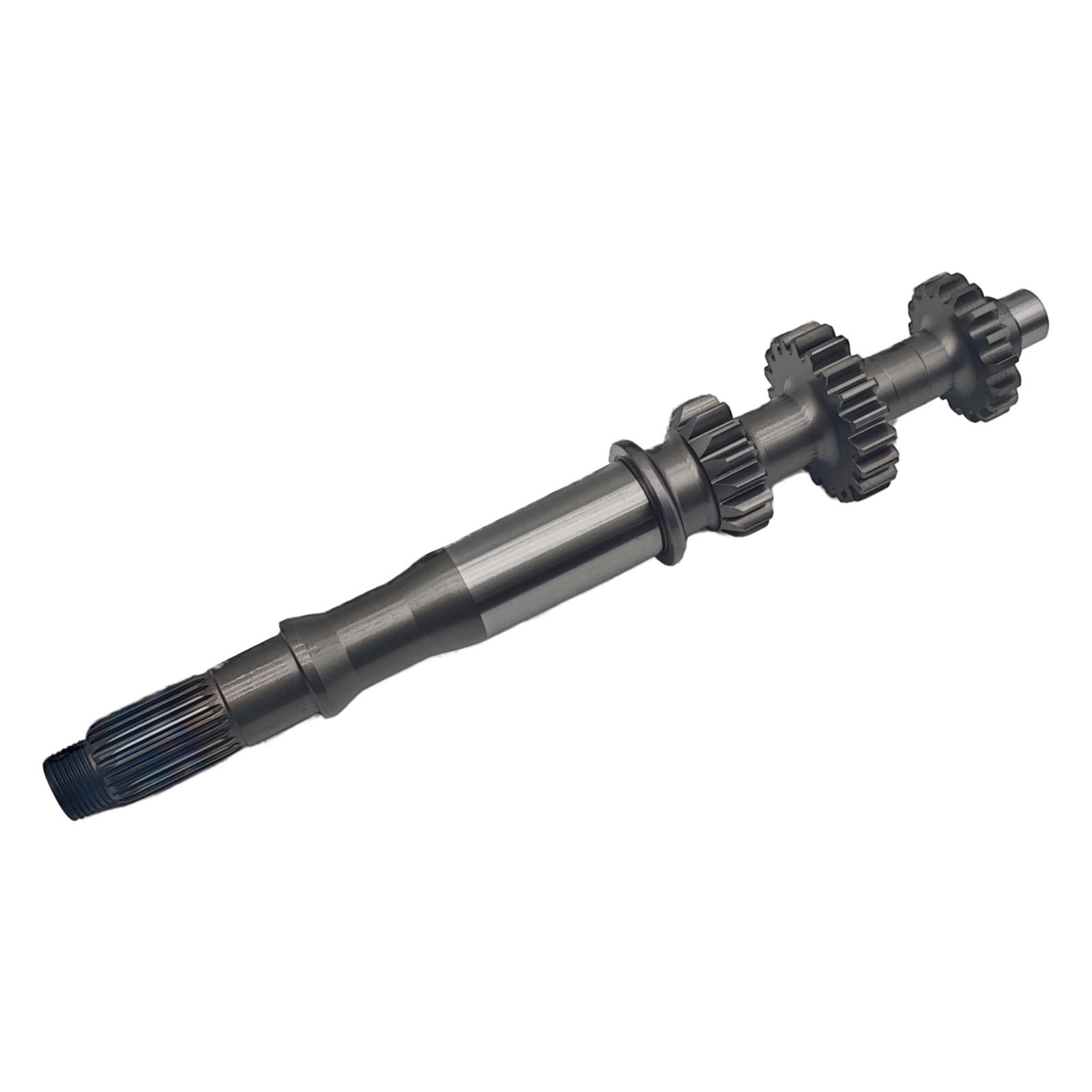

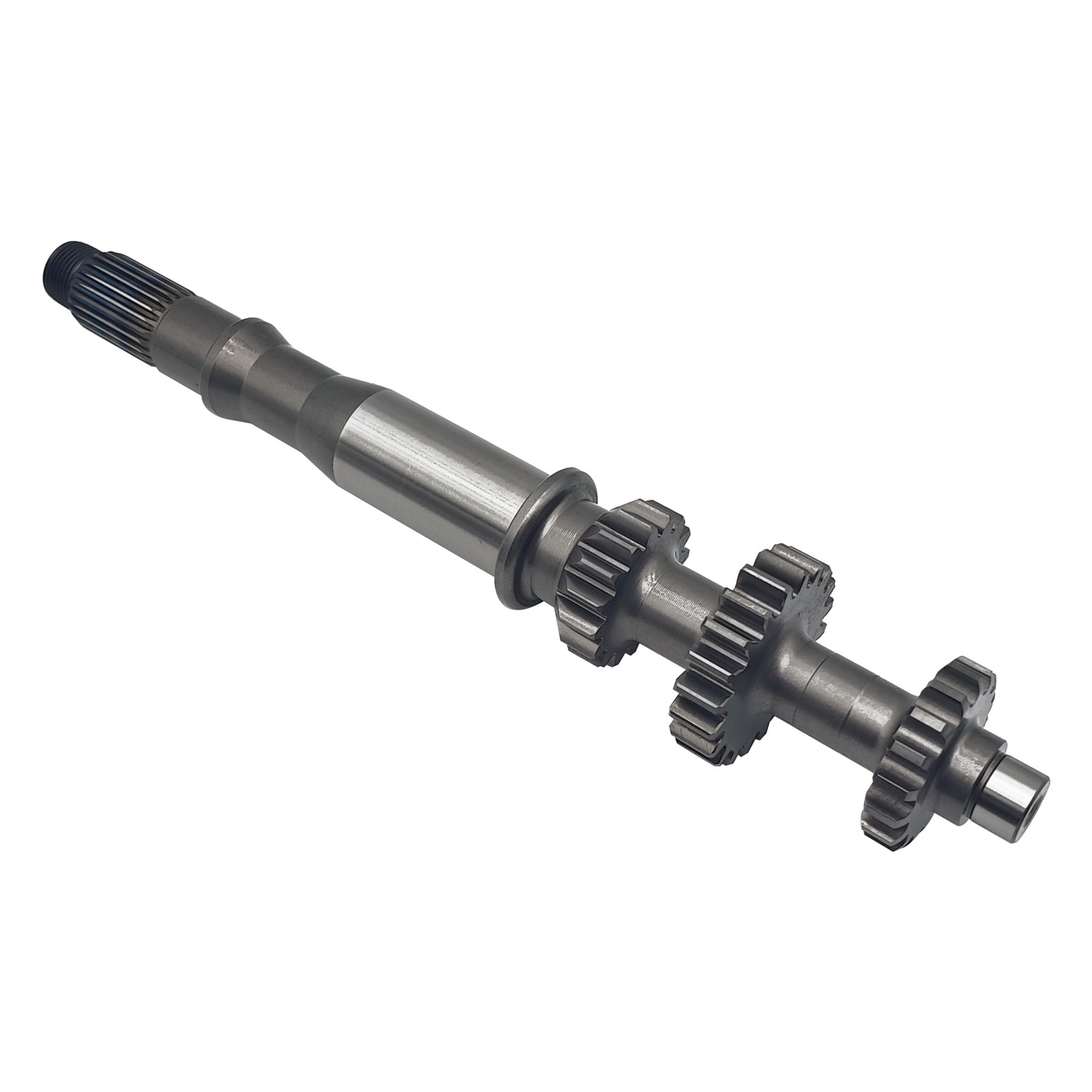

Splined Shaft

Materials: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum Alloys, Titanium, or as Specified

Manufacturing Processes: CNC Turning, Milling, Drilling, Grooving, Spline and Gear Machining as Required

Spline Type: External Splines; Involute or Straight-Sided Profiles According to Drawings

Key Features: Splined Ends, Stepped Diameters, Gear Sections, Bearing Seats, Locating Shoulders

Shaft Diameter: Customized to Engineering Drawings

Shaft Length: Customized to Engineering Drawings

Spline Specifications: Tooth Count, Module or Pitch, Pressure Angle, Fit and Profile According to Drawings

Tolerance: According to Customer Drawings and Critical Fit Requirements

Concentricity / Runout: According to Specified Datums and Geometric Tolerances

Surface Treatment: As Machined, Heat Treatment, Surface Hardening, Plating, or Other Suitable Processes

Inspection: Dimensional Inspection, CMM Where Applicable, Spline Profile and Runout Checks as Required

Production: Prototypes to Production Quantities

Drawing Formats: 2D DWG, 3D STEP / STP

Custom External Splines: Spline tooth count, profile, length, and fit can be manufactured according to the mating component and drawing requirements.
Precision Shaft Turning: Stepped diameters, bearing seats, and locating shoulders are machined with attention to their alignment.
Complex Gear and Shaft Features: We can review designs involving multiple gear sections, grooves, and spline connections for suitable machining processes.
Material and Heat Treatment Options: Carbon steel, alloy steel, stainless steel, and other specified materials can be selected based on strength, wear, and operating requirements.
Drawing-Based Manufacturing: We support custom shaft manufacturing from prototypes to production quantities, with critical dimensions inspected against customer specifications.

Gearboxes & Transmission Systems

Custom splined shafts for torque transmission, gear connections, and mechanical drive assemblies.

Industrial Robotics

Precision shaft components for robotic drive systems and mechanical transmission assemblies.

Industrial Automation

Custom shaft and spline connections for automated equipment and rotating machinery.

ATV & Off-Road Equipment

Custom transmission shaft components manufactured according to customer-supplied engineering specifications.

Agricultural & Industrial Machinery

Splined transmission components for suitable mechanical drive and power transfer systems.
