Flange Adapter Plate

Product Type: Custom CNC Turned Flange Adapter

Materials: Aluminum Alloys, Stainless Steel, Brass, Copper, Carbon Steel, or as Specified

Manufacturing Process: CNC Turning, Knurling, Facing, Grooving, Drilling as Required

Key Features: Stepped Cylindrical Profile, Diamond Knurling, Flat End Face, Locating Shoulder

Dimensions: Customized to Customer Drawings

Tolerance: According to Drawing Requirements; ±0.01 mm Where Feasible After Review

Surface Roughness: Ra 0.8 μm Available on Specified Machined Surfaces

Surface Finish: As Machined, Polishing, Anodizing, Plating, or Other Material-Compatible Finishes

Production: Prototypes to Production Quantities

Inspection: Dimensional and Visual Inspection According to Drawings

Drawing Formats: 2D DWG, PDF, 3D STEP, STP

Precision CNC Turning: Stepped diameters, shoulders, and end faces are machined according to the specified dimensions for proper component fit.

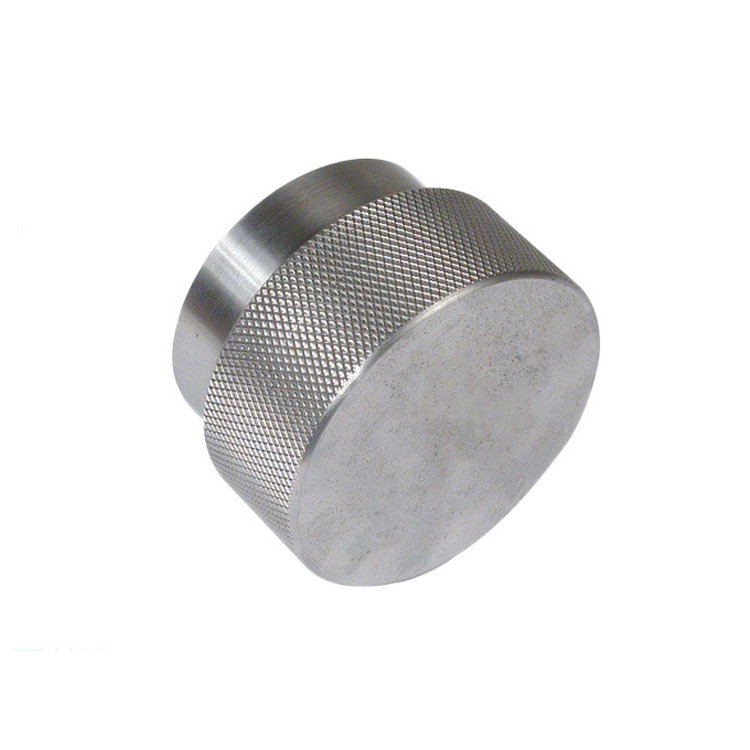

Consistent Knurling: The diamond knurled surface provides a textured gripping area. We select the knurl pitch and machining method based on the material and part diameter.
Controlled Locating Features: Particular attention is given to the smooth cylindrical section and shoulder dimensions where the part contacts mating components.
Custom Material Options: Available in aluminum, stainless steel, brass, copper, and other specified metals with suitable surface treatments.
Made to Your Drawings: Knurl patterns, flange dimensions, surface finishes, and tolerances can be customized for prototype or production orders.

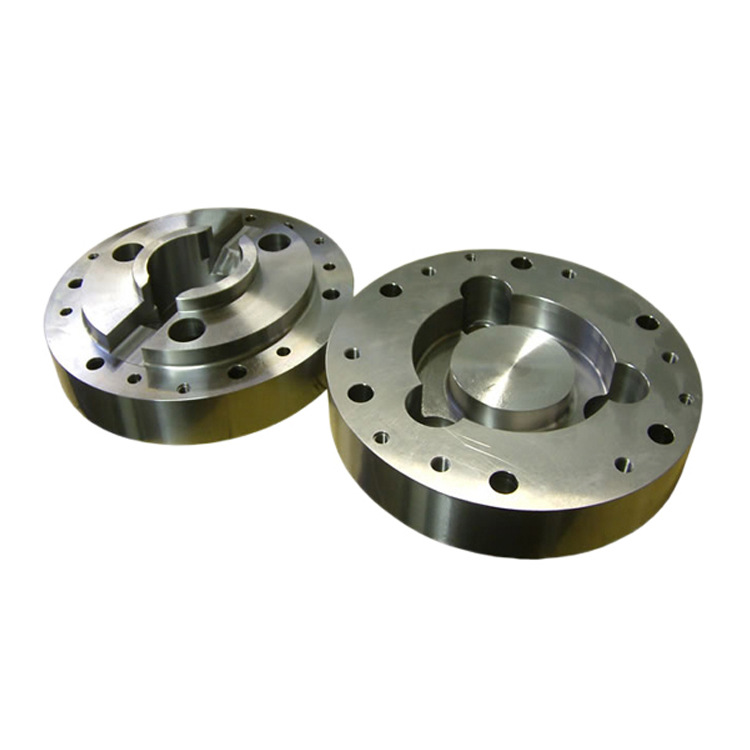

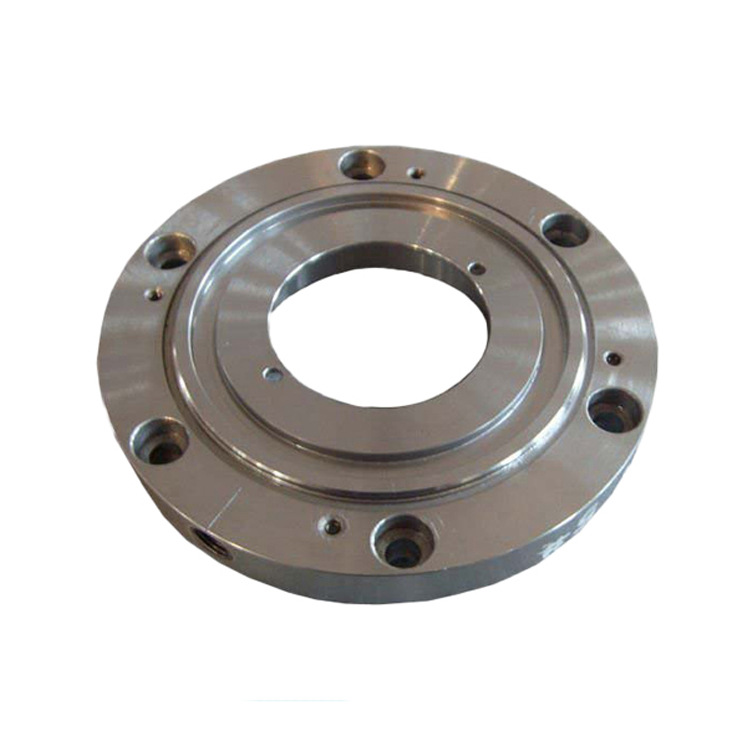

Hofengfab manufactures custom CNC machined adapter plates for industrial automation, robotics, motors, gearboxes, and precision equipment. We machine aluminum and stainless steel adapter plates with custom mounting holes, threaded features, locating surfaces, and different bolt patterns based on your drawings.

Request a Custom CNC Machining Quote

Need a custom flange adapter or precision turned component?

Please send us your 2D DWG engineering drawings or 3D STEP CAD files

Email: info@hofengfab.com

Website: https://www.hofengfab.com

Learn more about Hofengfab custom CNC machining.
