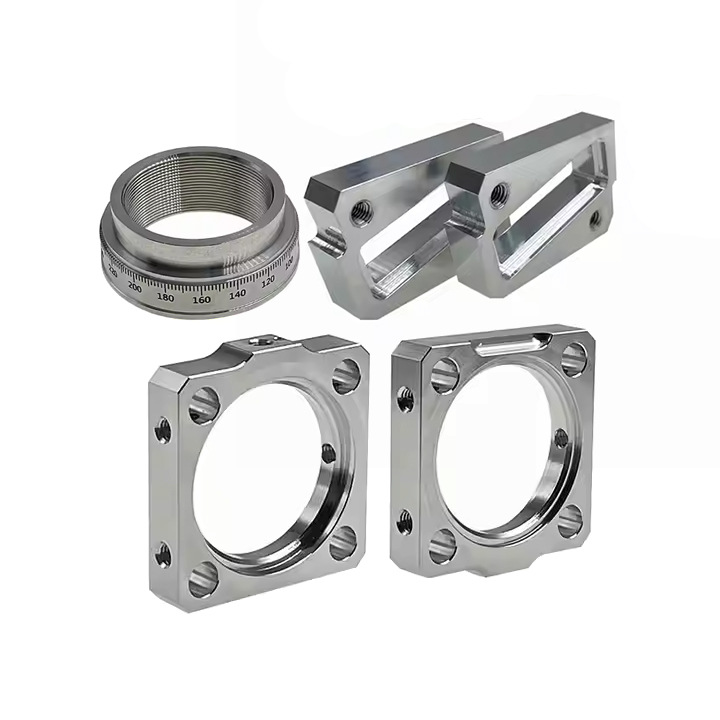

Gearbox Adapter Plate

Materials: Stainless Steel 303/304, Aluminum Alloys, Carbon Steel, Brass, Titanium, or as Specified

Manufacturing Process: CNC Milling, CNC Turning, Drilling, Boring, Tapping

Key Features: Center Bores, Mounting Holes, Threaded Features, Locating Shoulders, Custom Slots

Dimensions: Customized to Customer Drawings

Tolerance: According to Drawing Requirements; ±0.01 mm Where Feasible After Review

Surface Roughness: Ra 0.8 μm Available Where Specified and Technically Feasible

Surface Finish: As Machined, Polishing, Passivation, Anodizing, Plating, and Other Material-Compatible Finishes

Inspection: Dimensional Inspection Based on Customer Drawings

Production: Prototypes to Production Quantities

Drawing Formats: 2D DWG, PDF, 3D STEP, STP

Accurate Center Alignment: The center bore and mounting pattern are machined with attention to their relative positions for proper motor and gearbox installation.
Custom Mounting Features: Bolt patterns, threaded holes, locating shoulders, stepped bores, and slots can be manufactured to your design.
CNC Milling and Turning: We select suitable machining sequences to control circular locating features, flat mounting faces, and hole positions.
Stainless Steel Options: SS303 and SS304 are available for custom machined gearbox components, alongside aluminum and other specified materials.
Drawing-Based Production: We manufacture precision gearbox adapter components for prototypes and repeat production, with critical dimensions inspected against customer requirements.

Have a gearbox adapter or other precision component to manufacture?

We manufacture parts based on actual engineering drawings and CAD models, not AI-generated concept images alone.
