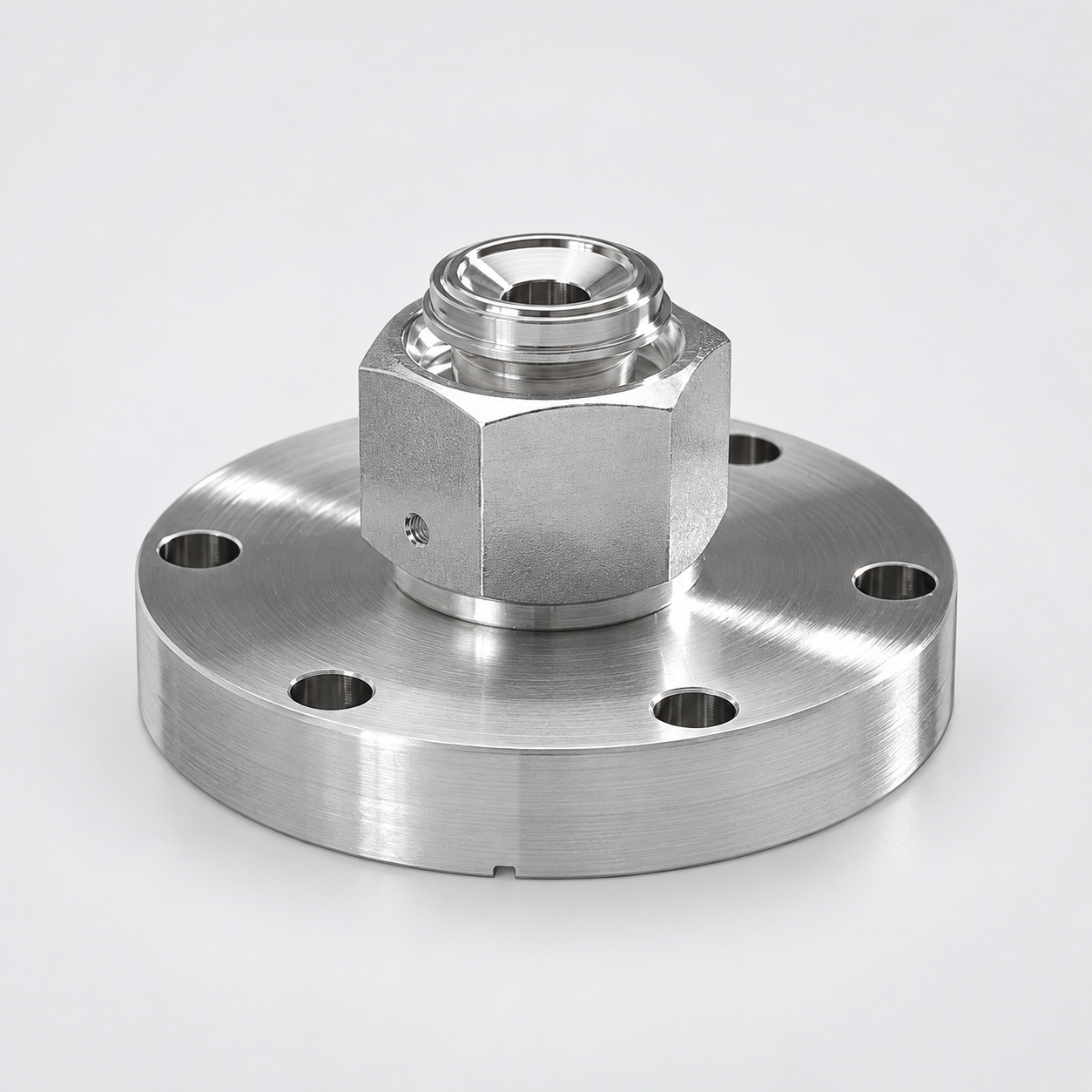

Robot Flange Adapter Plate

Material: Aluminum Alloys, Stainless Steel, Titanium, Brass, Copper, Carbon Steel, or as Specified

Manufacturing Process: CNC Turning, CNC Milling, Drilling, Boring, Tapping

Key Features: Center Bore, Locating Surfaces, Mounting Holes, Threaded Holes

Tolerance: Typically ±0.01 mm for specified critical dimensions, subject to drawing review

Maximum Diameter: Customized; turning capacity up to 400 mm

Maximum Length: Customized; turning capacity up to 700 mm

Surface Finish: As Machined, Anodizing, Sandblasting, Plating, and Other Specified Finishes

Inspection: Dimensional Inspection According to Drawings

Production Volume: Prototypes to Production Quantities

Drawing Formats: 2D DWG, PDF, 3D STEP, STP

Accurate Tool Alignment: The center bore, locating surfaces, and bolt pattern are machined with attention to their relative positions for consistent robotic tool installation.
Custom Robot Interfaces: We machine different flange diameters, bolt circles, locating shoulders, threaded holes, and mounting features based on your robot and end effector design.
CNC Turning and Milling: Combining turning and milling helps maintain alignment between circular locating features and flat mounting surfaces.
Material Flexibility: Available in aluminum, stainless steel, titanium, and other specified materials to meet different weight, strength, and application requirements.
Drawing-Based Manufacturing: We produce custom robot flange components from prototypes to production batches, with dimensions and tolerances controlled according to your drawings.

Hofengfab manufactures custom CNC machined components for industrial automation, robotics, motors, gearboxes, and precision equipment. We work with aluminum alloys, titanium alloys, stainless steel, brass, copper, carbon steel, carbon fiber, and other specified materials, selecting suitable machining processes for each application.

From precision mounting holes and threaded features to complex locating surfaces and custom profiles, we manufacture parts based on your drawings.

Need a custom robot flange adapter plate?

Send us your 2D DWG or 3D STEP drawings, along with the material, quantity, and tolerance requirements. We can review your design and provide a quotation.
