Need a custom precision gear shaft or transmission component?
Please send us your 2D DWG engineering drawings or 3D STEP CAD files,
Email: info@hofengfab.com
Website: www.hofengfab.com
Learn more about our custom CNC machining services.

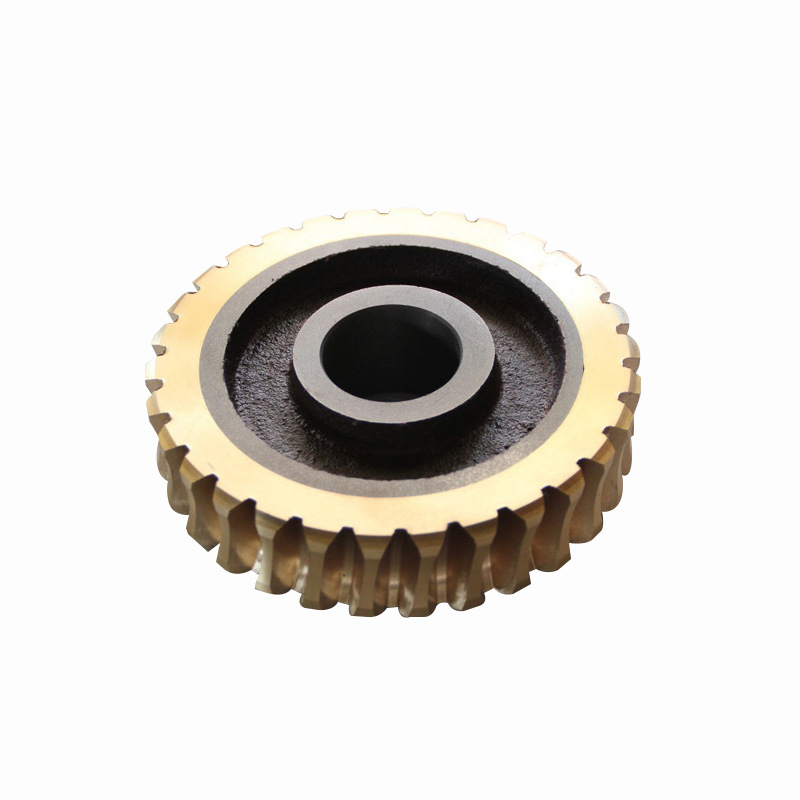

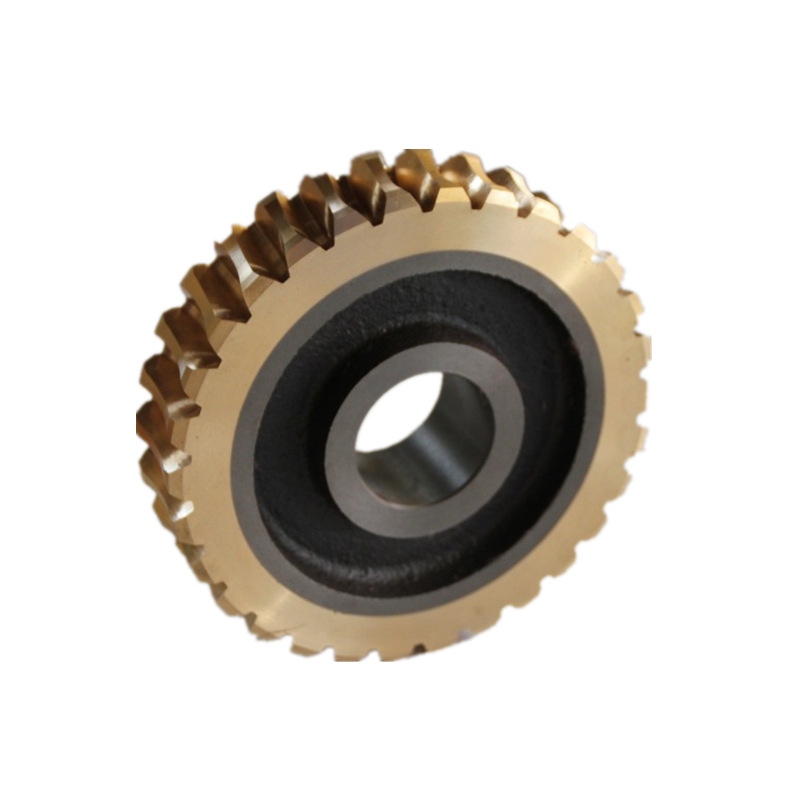

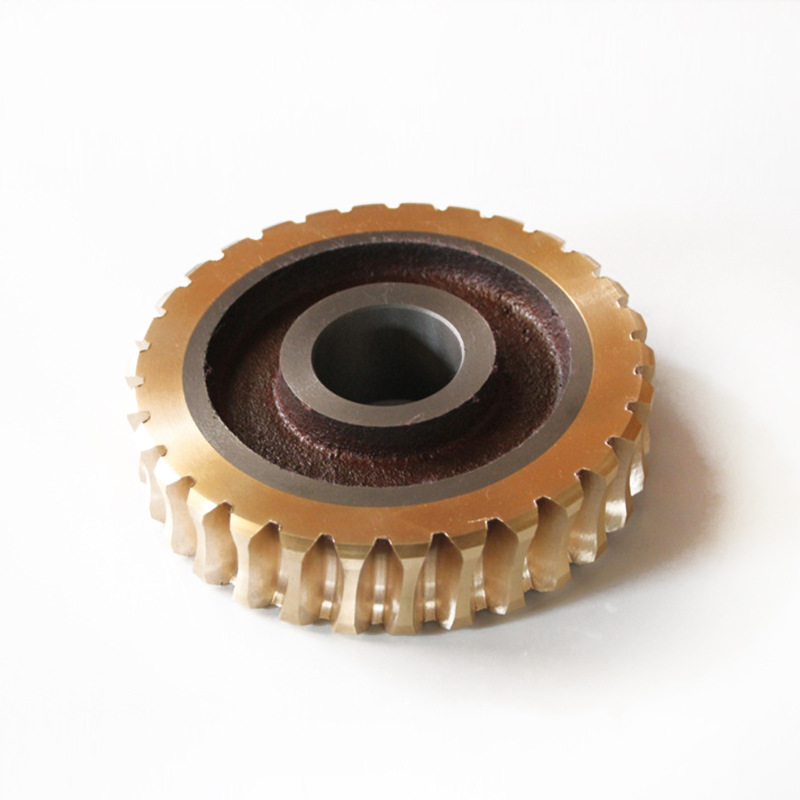

Precision Gear Shaft
Materials: Bronze, Brass, Carbon Steel, Alloy Steel, Stainless Steel, Aluminum Alloys, or as Specified
Manufacturing Processes: CNC Turning, Milling, Boring, Drilling, Gear Machining as Required
Key Features: Gear Teeth, Precision Center Bores, Gear Hubs, Locating Shoulders, Optional Keyways and Mounting Holes
Gear Diameter: Customized to Engineering Drawings
Bore Diameter: Customized to Engineering Drawings
Gear Tooth Profile: According to Customer Gear Specifications
Tolerance: According to Drawing Requirements and Critical Fits
Surface Finish: As Machined, Polishing, Heat Treatment, Plating, or Other Suitable Processes
Inspection: Dimensional Inspection, CMM Measurement Where Applicable, Gear Tooth Inspection as Required
Production: Prototypes to Production Quantities
Drawing Formats: 2D DWG, 3D STEP / STP
- Precision Gear and Hub Machining: We pay attention to the relationship between the center bore, gear hub, and rotation axis to help ensure proper shaft assembly.
- Custom Gear Geometry: Gear dimensions, tooth profiles, hub features, and bores can be manufactured to customer specifications after process review.
- Material Options: Bronze, brass, steel, and other specified materials are available depending on wear, strength, and operating conditions.
- Bore and Locating Features: Precision bores, shoulders, keyways, and mounting features can be added to match the mating shaft or transmission assembly.
- Drawing-Based Manufacturing: We manufacture custom gear shafts and transmission components from prototypes to production quantities according to customer engineering drawings.
