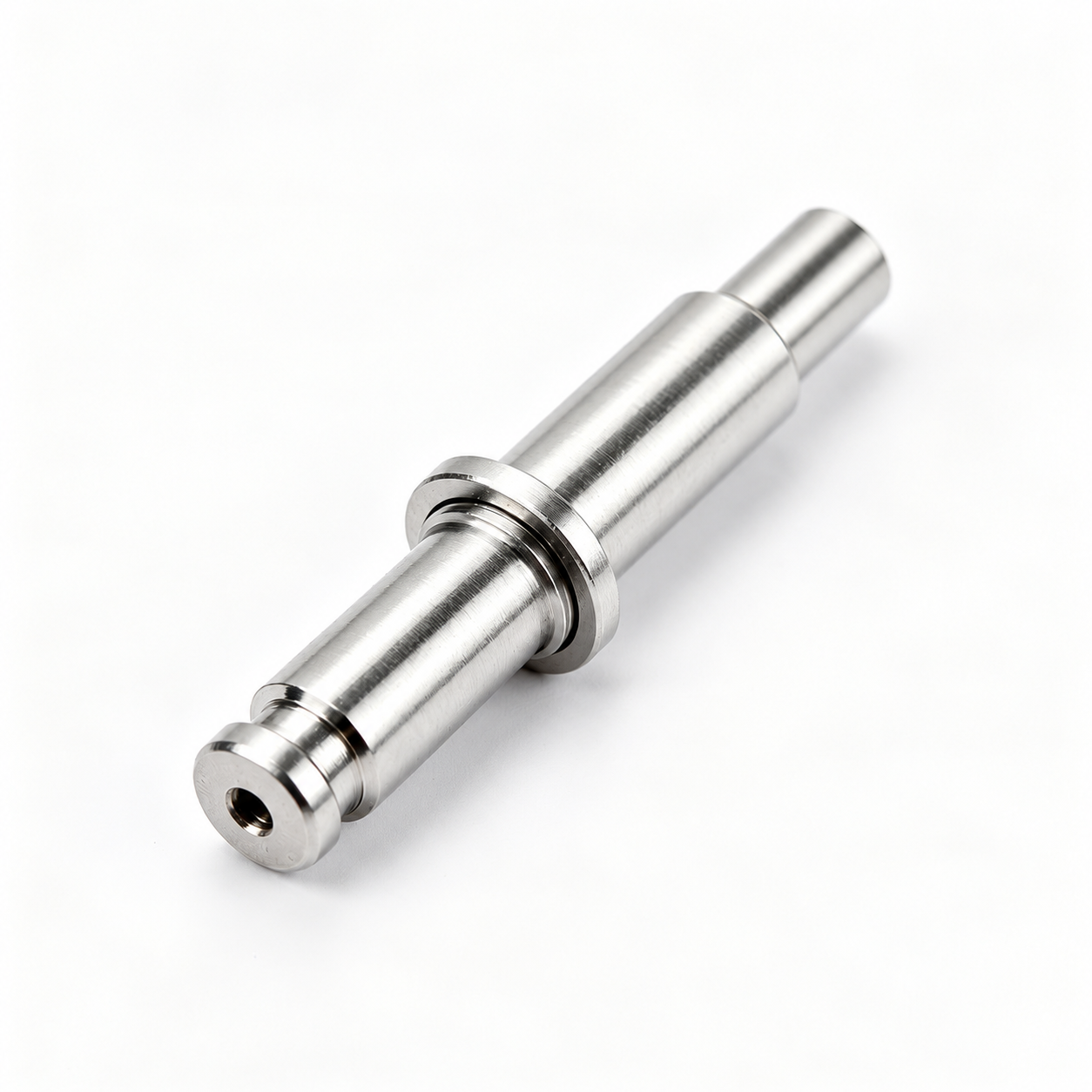

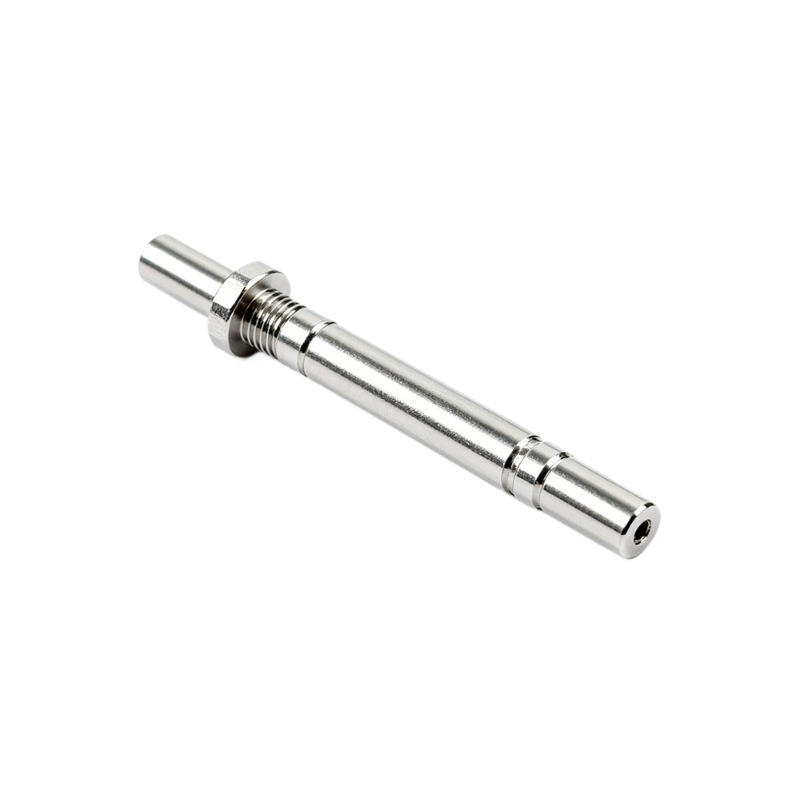

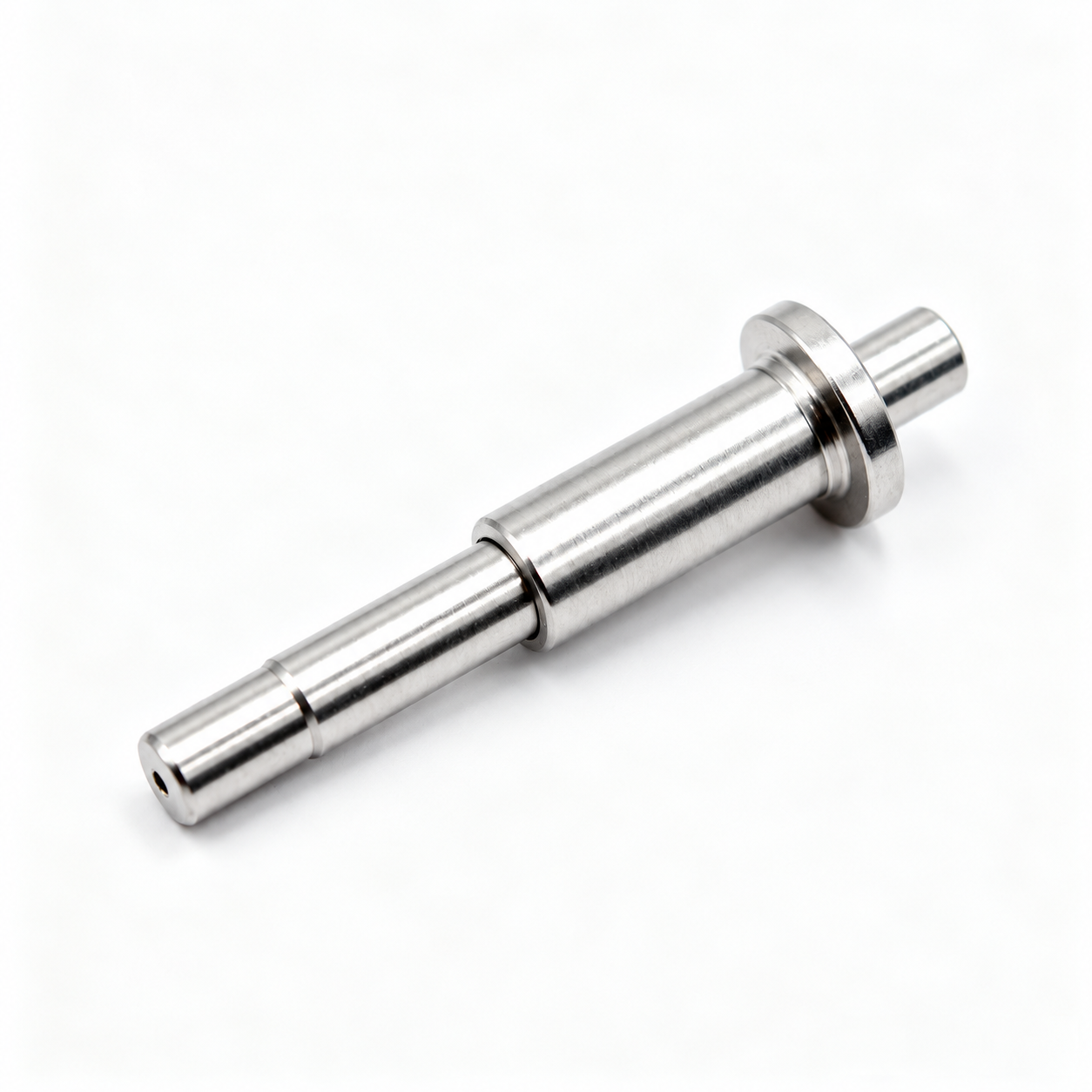

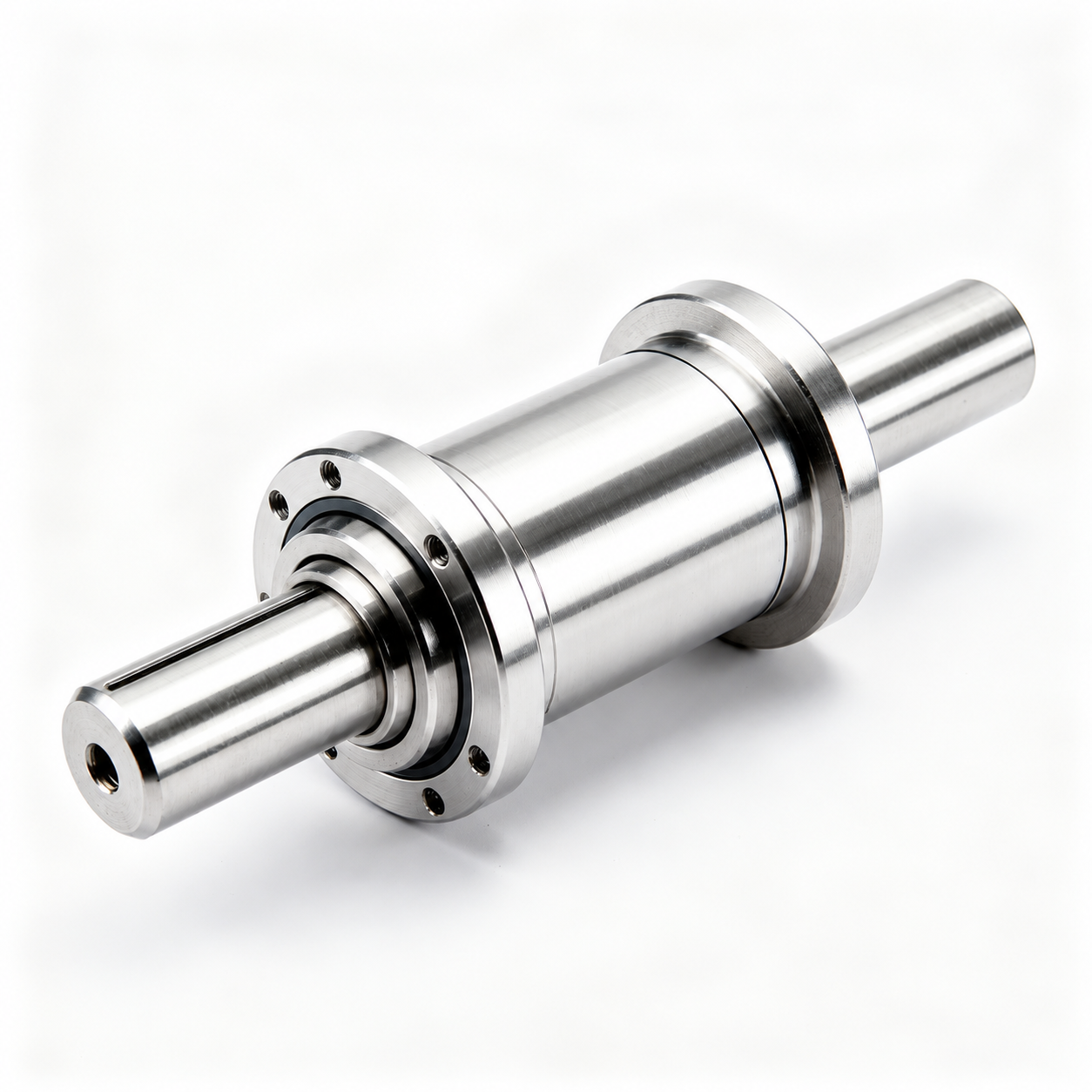

Precision Servo Motor Shaft

Materials: Stainless Steel 303/304/316, Carbon Steel, Alloy Steel, Aluminum Alloys, Titanium, or as Specified

Manufacturing Processes: CNC Turning, Milling, Drilling, Grooving, Threading

Key Features: Stepped Diameters, Bearing Seats, Shaft Shoulders, Grooves, End Holes, Optional Keyways

Shaft Diameter: Customized to Engineering Drawings

Shaft Length: Customized to Engineering Drawings

Tolerance: According to Customer Drawings and Critical Fit Requirements

Concentricity / Runout: Controlled According to Specified Datums and Tolerances

Surface Roughness: As Specified; Ra 0.8 μm Available Where Technically Feasible

Surface Finishes: As Machined, Polishing, Passivation, Plating, and Other Material-Compatible Treatments

Production: Prototypes to Production Quantities

Inspection: Diameter, Length, Runout, Surface Finish, and Other Specified Features

Drawing Formats: 2D DWG, 3D STEP / STP

Precision Shaft Turning: Stepped diameters and shoulders are machined to customer specifications, with special attention to bearing seats and coupling surfaces.
Concentricity Control: We plan turning operations to minimize setup changes and help maintain alignment between critical shaft diameters.
Custom Shaft Features: Keyways, grooves, threads, end holes, and locating shoulders can be added according to your design.
Material Flexibility: Available in stainless steel, carbon steel, alloy steel, aluminum, titanium, and other specified materials depending on load, wear, and operating conditions.
Made to Your Drawings: We manufacture custom electric motor shafts for prototypes and production batches, with critical dimensions inspected to drawing requirements.

Quality Inspection & CMM Measureme

For precision motor shafts, dimensional accuracy is important, especially at bearing seats, shaft shoulders, and coupling sections.

At Hofengfab, we use Coordinate Measuring Machines (CMM) to inspect critical dimensions and geometric features according to customer drawings. We pay particular attention to diameter consistency, feature positions, and alignment between mating surfaces.

For parts with tighter tolerances, we can review the inspection requirements before machining and provide dimensional inspection reports upon request.

Need a custom CNC machined motor shaft for your project?

Please send us your 2D DWG engineering drawings or 3D STEP CAD files.
