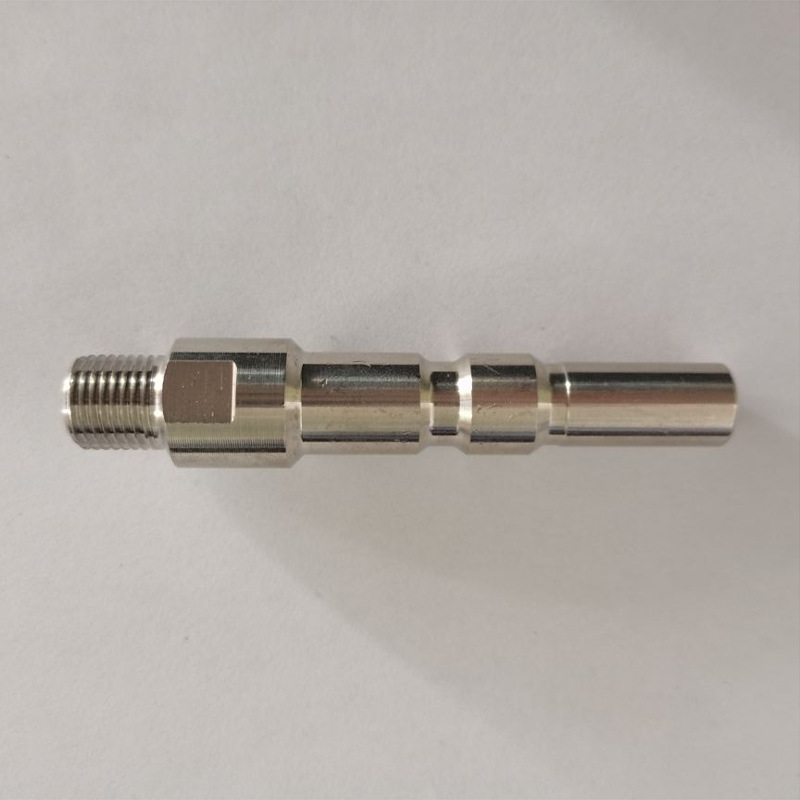

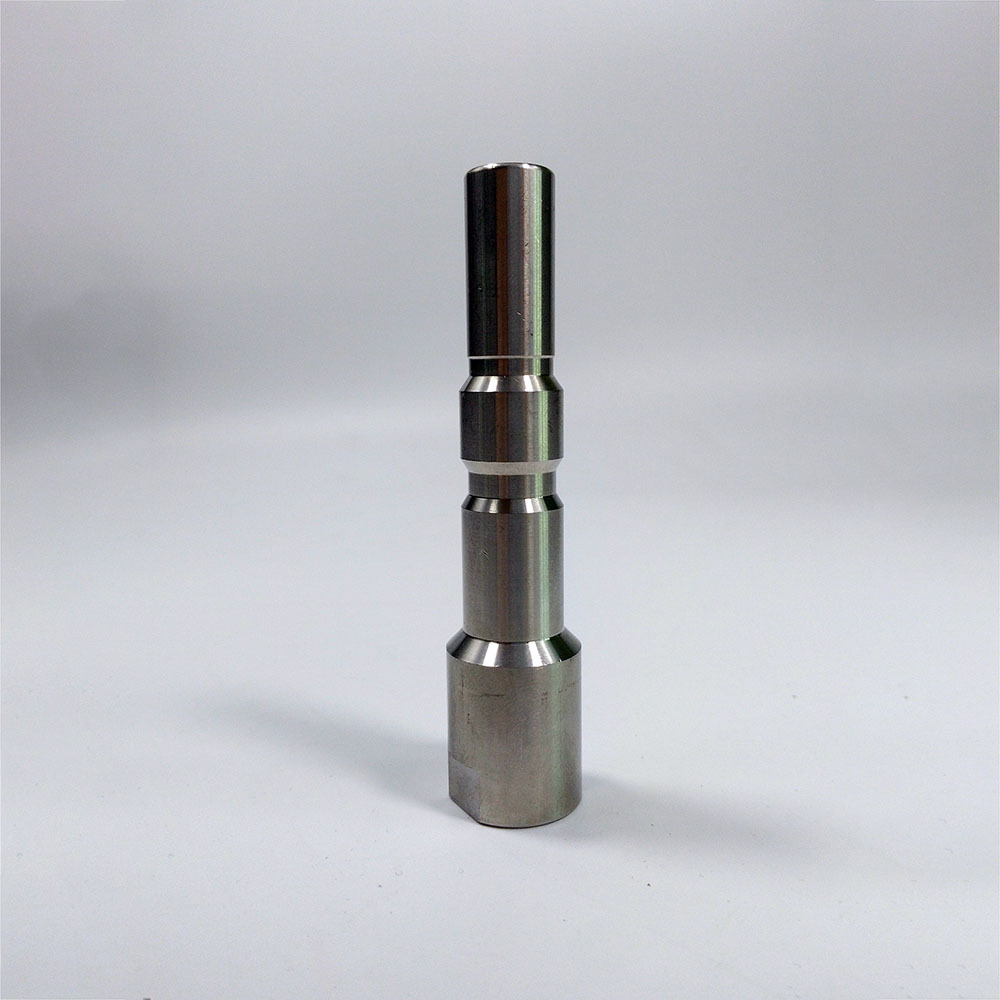

Custom CNC Stepped Shafts

Materials: Stainless Steel, Carbon Steel, Alloy Steel, Aluminum Alloys, Brass, Copper, Titanium, or as Specified

Manufacturing Processes: CNC Turning, Milling, Drilling, Threading, Grooving

Key Features: Stepped Diameters, Shaft Shoulders, Threaded Ends, Grooves, Locating Sections

Diameter: Customized to Engineering Drawings

Length: Customized to Engineering Drawings

Threads: Metric, Unified, Pipe Threads, or Custom Specifications as Required

Tolerance: According to Customer Drawings and Critical Fit Requirements

Surface Roughness: According to Drawing Requirements

Surface Finishes: As Machined, Polishing, Passivation, Anodizing, Plating, and Other Material-Compatible Finishes

Inspection: Dimensional Inspection, CMM Where Applicable, Runout Measurement as Required

Production: Prototypes to Production Quantities

Drawing Formats: 2D DWG, 3D STEP / STP

Precision CNC Turning: Multiple stepped diameters and shoulders are machined to the specified dimensions for accurate component fit.
Custom Threaded Features: External threads, internal threads, grooves, and locating sections can be added according to your engineering drawings.
Dimensional Alignment: We pay attention to the relationship between critical diameters and shoulders to reduce assembly problems.
Multiple Material Options: Available in stainless steel, aluminum, carbon steel, brass, copper, titanium, and other specified materials.
Flexible Applications: Custom stepped shafts can be designed for electric motors, robotic equipment, motion control systems, high-pressure cleaning equipment, and industrial assemblies.
Drawing-Based Manufacturing: We manufacture prototypes and production quantities based on customer-supplied 2D DWG or 3D STEP files.

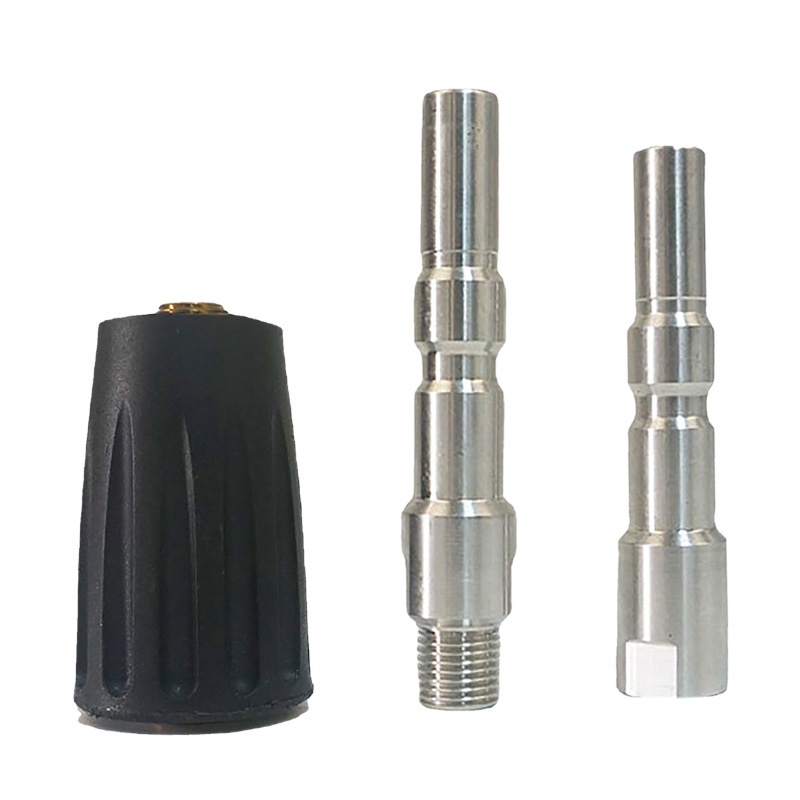

Our custom CNC stepped shafts can be manufactured for electric motors, industrial robotics, motion control systems, automation equipment, and high-pressure cleaning equipment.

Depending on the application, these precision turned components can feature stepped diameters, threaded ends, locating shoulders, grooves, and custom connection profiles.

At Hofengfab, we manufacture CNC machined shafts based on customer-supplied engineering drawings. Materials, dimensions, tolerances, and surface finishes are adjusted to meet the specific assembly and operating requirements.

Whether you need a motor shaft, a precision locating shaft, or a custom threaded connector, we can manufacture the required geometry according to your design.

Have a custom CNC machining project?

Send us your 2D DWG engineering drawings or 3D STEP CAD files,

Email: info@hofengfab.com
Website: www.hofengfab.com
