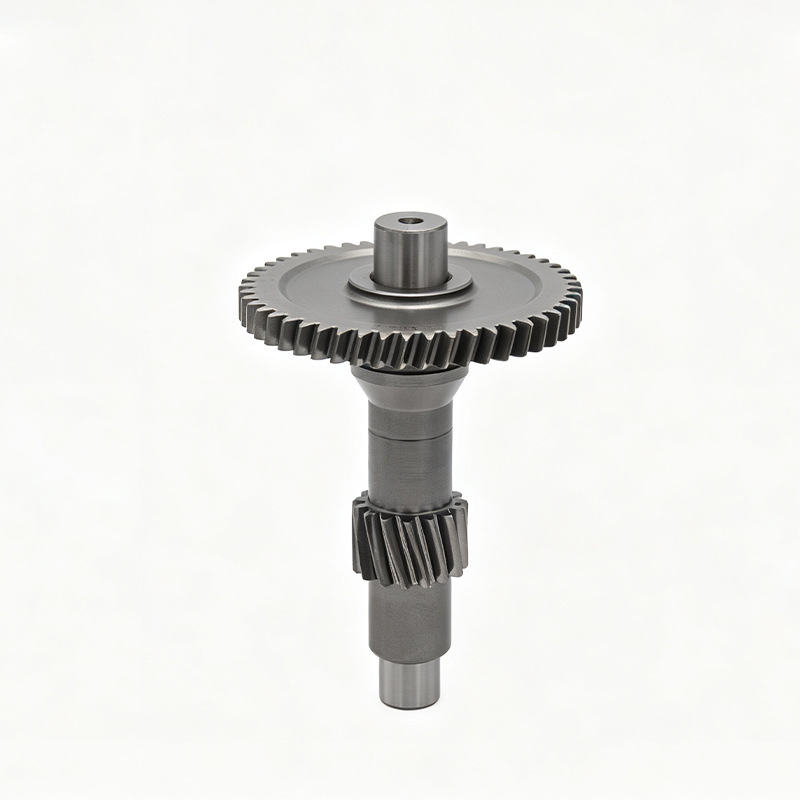

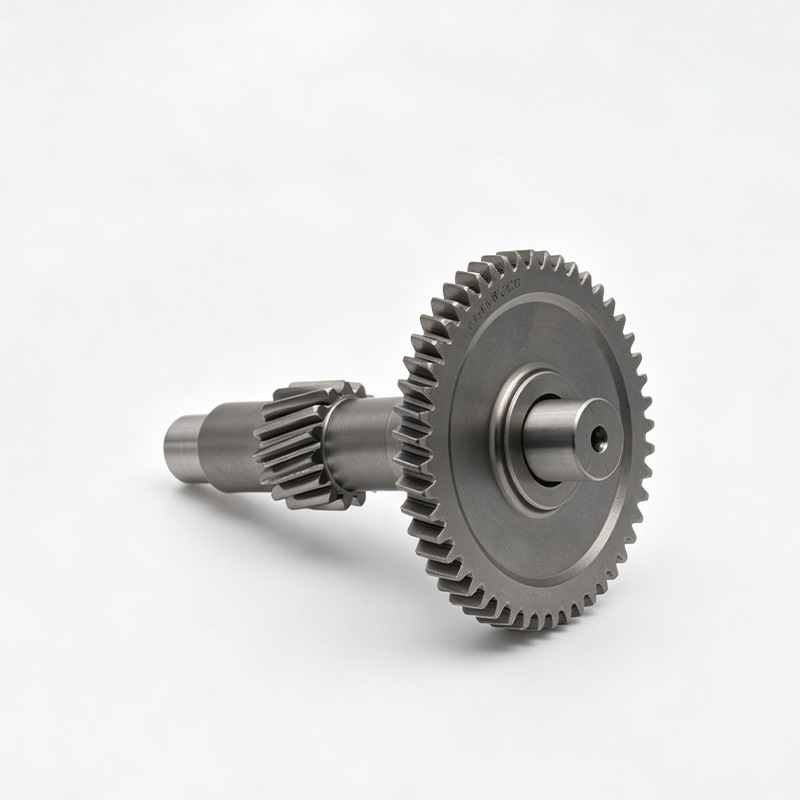

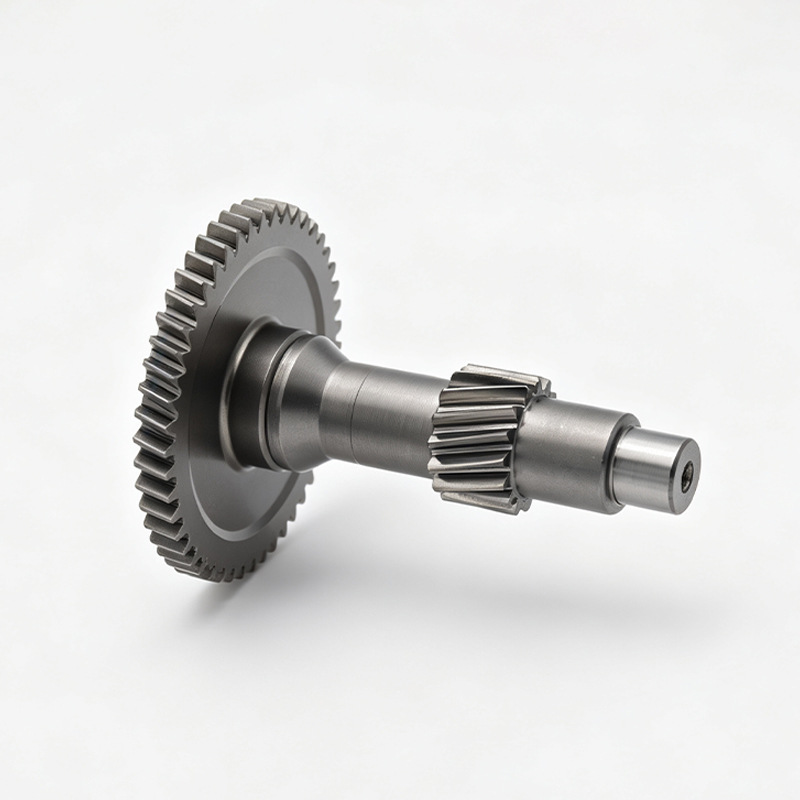

Precision Transmission Shaft

Materials: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum Alloys, Brass, Titanium, or as Specified

Manufacturing Processes: CNC Turning, Milling, Drilling, Boring, Gear Machining as Required

Key Features: Large Gear, Helical Pinion, Stepped Shaft, Bearing Seats, Locating Shoulders, End-Face Hole

Shaft Diameter: Customized to Engineering Drawings

Shaft Length: Customized to Engineering Drawings

Gear Specifications: Module, Tooth Count, Helix Angle, and Tooth Profile According to Drawings

Tolerance: According to Customer Drawings and Critical Fit Requirements

Concentricity / Runout: According to Specified Datums and Geometric Tolerances

Surface Finishes: As Machined, Polishing, Heat Treatment, Plating, and Other Suitable Treatments

Inspection: Dimensional Inspection, CMM Where Applicable, Runout and Gear Feature Inspection as Required

Production: Prototypes to Production Quantities

Drawing Formats: 2D DWG, 3D STEP / STP

Precision Shaft Machining: Stepped diameters, shoulders, and bearing seats are machined to the specified fit requirements.
Custom Gear Features: Gear tooth geometry, shaft profiles, and locating features can be manufactured according to customer drawings and process feasibility.
Concentricity Control: We pay attention to the relationship between the gear sections and shaft axis to reduce assembly and running issues.
Material and Heat Treatment Options: Carbon steel, alloy steel, stainless steel, and other materials can be selected based on load, wear, and operating conditions.
Drawing-Based Production: We manufacture custom transmission shafts for prototypes and production batches, with critical features inspected according to drawing requirements.

Gearboxes & Speed Reducers

Custom gear shafts and transmission components for speed reduction and mechanical drive assemblies.

Industrial Robotics

Precision drive shafts and gear components for robotic transmission mechanisms.

Motors & Power Transmission

Custom shaft assemblies for transferring rotational motion and torque between mechanical components.

Industrial Automation

Machined transmission shafts for automated machinery and precision mechanical systems.

ATV & Off-Road Equipment

Custom transmission shaft components manufactured to customer specifications for suitable vehicle drive systems.

Need a custom transmission shaft or CNC machined drive component?
