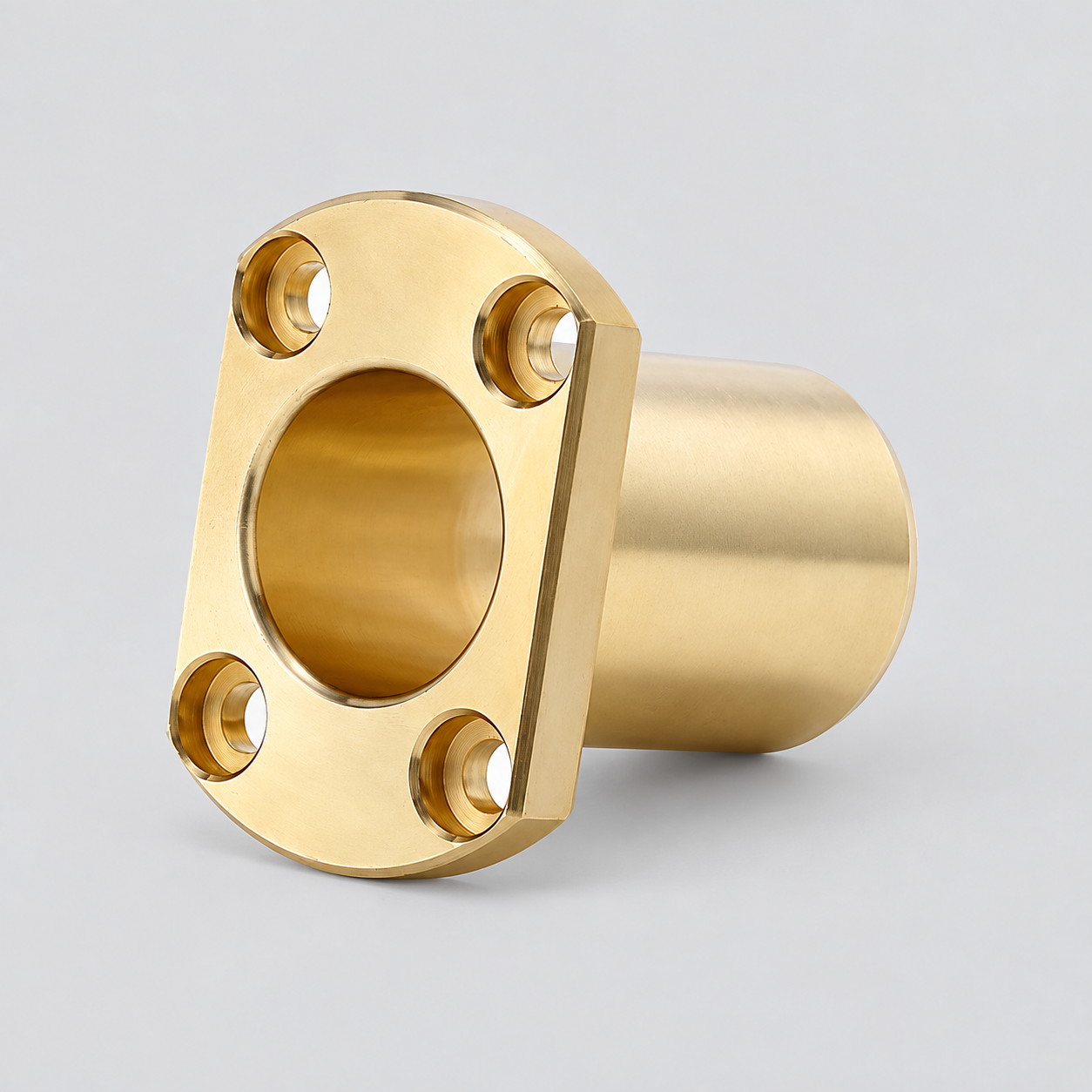

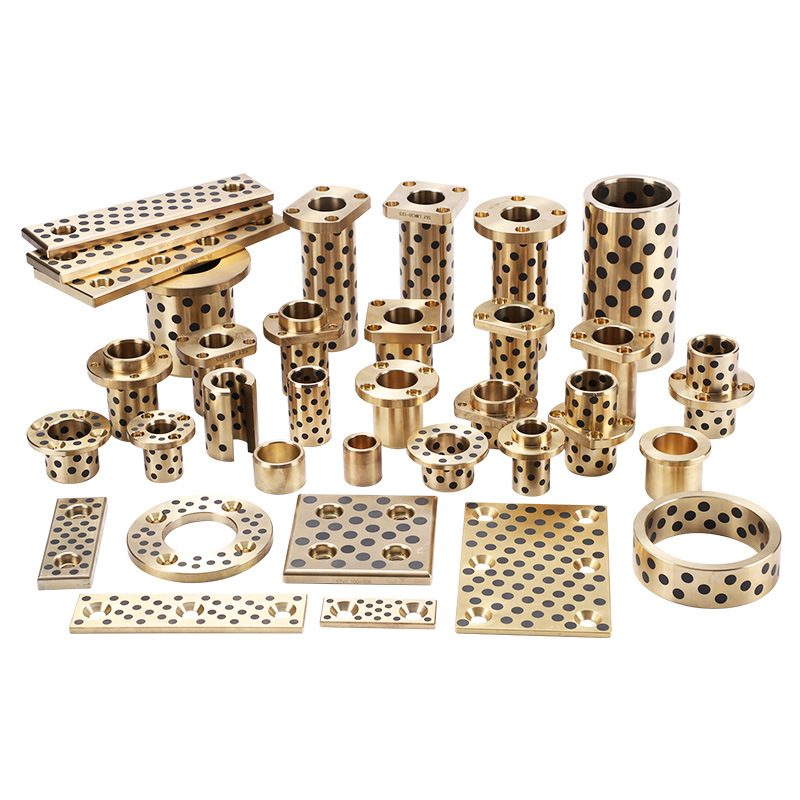

Custom Bronze Flanged Bushings

Materials: C95400 Aluminum Bronze, C86300 Manganese Bronze, C93200 Bearing Bronze, or Other Specified Alloys

Manufacturing Processes: CNC Turning, Boring, Drilling, Grooving, Milling as Required

Available Designs: Flanged Sleeve Bushings, Graphite Plugged Bushings, Plain Bronze Bushings, Custom Bearing Sleeves

Outer Diameter: Customized to Customer Drawings

Inner Diameter: Customized to Customer Drawings

Flange Diameter: Customized to Application Requirements

Length: Customized to Customer Drawings

Optional Features: Graphite Plugs, Lubrication Holes, Oil Grooves, Mounting Holes, Chamfers

Tolerance: According to Customer Drawings and Critical Fit Requirements

Surface Finish: As Machined or According to Customer Specifications

Inspection: Bore Diameter, Outside Diameter, Flange Thickness, Concentricity, and Other Specified Features

Production: Prototypes to Production Quantities

Drawing Formats: 2D DWG, 3D STEP / STP

Precision CNC Machining: Inner bores, outside diameters, and flange faces are machined according to the required shaft and housing fits.
Optional Graphite Lubrication: Solid lubricant plugs can be incorporated into suitable bronze bushing designs to support sliding contact under specified operating conditions.
Custom Flange Geometry: Flange thickness, diameter, mounting holes, and locating features can be adjusted to match different mechanical assemblies.
Bronze Alloy Options: Material grades can be selected based on operating load, shaft material, lubrication, and wear conditions.
Drawing-Based Manufacturing: We support custom bushing projects from prototypes to production quantities using customer-supplied DWG or STEP files.

Industrial Machinery

Flanged bronze bushings for sliding mechanisms, shaft supports, and mechanical assemblies.

Automation Equipment

Custom guide bushings for reciprocating and positioning mechanisms.

Mold & Die Equipment

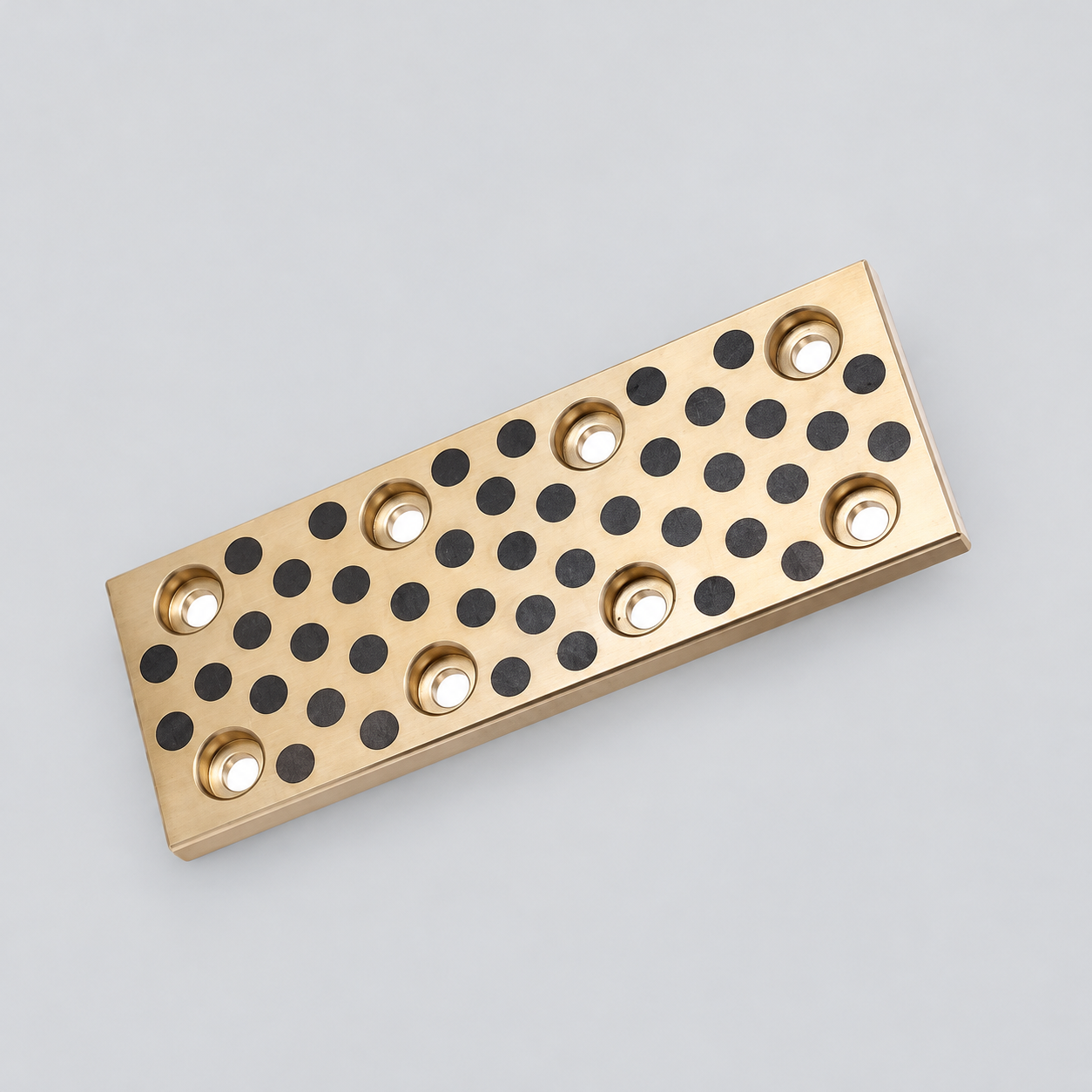

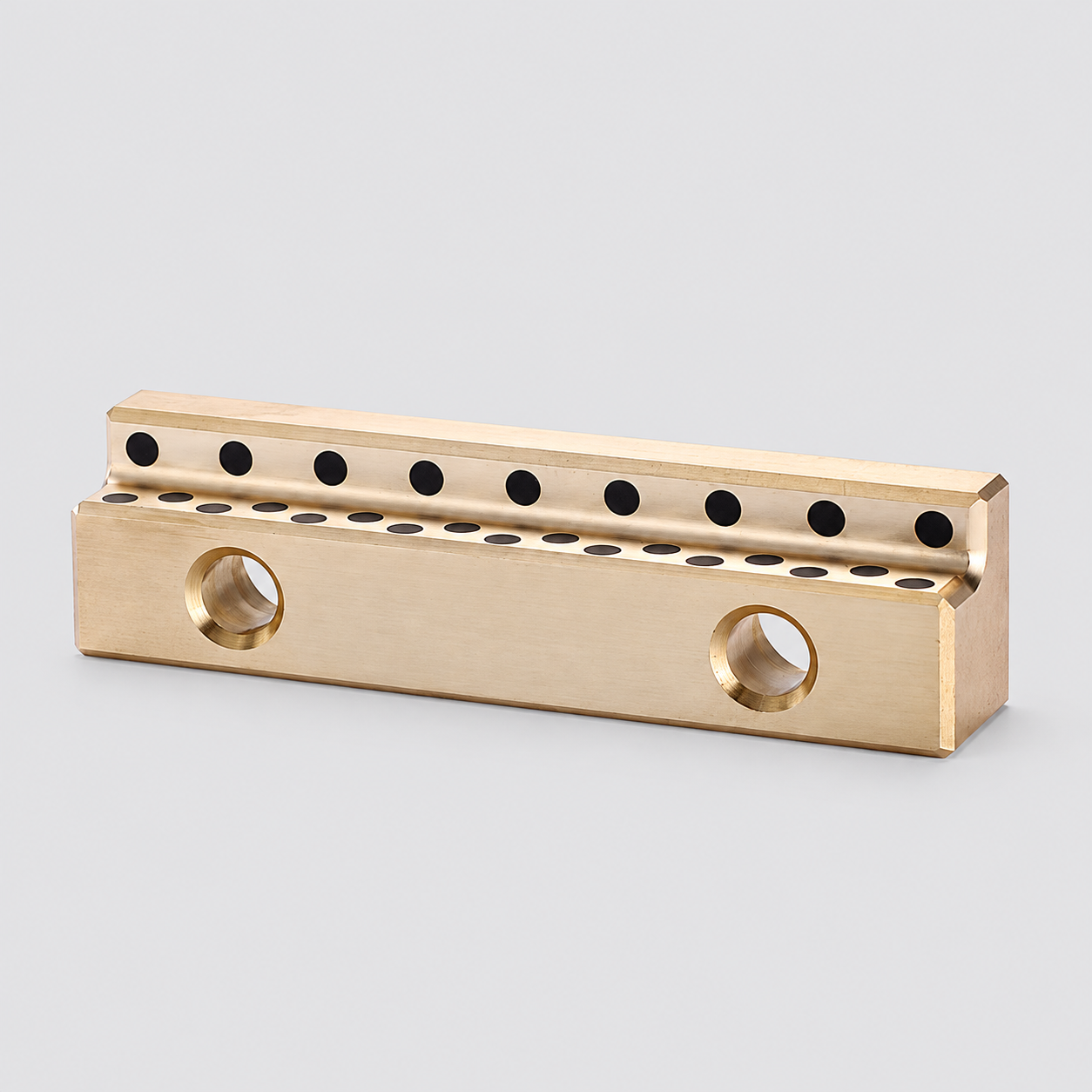

Graphite plugged bronze bushings and wear components for suitable guided sliding assemblies.

Construction & Heavy Equipment

Custom bronze bearing sleeves for pivot points and moving mechanical connections.

Robotics & Motion Systems

Custom bushings for suitable mechanical joints and low-speed sliding applications.

Looking for custom bronze flanged bushings or graphite plugged bearing components?
