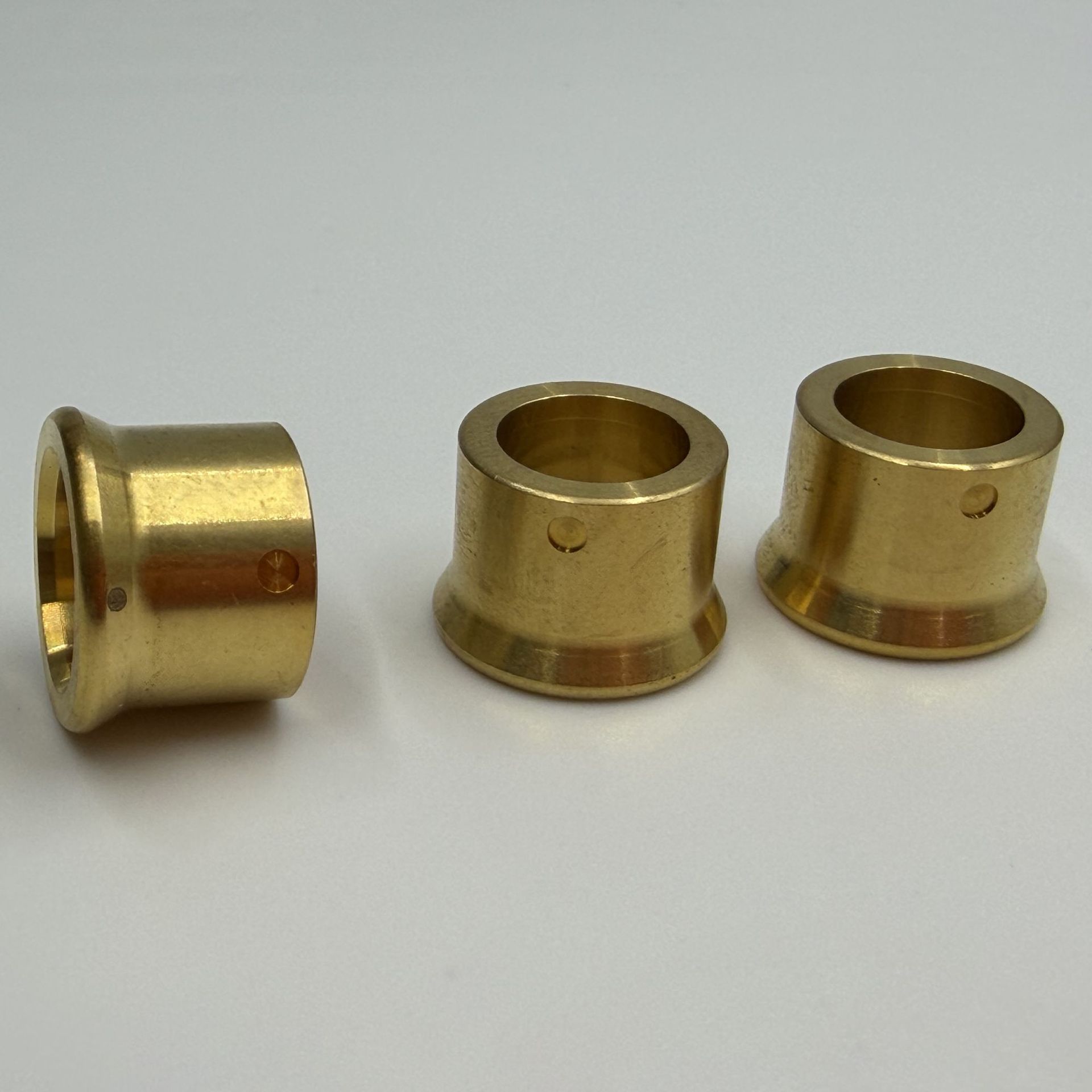

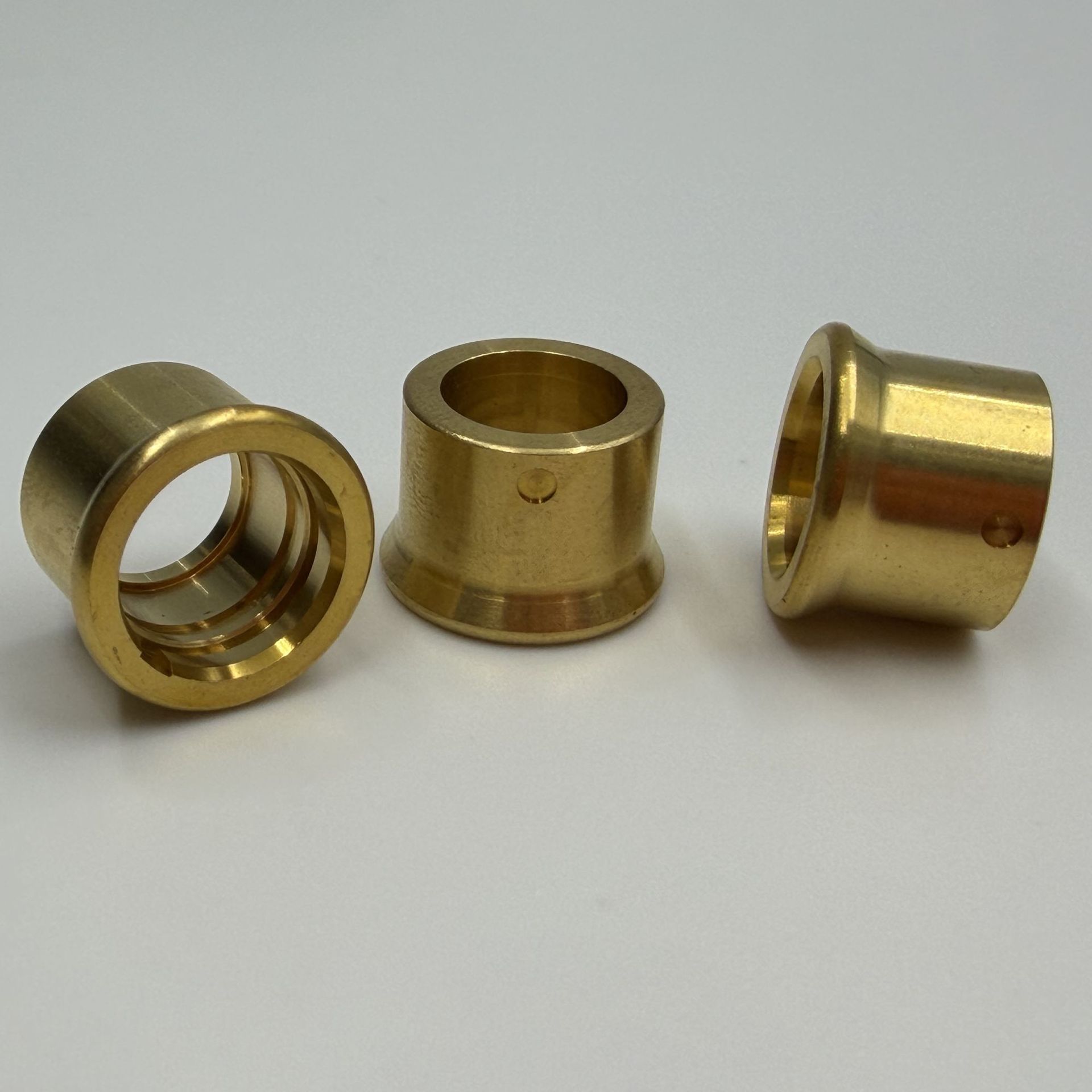

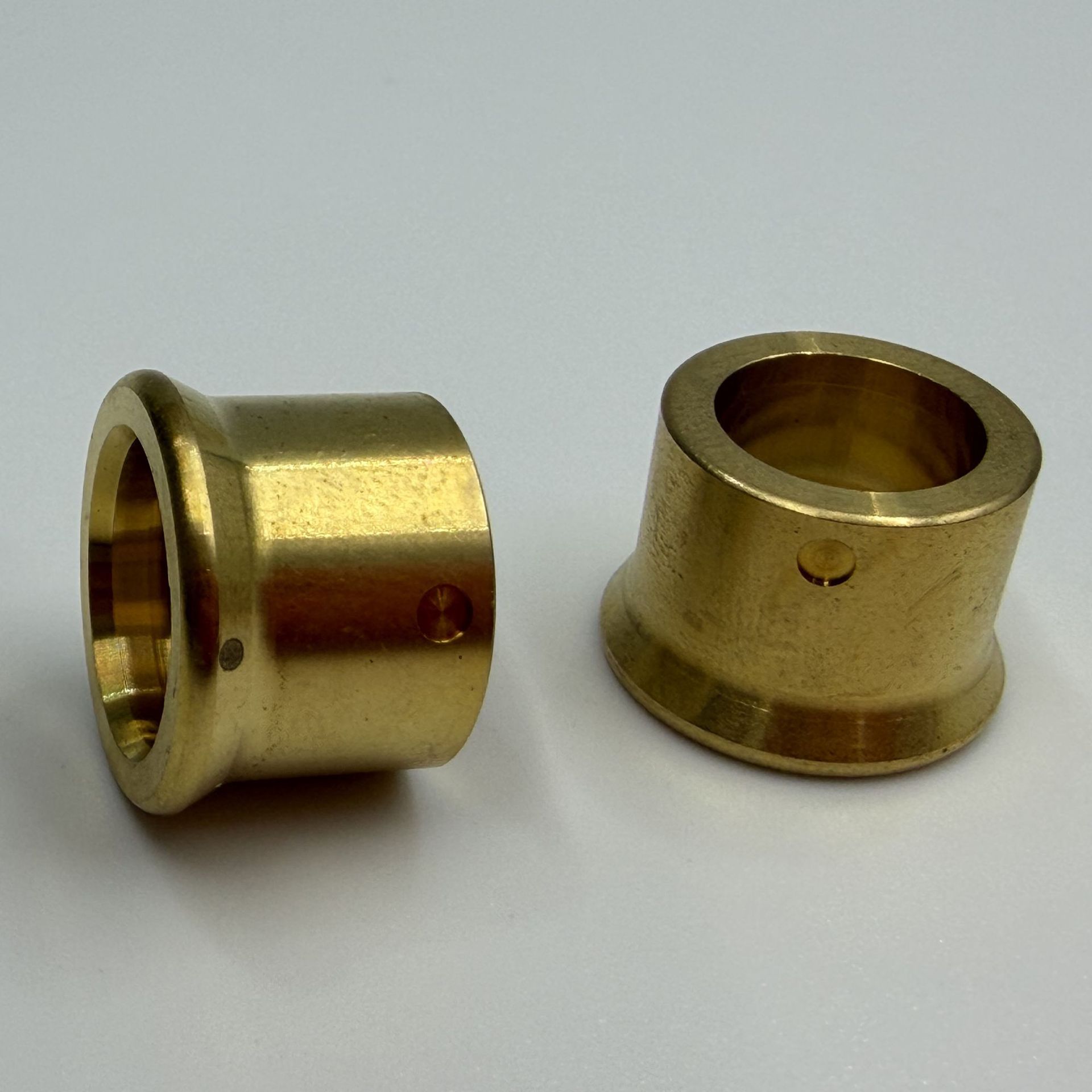

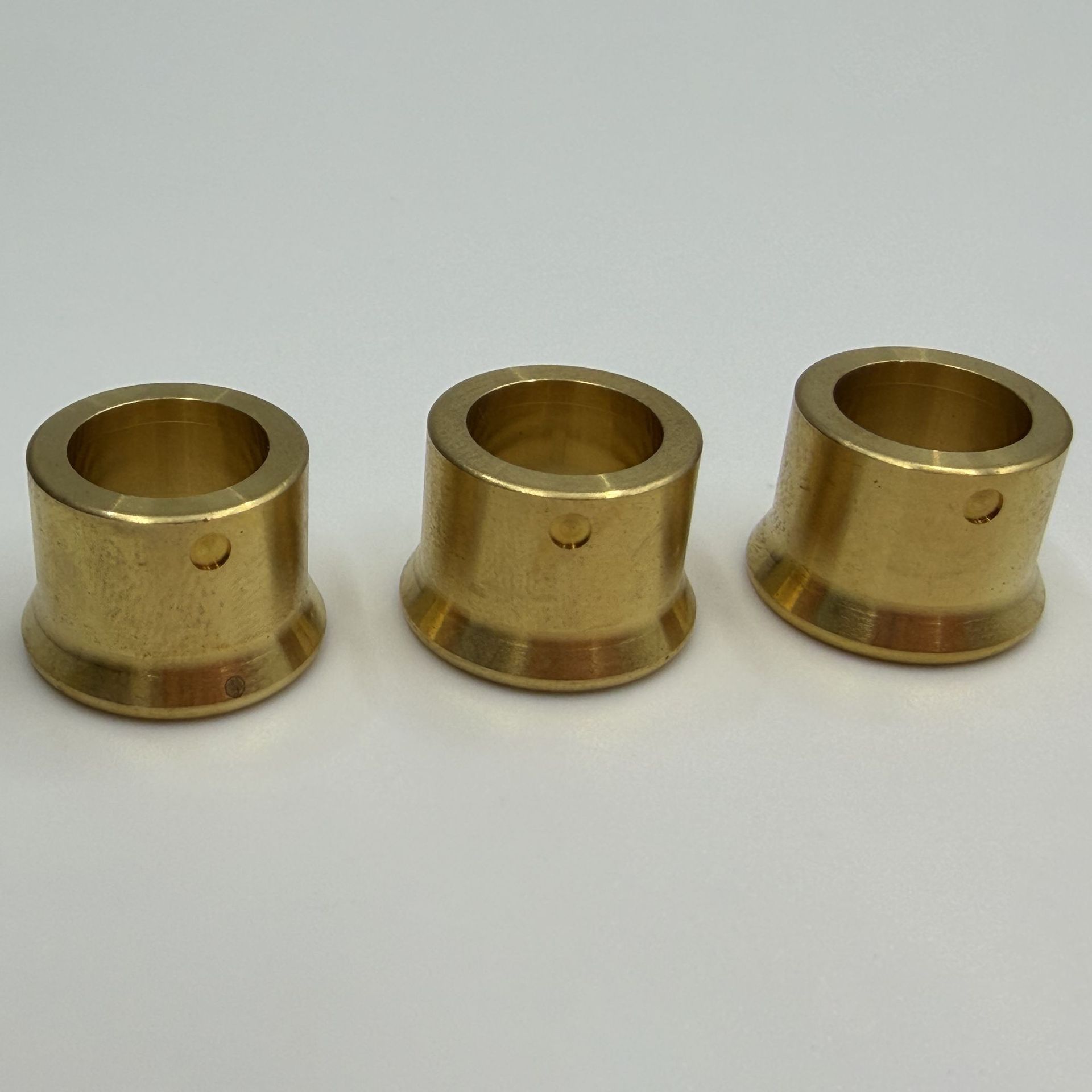

Precision Flanged Bushings

Materials: Brass, Bronze, Stainless Steel, Aluminum Alloys, Carbon Steel, Engineering Plastics, or as Specified

Manufacturing Processes: CNC Turning, Boring, Drilling, Grooving, Milling

Key Features: Through Bore, Flanged Profile, Internal Steps, Side Locating Hole

Reference Outer Diameter: 15.8 mm (Shown Sample)

Reference Overall Length: 11.8 mm (Shown Sample)

Other Dimensions: Customized to Customer Drawings

Bore Diameter: According to Customer Drawings

Flange Dimensions: Customized to Application Requirements

Tolerance: According to Critical Fits and Drawing Requirements

Surface Finish: As Machined or According to Customer Specifications

Inspection: Bore Diameter, Outside Diameter, Flange Thickness, Concentricity, and Locating Hole Position

Production: Prototypes to Production Quantities

Drawing Formats: 2D DWG, 3D STEP / STP

Precision Bore Machining: Internal bores and stepped surfaces are machined to the specified sizes for proper shaft and housing fit.
Custom Flanged Profiles: Flange thickness, outside diameter, and shoulder geometry can be adjusted to match different assembly designs.
Locating Hole Features: Side holes and other positioning features can be machined according to customer drawings.
Material Flexibility: Available in brass, bronze, stainless steel, aluminum, and other specified materials depending on wear, load, and operating conditions.
Drawing-Based Manufacturing: We produce custom flanged bushings from prototypes to production quantities, with critical dimensions inspected according to customer requirements.

Industrial Automation

Custom flanged bushings for moving joints, positioning mechanisms, and mechanical assemblies.

Motors & Gearboxes

Precision sleeve bushings for shaft support and suitable transmission assemblies.

Industrial Machinery

Flanged bearing sleeves for pivots, rotating shafts, and equipment components.

Robotics & Motion Control

Custom bushings for suitable joint, positioning, and shaft-support applications.

Need custom flanged bushings or precision machined sleeves?
