Slatwall Straight Display Hook

Item	Details
Material	Iron
Hook Type	Straight Single Hook
Wire Diameter	3 mm / 4 mm / 5 mm / 6 mm
Groove Width	Approx. 1 cm
Load Capacity	0–1 kg
Installation	Clip-In, No Screws or Nails Required
Compatible Panels	Slatwall / Aluminum Slatwall
Construction	Solid Iron Wire with Welded Clip
Colors	Black / White / Silver
Black Finish	Baked Paint
White Finish	Baked Paint
Silver Finish	Nickel-Chrome Electroplated
Style	Modern / Simple
Applications	Supermarkets, Convenience Stores, Stationery Shops, Retail Displays

Wire Dia.	Hook Length	L × W × H	Volume	Weight
3 mm	5 cm	5 × 2 × 5 cm	50 cm³	17 g
3 mm	10 cm	10 × 2 × 5 cm	100 cm³	19 g
3 mm	15 cm	15 × 2 × 5 cm	150 cm³	21 g
3 mm	20 cm	20 × 2 × 5 cm	200 cm³	24 g
3 mm	25 cm	25 × 2 × 5 cm	250 cm³	29 g
4 mm	5 cm	6 × 3 × 6 cm	108 cm³	23 g
4 mm	10 cm	10 × 3 × 6 cm	180 cm³	27 g
4 mm	15 cm	15 × 3 × 6 cm	270 cm³	31 g
4 mm	20 cm	20 × 3 × 6 cm	360 cm³	36 g
4 mm	25 cm	25 × 3 × 6 cm	450 cm³	41 g
5 mm	10 cm	10 × 3 × 7 cm	210 cm³	39 g
5 mm	15 cm	15 × 3 × 7 cm	315 cm³	45 g
5 mm	20 cm	20 × 3 × 7 cm	420 cm³	53 g
5 mm	25 cm	25 × 3 × 7 cm	525 cm³	61 g
5 mm	30 cm	30 × 3 × 7 cm	630 cm³	67 g
6 mm	10 cm	10 × 3 × 7 cm	210 cm³	45 g
6 mm	15 cm	15 × 3 × 7 cm	315 cm³	54 g
6 mm	20 cm	20 × 3 × 7 cm	420 cm³	63 g
6 mm	25 cm	25 × 3 × 7 cm	525 cm³	71 g
6 mm	30 cm	30 × 3 × 7 cm	630 cm³	81 g

Mounting Clip Dimensions

Wire Dia.	Clip Width	Upper Height	Lower Height	Overall Height
3 mm	21.5 mm	15 mm	28 mm	42 mm
4 mm	23.5 mm	15 mm	38 mm	52 mm
5 mm	24 mm	15 mm	55 mm	70 mm
6 mm	24 mm	15 mm	55 mm	70 mm

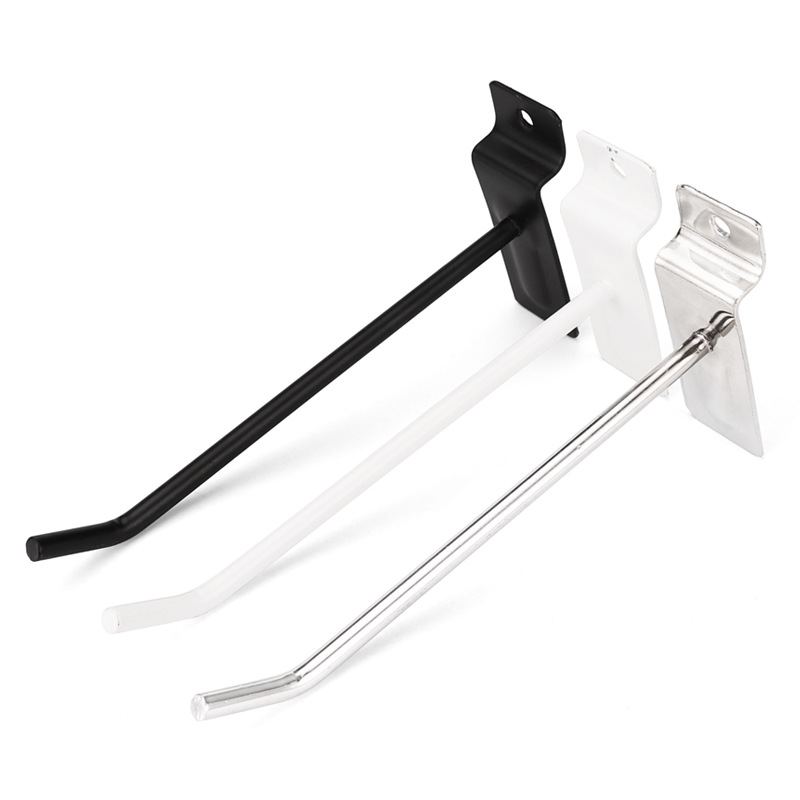

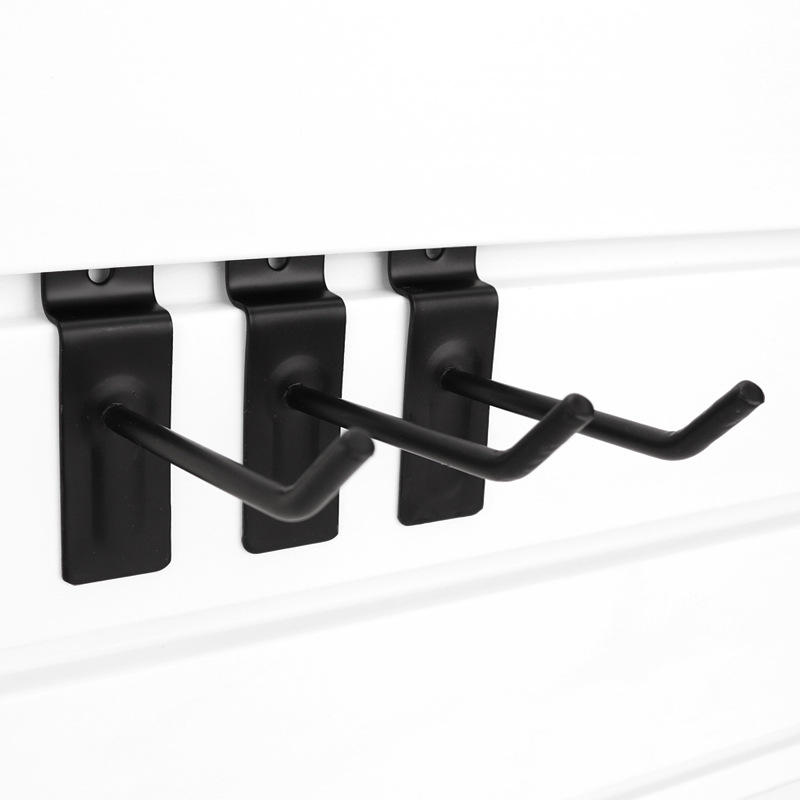

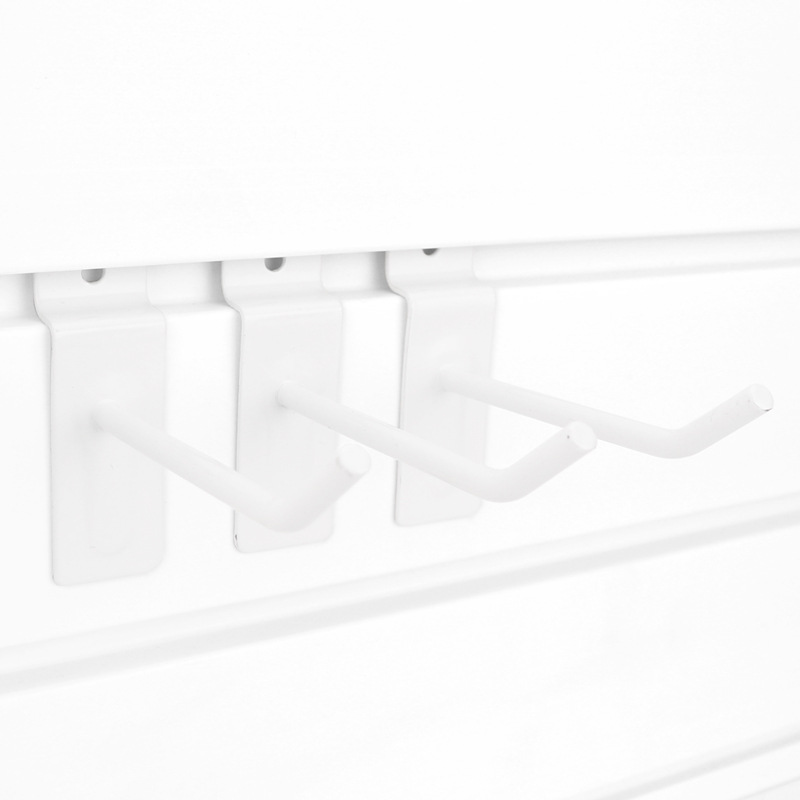

This slatwall display hook is made of solid iron wire and designed for quick, secure installation on slatwall and aluminum slatwall panels. The welded mounting clip locks into the groove without screws or nails, making it easy to install, remove and reposition.

Available in 3 mm, 4 mm, 5 mm and 6 mm wire diameters, with lengths from 5 cm to 30 cm. Black and white versions use a baked paint finish, while the silver version features a nickel-chrome plated surface for improved corrosion resistance.

Suitable for supermarkets, convenience stores, stationery shops and other retail display systems.

OEM & Custom Manufacturing: Send your 2D DWG or 3D STEP drawings to info@hofengfab.com for a custom quote, or visit Hofengfab to explore our manufacturing capabilities.
