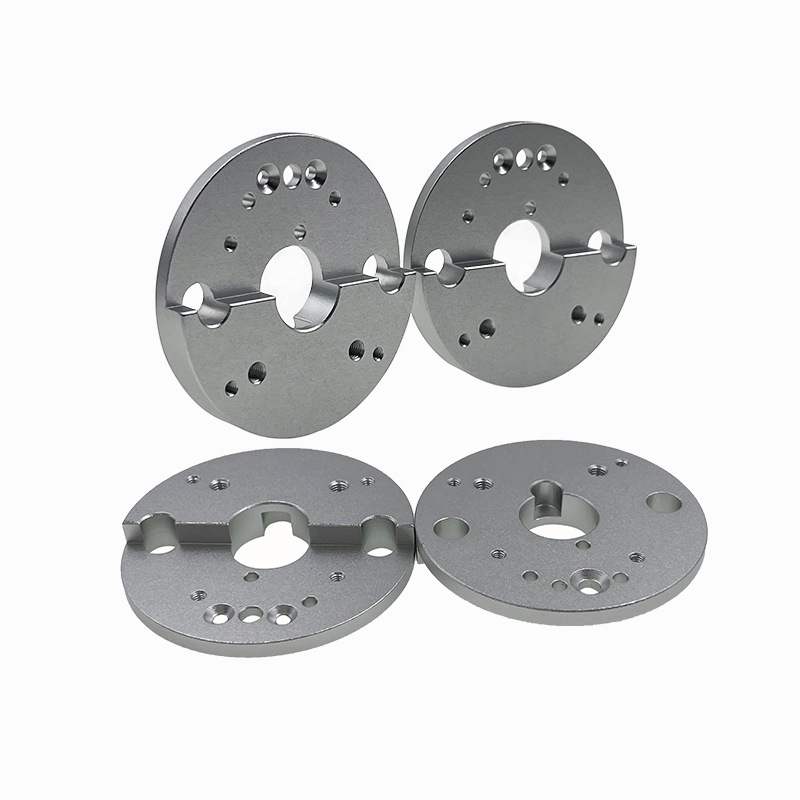

Motor Adapter Plate

Product Type: Custom Motor Adapter Plate

Materials: Aluminum, Stainless Steel, Titanium, Brass, Carbon Steel, and Other Specified Materials

Manufacturing Process: CNC Milling, Drilling, Boring, Tapping

Key Features: Center Bore, Mounting Holes, Threaded Holes, Machined Slots

Tolerance: According to Customer Drawings and Critical Feature Requirements

Surface Finish: As Machined, Anodizing, Sandblasting, Plating, and Other Finishes

Plate Thickness: Customized

Bore Diameter: Customized

Hole Pattern: Customized

Production Volume: Prototypes to Production Quantities

Inspection: Dimensional Inspection Based on Drawing Requirements

Drawing Formats: 2D DWG, PDF, 3D STEP, STP

Precise Motor Alignment: The center bore and mounting holes are machined with attention to their relative positions, helping the motor and mating components fit correctly.
Custom Mounting Patterns: Bolt circles, threaded holes, counterbores, slots, and locating features can be machined according to your design.
Flat Mounting Surfaces: We pay attention to plate flatness and burr removal, particularly around the center bore and mounting slots where assembly issues often occur.
Flexible Material Options: We machine aluminum motor adapter plates as well as stainless steel, titanium, brass, and other specified materials.
Made to Your Drawings: We support one-off prototypes and production batches, with dimensions, tolerances, and finishing options tailored to your application.

Hofengfab manufactures custom CNC machined adapter plates for industrial automation, robotics, motors, gearboxes, and precision equipment. We machine aluminum, stainless steel, titanium, brass, and other specified materials, with custom mounting holes, threaded features, locating surfaces, and different bolt patterns based on your drawings.

Have a custom part to manufacture?

Send your 2D DWG or 3D STEP drawings with material, quantity, and tolerance requirements for a quotation.

Email: info@hofengfab.com

Website: https://www.hofengfab.com

Watch our CNC machining video on LinkedIn: https://lnkd.in/p/gz8dEWK6
