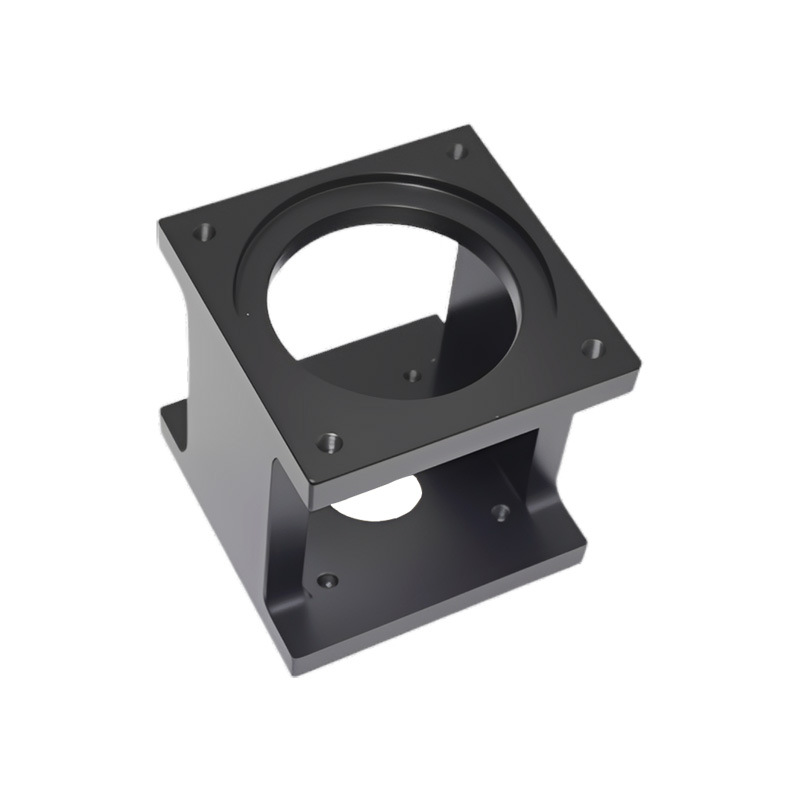

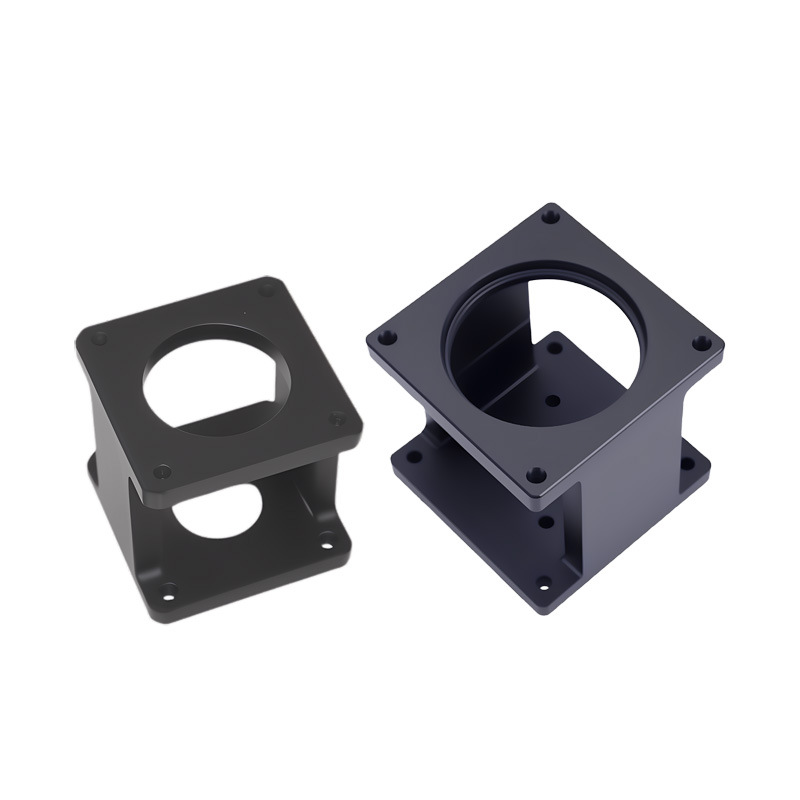

Custom Servo Motor Mounting Plate

Overall Sizes: 45 × 45 × 55 mm to 130 × 130 × 130 mm
Material Options: Aluminum 6061, 6082, 7075, or customer-specified materials
Manufacturing: CNC Milling, Drilling, Boring, Tapping
Surface Finish: Black Anodizing, Hard Anodizing, Custom Finishing
Mounting Features: Precision Center Bore, Motor Bolt Holes, Coupling Clearance
Applications: Servo Motors, Stepper Motors, CNC Machinery, Robotics, Automation Equipment
Drawing Formats: 2D DWG, 3D STEP
Production: Prototypes to Volume Production
Customization: Size, Hole Pattern, Height, Wall Thickness, Material, Finish

Secure Motor Mounting: Rigid construction helps support servo and stepper motors in motion control assemblies.

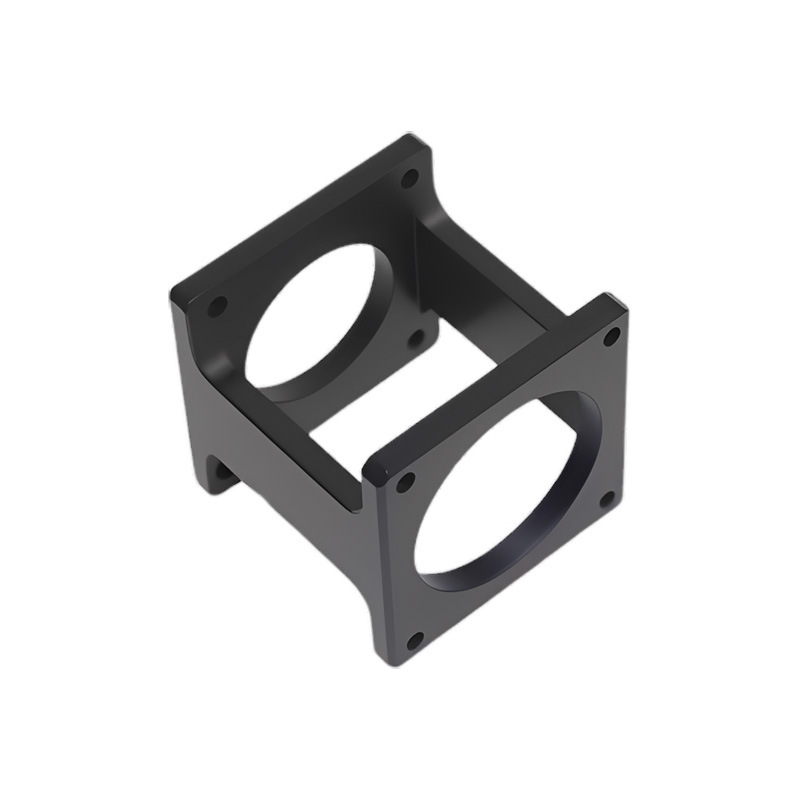

Coupling Clearance: The open center provides access to shaft couplings, making installation and adjustment easier.
Precision Machined Interfaces: We focus on mounting face flatness, center bore alignment, and hole positioning. These details matter more than the outside dimensions when fitting a motor to a drive assembly.

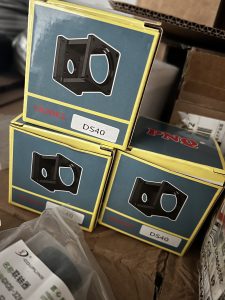

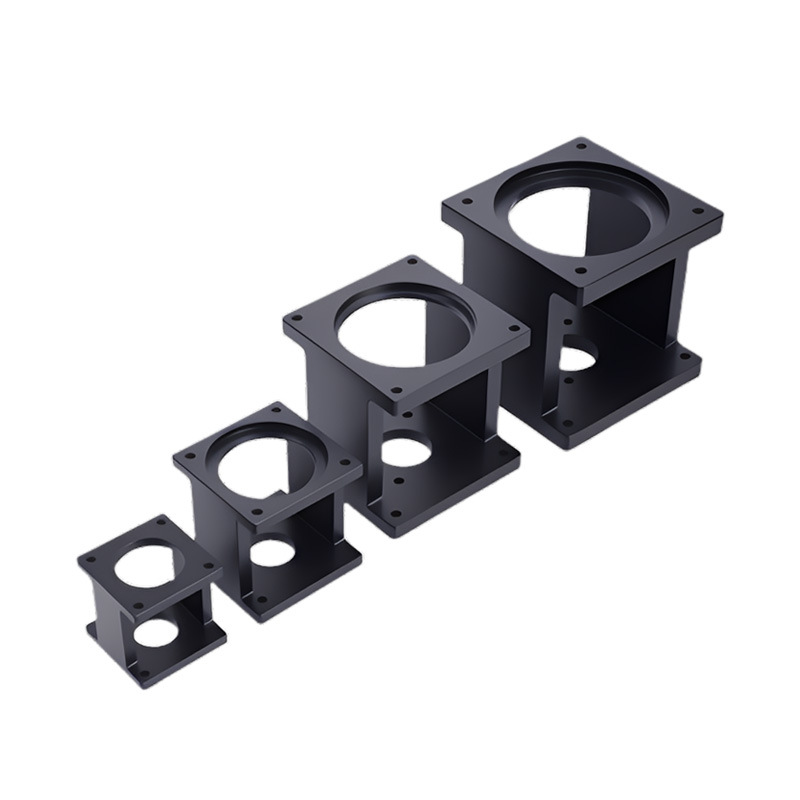

Flexible Size Options: Multiple DB and DS series sizes are available for different motor mounting arrangements.
Made to Your Drawings: We can modify mounting patterns, bracket height, bore diameter, wall thickness, and other features to suit your equipment.

Custom CNC Machining Capabilities

Motor mounting parts may look simple, but keeping both mounting faces aligned after machining the open center section takes careful planning.

At Hofengfab, we select suitable workholding and machining sequences to control distortion and maintain critical dimensions. Precision drilling, boring, and tapping are performed according to the drawing requirements.

For more complex mounting plates with angled holes, additional pockets, or multiple mounting faces, we also offer multi-axis CNC machining.

You can explore our Custom CNC Machining Services for other precision components and manufacturing capabilities.

Need a custom servo motor mounting plate?

Send your 2D DWG or 3D STEP drawings to info@hofengfab.com. Include your required material, quantity, surface finish, and critical tolerances for a quotation.

CMM Inspection & Quality Control

For precision motor mounting parts, we pay close attention to mounting face flatness, hole positions, and bore alignment. CMM inspection can be used to verify critical dimensions and geometric tolerances against customer drawings, helping ensure a proper fit during assembly.
