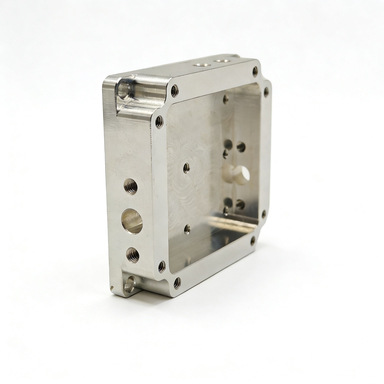

Aluminum RF Shielding Box

Material: Die-cast aluminum
Manufacturing Process: CNC machining
External Dimensions: 41 x 39 x 12mm

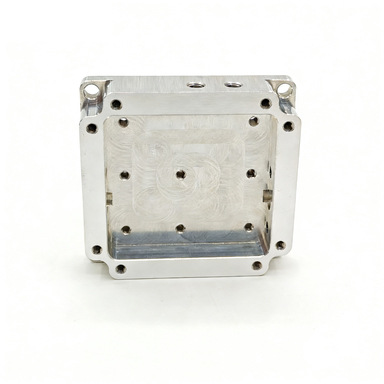

Internal Cavity: 32 x 30 x 6mm
Wall Thickness: 2mm
Recommended PCB Size: 31.5 x 29.5mm or smaller
Recommended PCB Thickness: ≤1.0mm
Feedthrough Pin Height: 1.5mm from cavity bottom to pin center
Housing Weight: Approx. 20g
Mounting: Integrated mounting feet
Optional SMA Connector: SMA-KFD46
Optional Accessories: M3 grounding post, M3/3300pF feedthrough capacitor
Power Port: No pre-drilled feedthrough capacitor hole on the standard housing

RF Shielding: Aluminum housing helps reduce electromagnetic interference in LNA modules and RF amplifier circuits.
Precision CNC Machining: Accurate internal cavities and mounting features help with PCB installation and assembly.

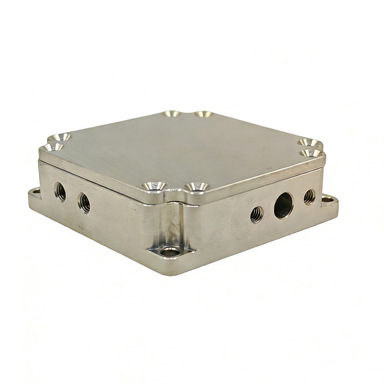

Compact Housing: The 41x39x12mm enclosure is suitable for small RF modules and custom electronic designs.

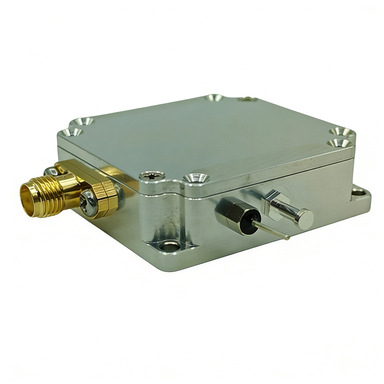

Flexible Connector Options: SMA connectors, grounding posts, and feedthrough capacitors can be configured as needed.
Custom Manufacturing Available: We can modify existing designs or machine completely new aluminum enclosures based on your drawings.

The HF 41x39x12mm RF shielding box is made from die-cast aluminum with CNC-machined features. It's designed for low-noise amplifiers (LNA), RF power amplifiers, and other RF circuits that need EMI shielding.

Need a different size or a more complex RF enclosure?

At Hofengfab, we manufacture custom CNC machined aluminum housings, from simple RF shielding boxes to complex enclosures with deep pockets, thin walls, angled surfaces, and precision mounting features.

Our machining capabilities include:

3-Axis & 5-Axis CNC Milling: For custom cavities, complex geometries, and multi-face machining.
Precision Drilling & Tapping: Custom mounting holes, threaded holes, and connector openings.
Deep Pocket Machining: Controlled machining of internal cavities and thin-wall structures.
Material Options: Aluminum 6061, 6082, 7075, and other grades upon request.
Surface Finishing: Anodizing, hard anodizing, and other finishes based on application requirements.
Flexible Quantities: Custom prototypes, small batches, and production runs.

Send us your 2D DWG drawings or 3D STEP files for a quotation. We can review your design, discuss machining requirements, and recommend a suitable manufacturing approach.

Email: info@hofengfab.com
