304 Stainless Steel Two-Hole Pipe Strap

304 stainless steel construction
Two-hole mounting design for secure fixing
Smooth formed edges help protect pipes and cables
0.6 mm strap thickness
12 mm width for smaller sizes; 18 mm width for larger sizes
Sizes available from M5 to M200
Suitable for conduit, tubing, cable protection pipe and general pipework
Good corrosion resistance for indoor and outdoor applications
Easy to install with screws, bolts or anchors

Typical Applications: electrical conduit, plumbing pipe, stainless steel tubing, cable protection systems, machinery, HVAC installations, construction projects and industrial equipment.

Model	Inner Diameter (mm)	Height (mm)	Hole Center Distance (mm)	Hole Diameter (mm)	Overall Length (mm)	Width (mm)	Thickness (mm)	Weight (g/pc)
M5	6	5	20	4	39	12	0.6	2.1
M8	9	8	23	4	38	12	0.6	2.4
M10	11	10	25	4	40	12	0.6	2.7
M12	13	12	27	4	42	12	0.6	2.9
M14	15	14	32	4	47	12	0.6	3.1
M16	17	16	38	6	51	18	0.6	5.3
M18	19	18	40	6	53	18	0.6	5.4
M20	21	20	43	6	55	18	0.6	5.5
M22	23	22	53	6	65	18	0.6	6.4
M25	26	25	56	6	69	18	0.6	6.7
M27	28	27	57	6	70	18	0.6	6.8
M30	31	30	60	6	72	18	0.6	8.1
M32	33	32	62	6	74	18	0.6	8.3
M35	36	35	64	6	76	18	0.6	9.3
M40	41	40	69	6	82	18	0.6	9.4
M42	43	42	72	6	82	18	0.6	10.5
M45	46	45	75	6	87	18	0.6	11.6
M50	51	50	82	6	96	18	0.6	11.9
M57	58	57	89	6	98	18	0.6	13.8
M60	61	60	92	6	103	18	0.6	14.2
M63	64	63	96	6	105	18	0.6	15.8
M65	66	65	98	6	108	18	0.6	16.2
M70	71	70	103	6	116	18	0.6	17.2
M75	76	75	105	6	120	18	0.6	17.8
M80	81	80	110	6	125	18	0.6	18.2
M90	91	90	120	6	130	18	0.6	21.2
M100	101	100	130	6	140	18	0.6	22.1
M110	111	110	140	6	150	18	0.6	23.2
M115	116	115	145	6	160	18	0.6	23.5
M120	121	120	150	6	170	18	0.6	27.5
M130	131	130	160	6	180	18	0.6	29.5
M140	141	140	170	6	190	18	0.6	32.3
M150	151	150	180	6	200	18	0.6	33.1
M160	161	160	190	6	210	18	0.6	33.2
M170	171	170	200	6	220	18	0.6	38.3
M180	181	180	210	6	225	18	0.6	39.2
M190	191	190	220	6	230	18	0.6	42.1
M200	201	200	230	6	240	18	0.6	43.1

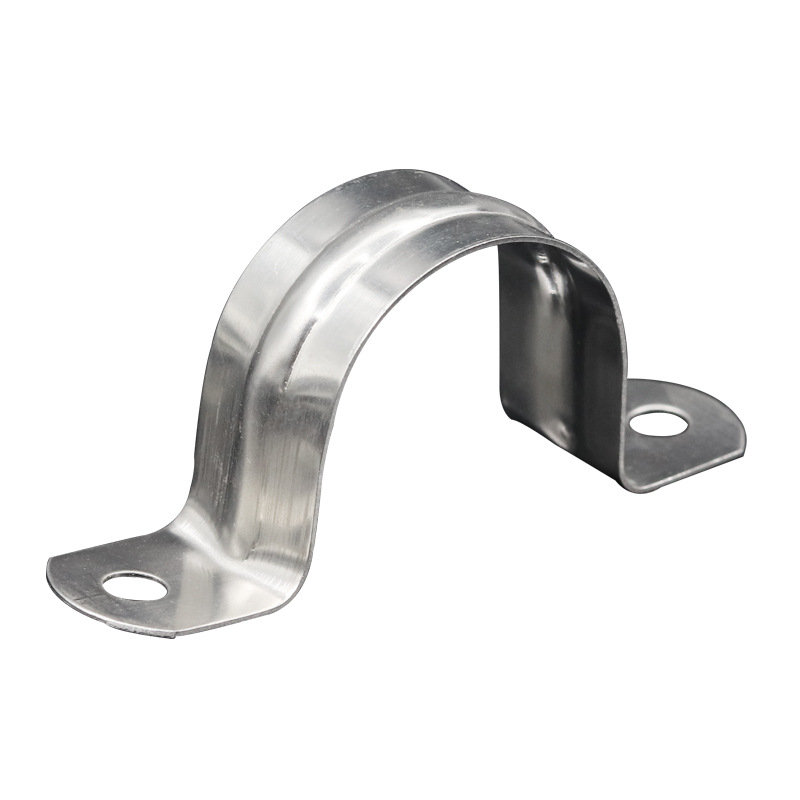

This 304 stainless steel two-hole pipe strap is designed for securing conduit, tubing, and round pipe to walls, ceilings, frames, and equipment. The formed saddle profile provides a firm hold around the pipe, while the two mounting holes keep the installation stable and evenly loaded.

Made from 304 stainless steel, it offers good corrosion resistance for indoor, outdoor, humid, and light industrial environments. The 0.6 mm material thickness keeps the clamp lightweight while providing reliable support for general pipe and conduit installation.

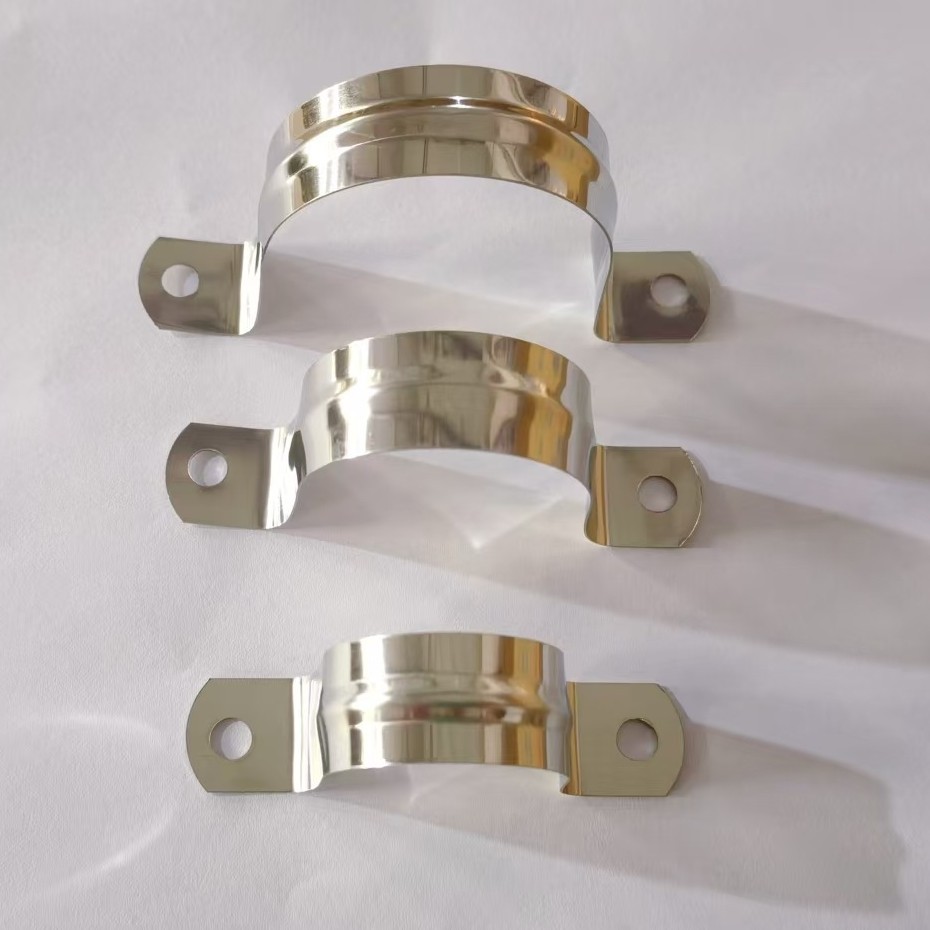

Available in sizes from M5 to M200, with strap widths of 12 mm or 18 mm depending on size. Standard and small-hole versions are available for selected sizes.

OEM & Custom Manufacturing: Send your 2D DWG or 3D STEP drawings to info@hofengfab.com for a custom quote, or visit Hofengfab to explore our manufacturing capabilities.
