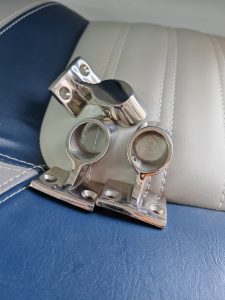

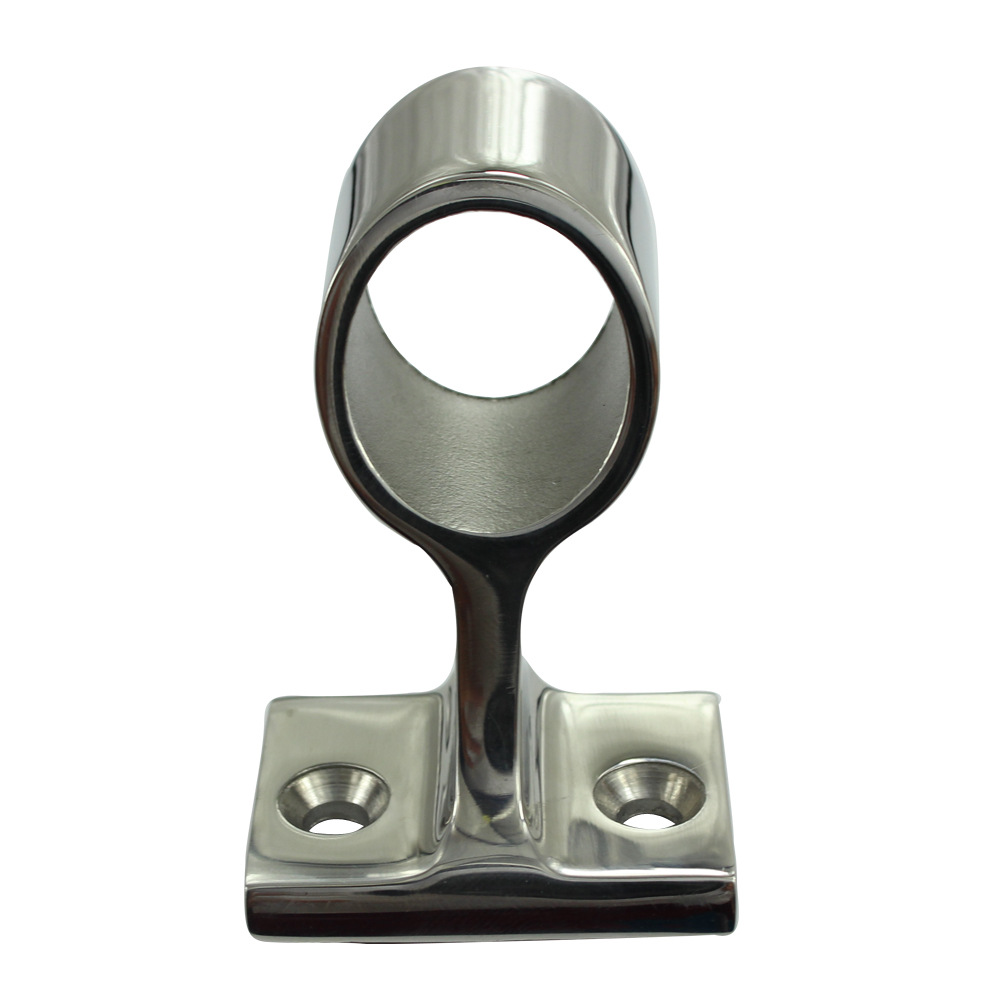

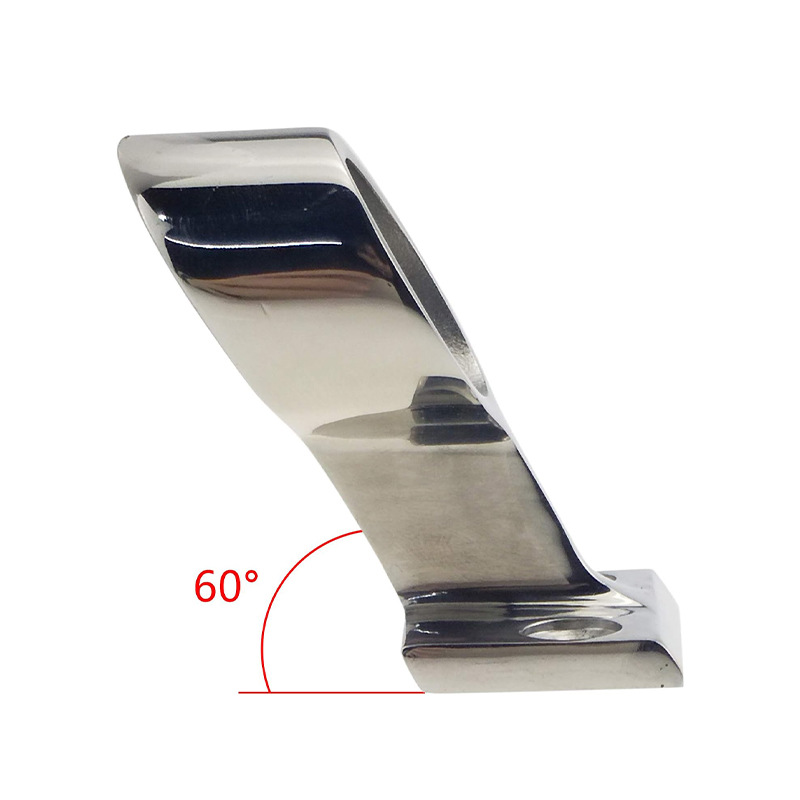

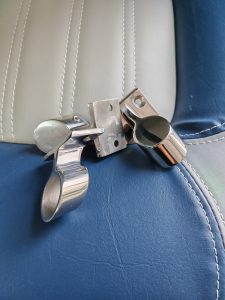

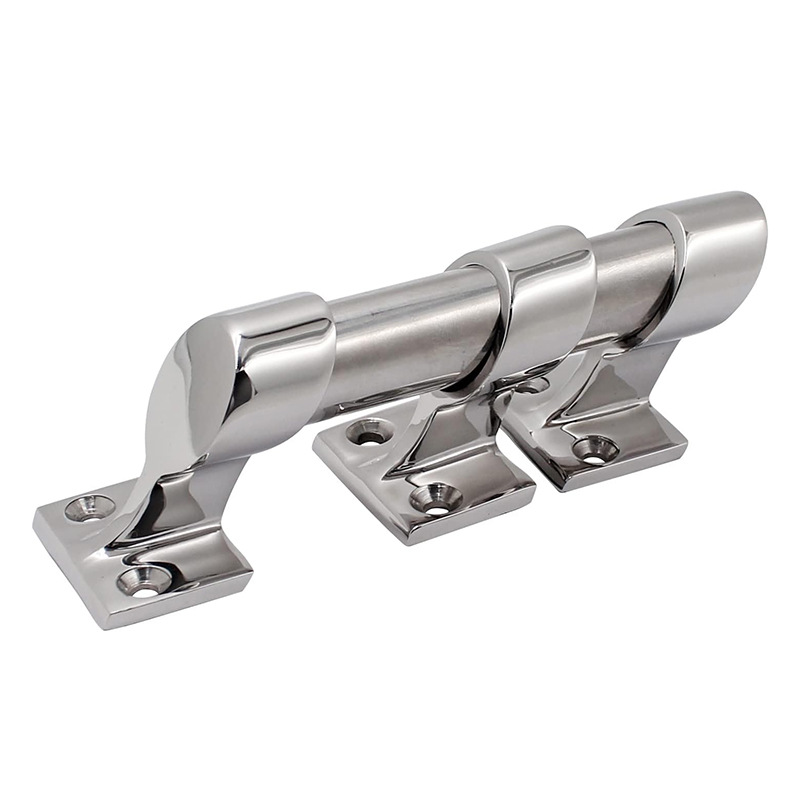

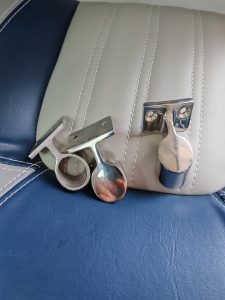

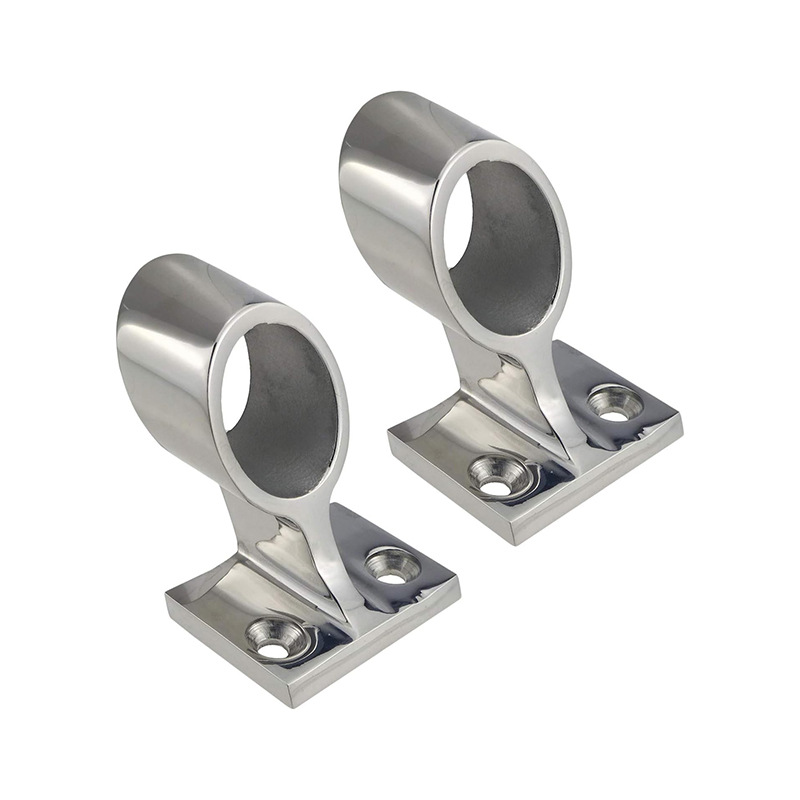

Stainless Steel Round Tube Support Bracket
Material: Marine Grade 316 Stainless Steel
Manufacturing Process: Precision Casting
Surface Finish: Hand Mirror Polished
Corrosion Resistance: Excellent Rust and Corrosion Resistance
|
Model |
Inner Diameter |
Overall Height |
Base Size |
Holder Width |
|---|---|---|---|---|
|
C-1-32 (Left/Right/Center) |
32.5 |
78 |
76 × 40 |
34 |
|
C-1-38 (Left/Right/Center) |
38.5 |
86 |
80 × 40 |
35 |
|
C-3-25 (Left/Right/Center) |
25.5 |
55 |
40 × 30 |
19 |
|
C-2-25 (Side) |
25.8 |
60 |
66 × 30 |
40 |
|
C-2-25 (Center) |
25.8 |
60 |
66 × 22 |
19 |
|
C-38 |
39 |
100 |
Ø70 |
28 |
|
C-51 |
51.7 |
115 |
Ø70 |
28 |
|
B-19 (Solid/Hollow) |
19.3 |
54 |
Ø49 |
— |
|
B-25 (Solid/Hollow) |
25.5 |
63 |
Ø58 |
— |
|
A-19 |
19.5 |
51 |
Ø42 |
— |
Additional Dimensions:
-
C-1-32: Post Diameter Ø17 mm, Post Height 33 mm
-
C-1-38: Post Diameter Ø17 mm, Post Height 35 mm
-
C-38 / C-51: Post Diameter Ø12 mm
