RF Amplifier Housing

Material: Aluminum 6063 (listed material; custom alloys available)
Manufacturing Process: Aluminum Die Casting
Secondary Machining: CNC Milling, Drilling, Tapping, Boring
Surface Finish: Painted finish; custom finishes available
Protection Rating: IP68 design option, subject to complete assembly testing
Structure: Die Cast Aluminum Housing with Cover
Cooling Design: External Heat Dissipation Fins, Model Dependent
Customization: Connector Holes, Mounting Bosses, PCB Pockets, Gasket Grooves, Logo Marking
Applications: RF Amplifiers, Signal Boosters, Telecommunications, Industrial Electronics
Production: Prototypes and Production Quantities

Model	Dimensions (mm)	Weight

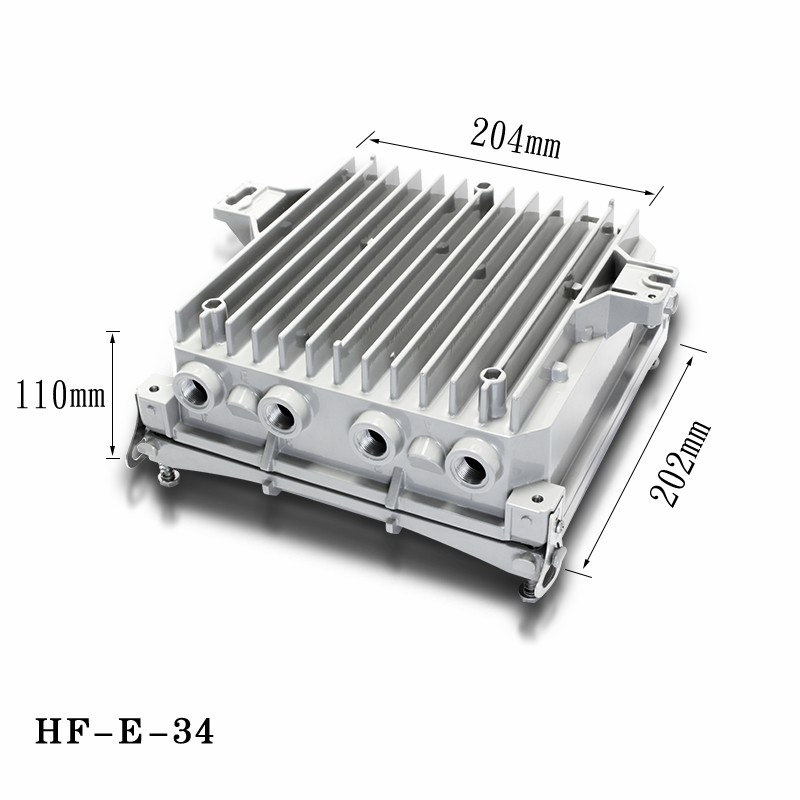

HF-E-34	204 × 202 × 110	3002 g
HF-E-40	212 × 132 × 96	1537 g

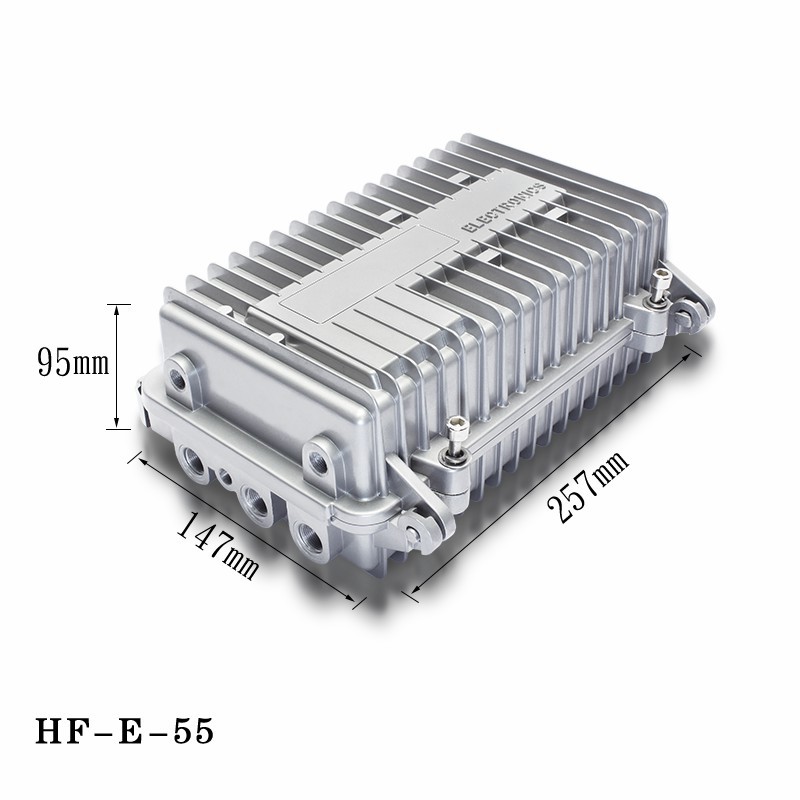

HF-E-55	257 × 147 × 95	2236 g
HF-E-57	256 × 200 × 80	1265 g
HF-E-60	279 × 179 × 89	1548 g
HF-E-93	262 × 201 × 82	1503 g
HF-E-134	210 × 130 × 60	972 g
HF-E-5	162 × 113 × 57	679 g
HF-E-7	162 × 113 × 57	679 g
HF-E-17	167 × 83 × 84	757 g
HF-E-167	220 × 155 × 95	1392 g

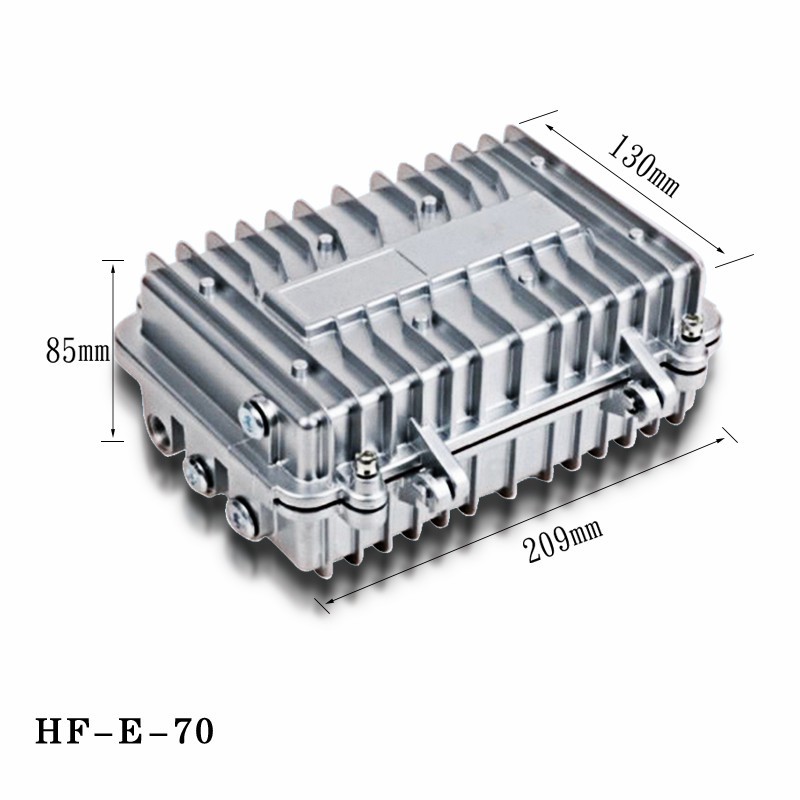

HF-E-70	209 × 130 × 85	804 g

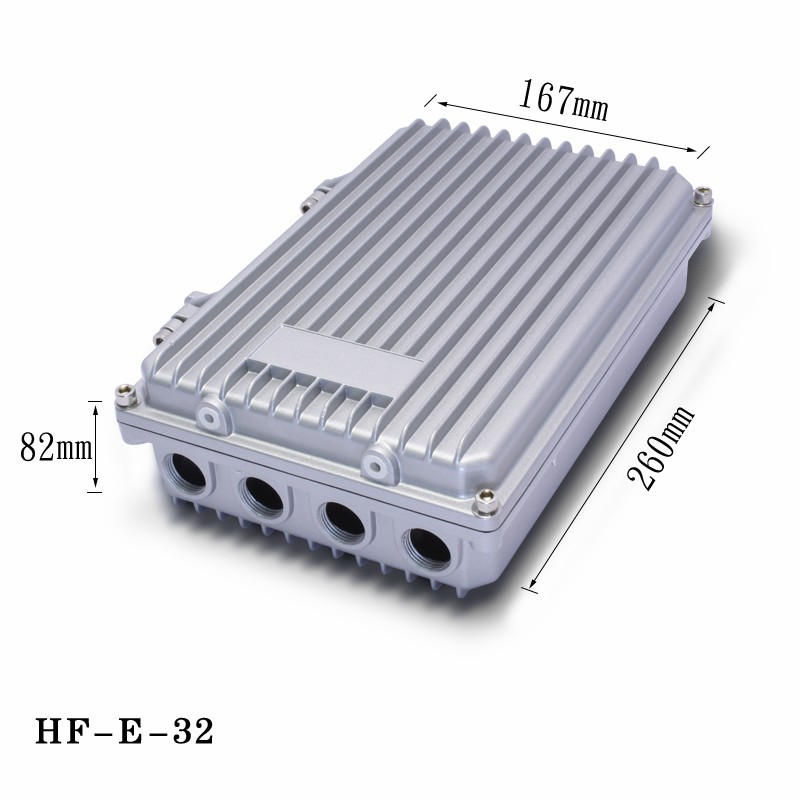

HF-E-32	260 × 167 × 82	2359 g
HF-E-166	185 × 135 × 85	1070 g
HF-E-168	245 × 185 × 90	1769 g
HF-E-169	250 × 190 × 92	1612 g
HF-E-58	261 × 168 × 65	992 g
HF-E-193	80 × 75 × 55	286 g
HF-E-197	360 × 160 × 90	4497 g

Other housing sizes and configurations are available based on your drawings.

Need a housing with a different cooling fin layout, RF connector position, PCB mounting pattern, or overall size?

At Hofengfab, we manufacture custom CNC machined RF amplifier housings based on your project requirements. We can review the casting design, machining allowance, critical mounting surfaces, and sealing features before production.

For RF power amplifier projects, we recommend supplying the amplifier's heat dissipation requirements and connector layout along with the drawings. This helps us identify possible machining and assembly issues early.

Send us your 2D DWG or 3D STEP drawings for a quotation.
