L-Shaped Sensor Mounting Bracket

Adjustable Sensor Positioning: The elongated mounting hole and dual slotted base holes allow easy adjustment for accurate sensor alignment.
Practical 90° Design: The L-shaped structure makes it easy to mount sensors on machine frames, panels, and industrial equipment.
Multiple Mounting Sizes: Available in E39-L183, MW18, and different hole and slot sizes to suit a range of sensor installation requirements.
Easy to Install: The slotted design allows mounting position adjustments without drilling additional holes.
Versatile Application: Suitable for industrial automation, machinery, photoelectric sensor mounting, and general sensor installation setups.

Product Type: Industrial Sensor Mounting Bracket

Design: L-Shaped, 90° Angle Bracket

Material: Metal

Mounting Style: Elongated upper hole with dual slotted base holes

E39-L183 Hole Sizes: 3, 4, 5, 6, 8, 10, 12, 14, 16, 18.2, 20, 22, 25, 30 mm

MW18 Slot Widths: 3, 4, 5, 6, 8, 10, 12, 15, 16, 18, 19.7, 22, 25, 30 mm

Sensor Bracket Slot Widths: 3, 4, 5, 6, 8, 10, 12, 12.5, 15, 16, 18, 20, 22, 25, 30 mm

Additional Option: 10.6 mm sensor mounting hole

Package Options: Single angle bracket or mounting kit with 2 angle brackets and 16 black M4×5 hex socket set screws

OEM & Custom Manufacturing: Send your 2D DWG or 3D STEP drawings to info@hofengfab.com for a custom quote, or visit Hofengfab to explore our manufacturing capabilities.

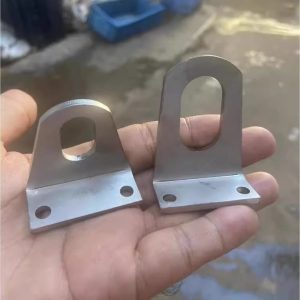

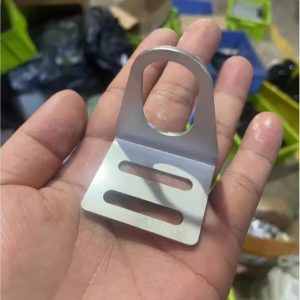

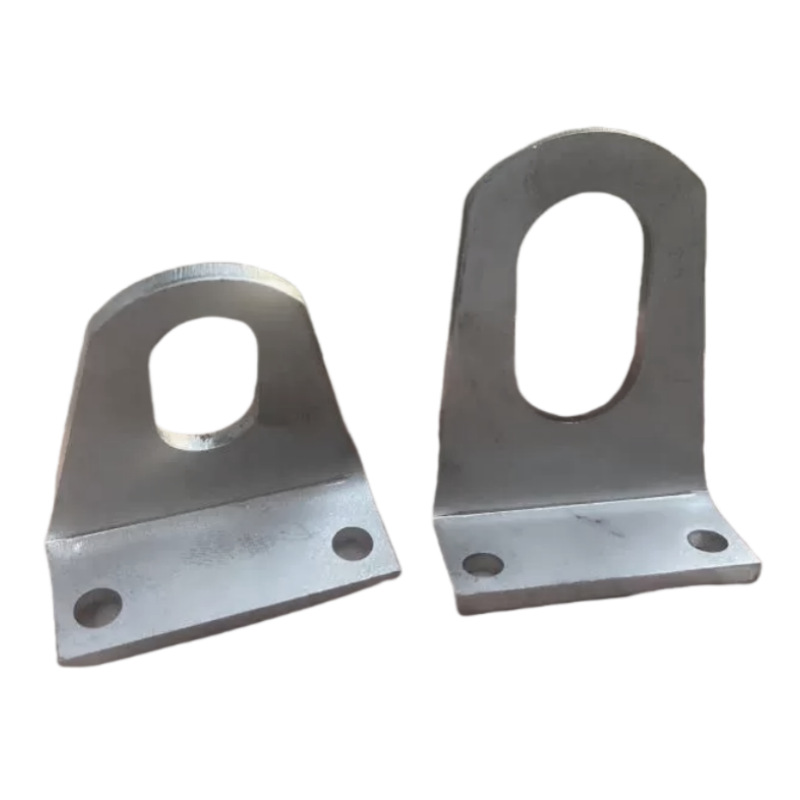

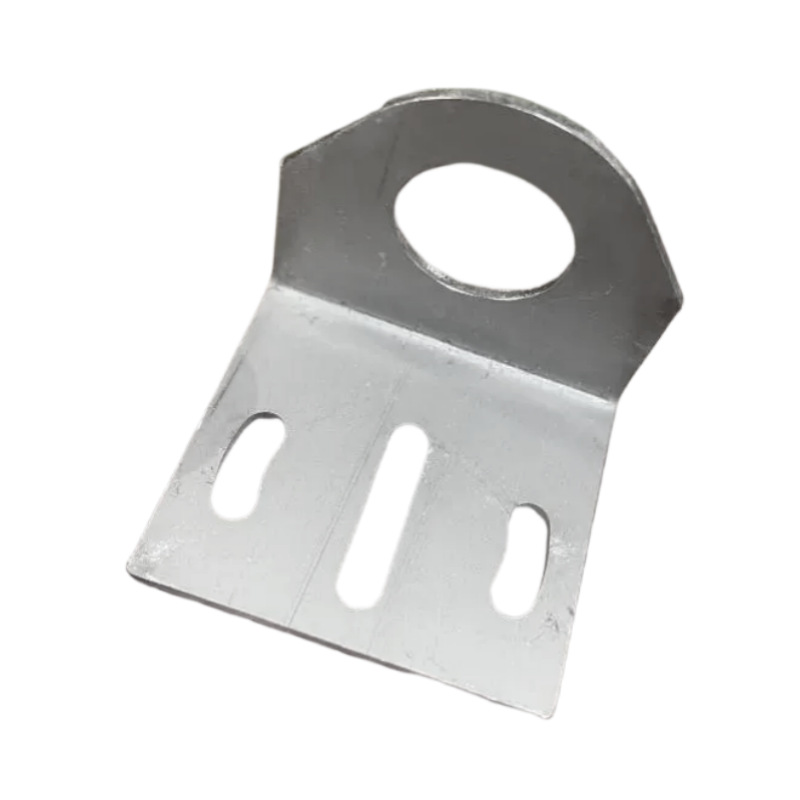

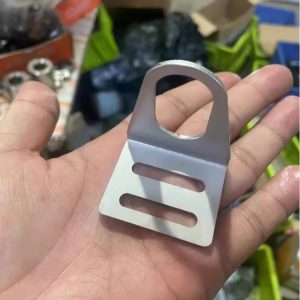

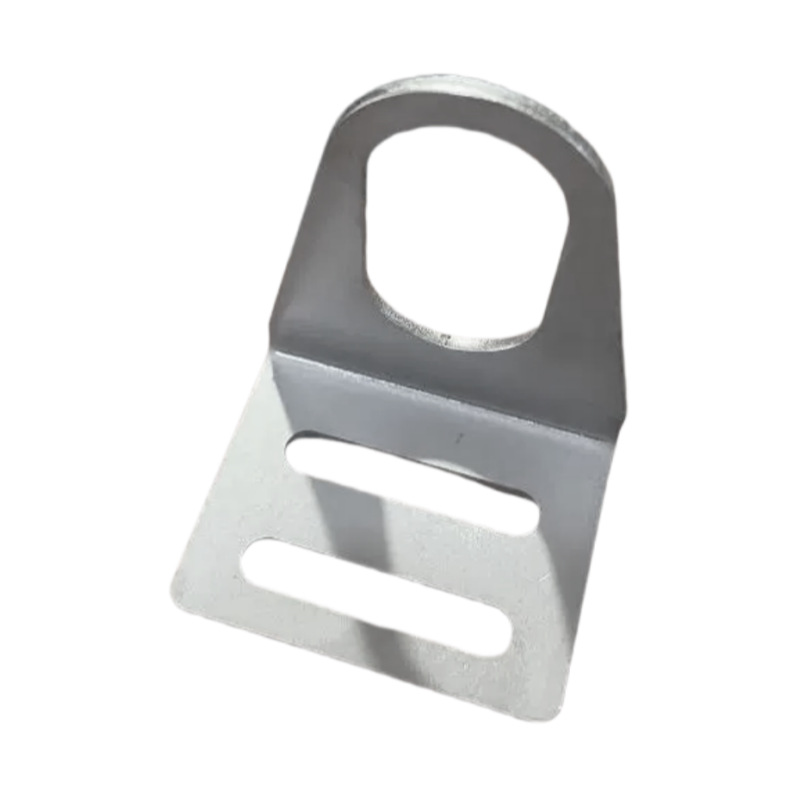

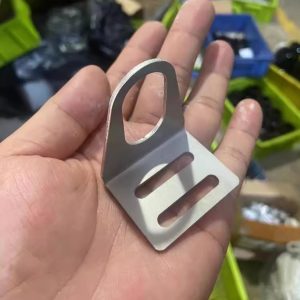

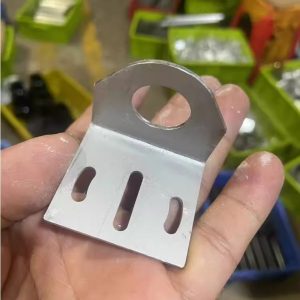

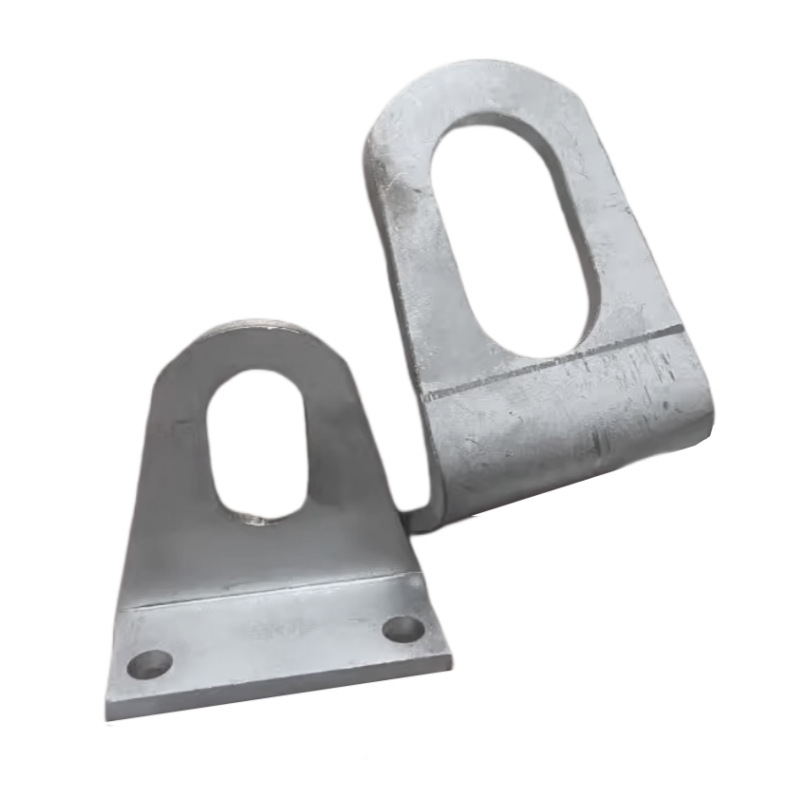

This L-shaped sensor mounting bracket is designed for secure and adjustable installation of industrial sensors. The 90-degree metal bracket features an elongated sensor mounting hole and two slotted base holes for easy positioning and alignment.

Available in E39-L183, MW18, and multiple hole and slot size options, it provides a practical mounting solution for different sensor installation requirements.
