L-Shaped Metal Sensor Mounting Bracket

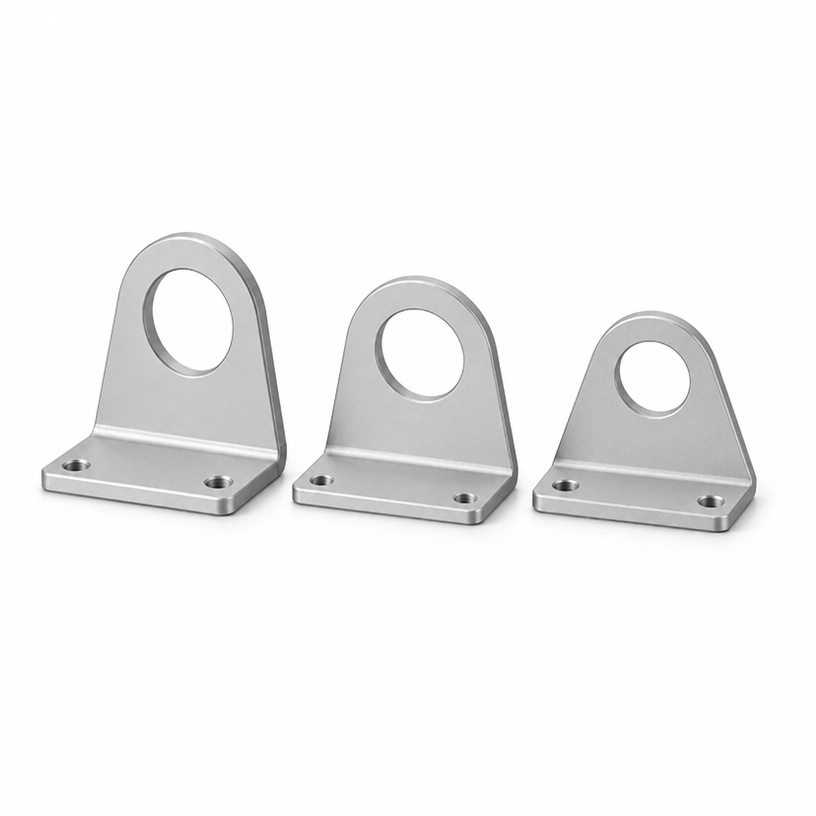

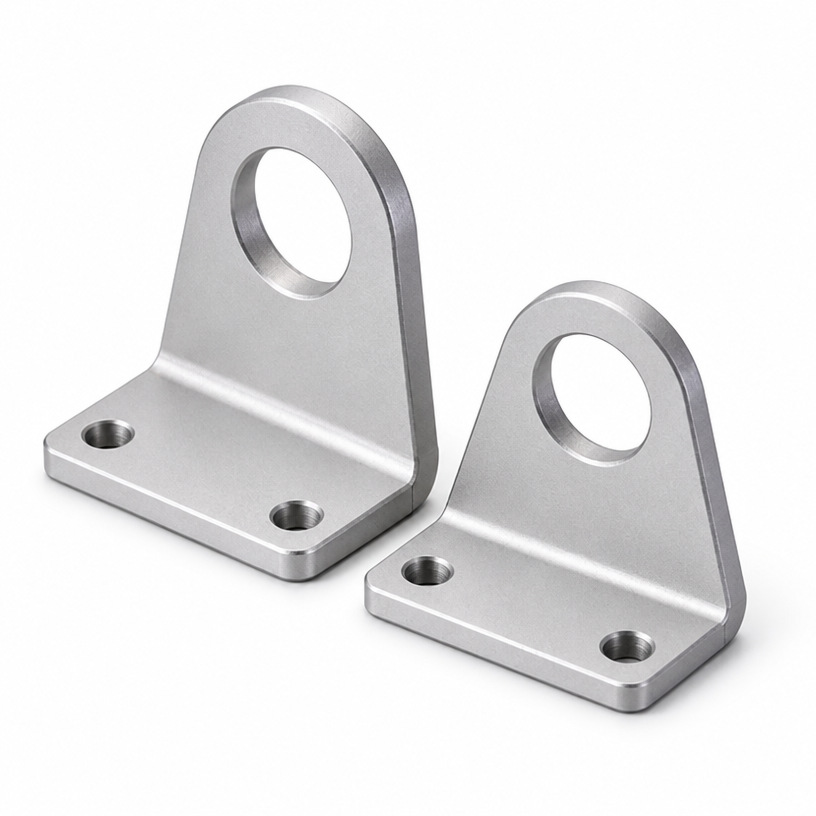

Three Size Options: Available with 16 mm, 24 mm, or 30 mm main mounting holes for different installation needs.
Steel Construction: Made from cold-rolled steel with a zinc-plated finish for corrosion resistance.
90° Mounting Design: Provides a fixed right-angle mounting point for compatible components.
Two-Hole Base: Allows the bracket to be fastened to flat surfaces using suitable bolts or screws.
Multi-Purpose Use: Suitable for compatible sensors, mechanical assemblies, and custom mounting projects.
Fitment Check: Verify hole diameter, mounting spacing, and load requirements before installation.
OEM & Custom Manufacturing: Send your 2D DWG or 3D STEP drawings to info@hofengfab.com for a custom quote, or visit Hofengfab to explore our manufacturing capabilities.

Product Type: L-Shaped Mounting Bracket
Material: Cold-Rolled Steel
Surface Finish: Zinc Plated
Bracket Style: 90° Angle

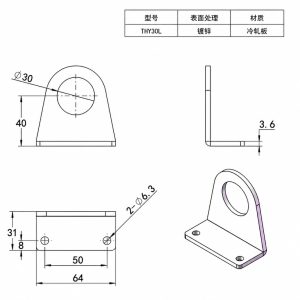

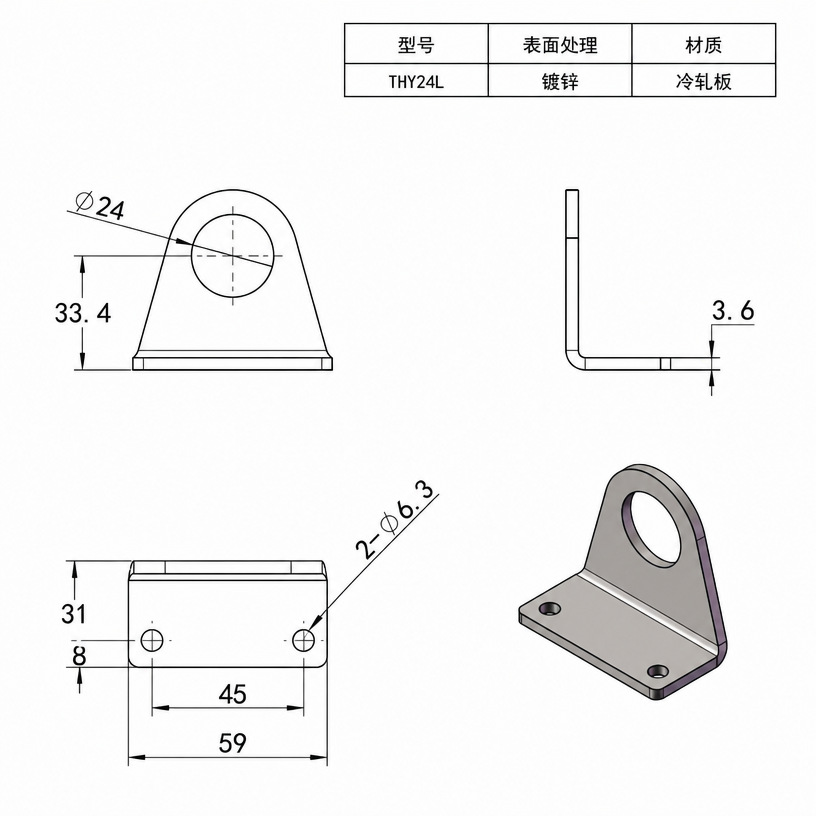

Main Hole Diameter: 16 / 24 / 30 mm
Base Mounting Holes: 2 Holes

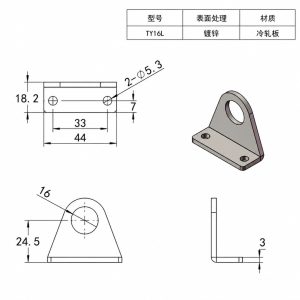

Mounting Hole Diameter: 5.3 mm (TY16L), 6.3 mm (THY24L / THY30L)
Thickness: 3 mm (16 mm Version), 3.6 mm (24 / 30 mm Versions)
Base Width: 44 / 59 / 64 mm
Hole Center Spacing: 33 / 45 / 50 mm
Application: Sensor Mounting, Equipment Supports, Custom Installations

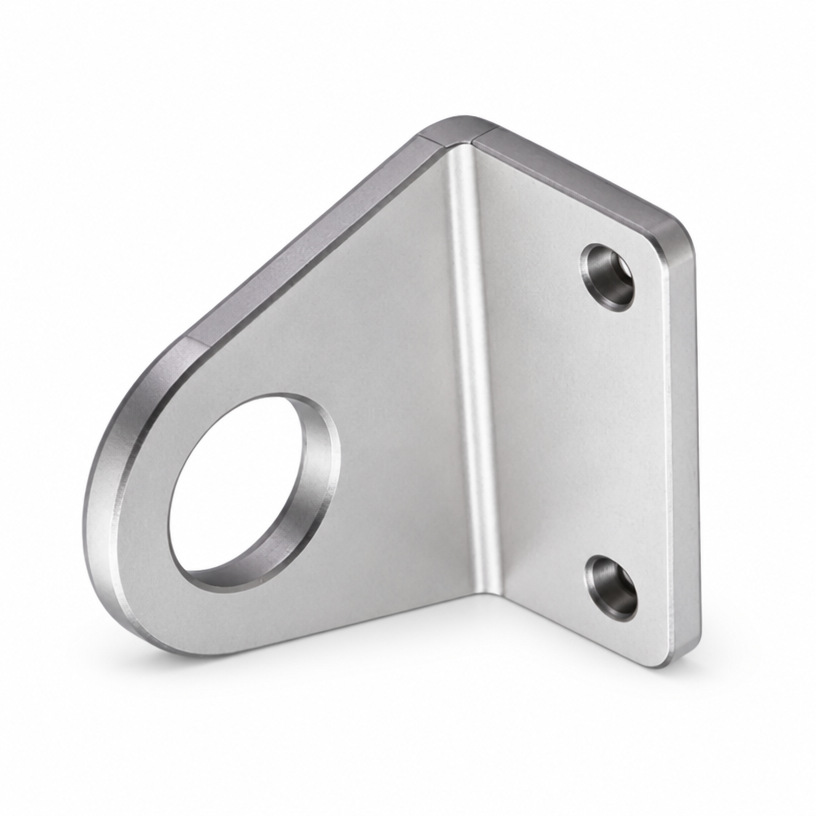

This L-shaped metal mounting bracket is made from zinc-plated cold-rolled steel. It features a 90-degree bent design with a central mounting hole and two base fixing holes. Available in three sizes, it can be used for compatible sensors, mechanical components, and custom equipment installations.
