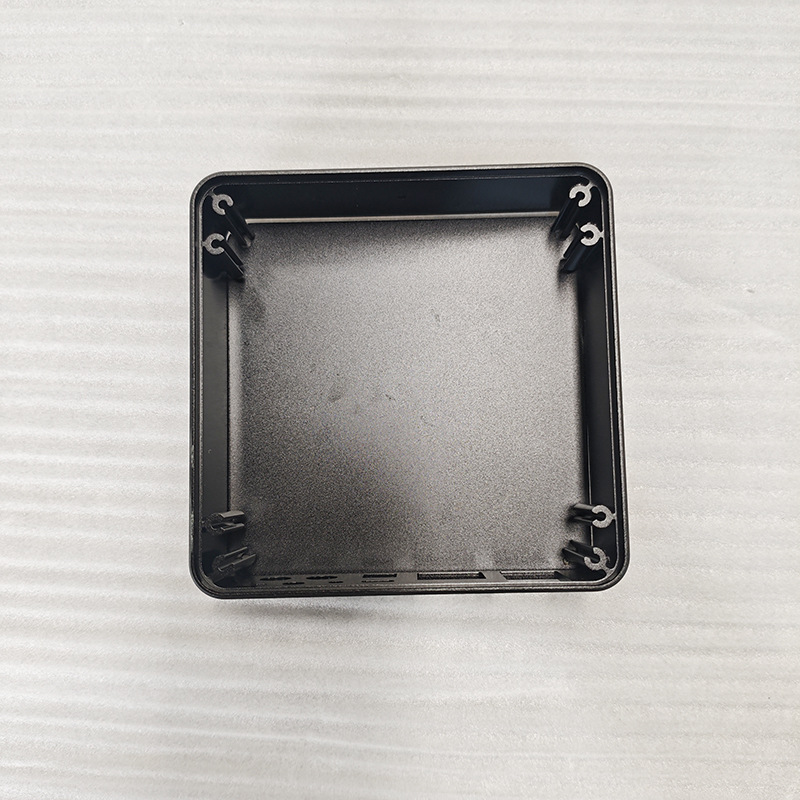

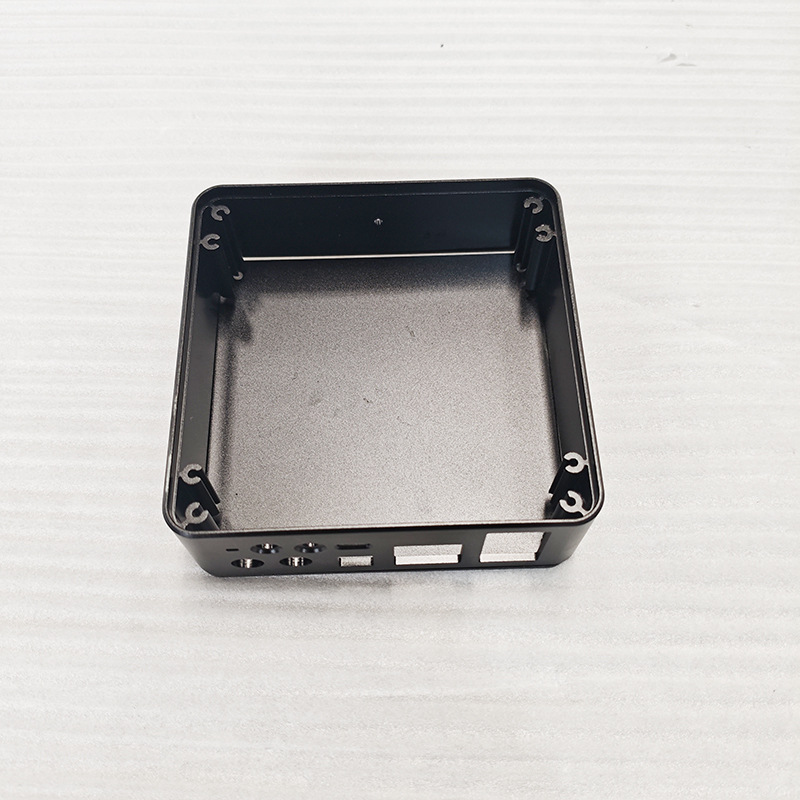

Custom PCB Mounting Layout

PCB mounting holes and internal supports are machined to match the board dimensions.

We pay attention to mounting hole positions, standoff heights, and component clearance. These details help prevent assembly interference between the PCB, housing, and cover.

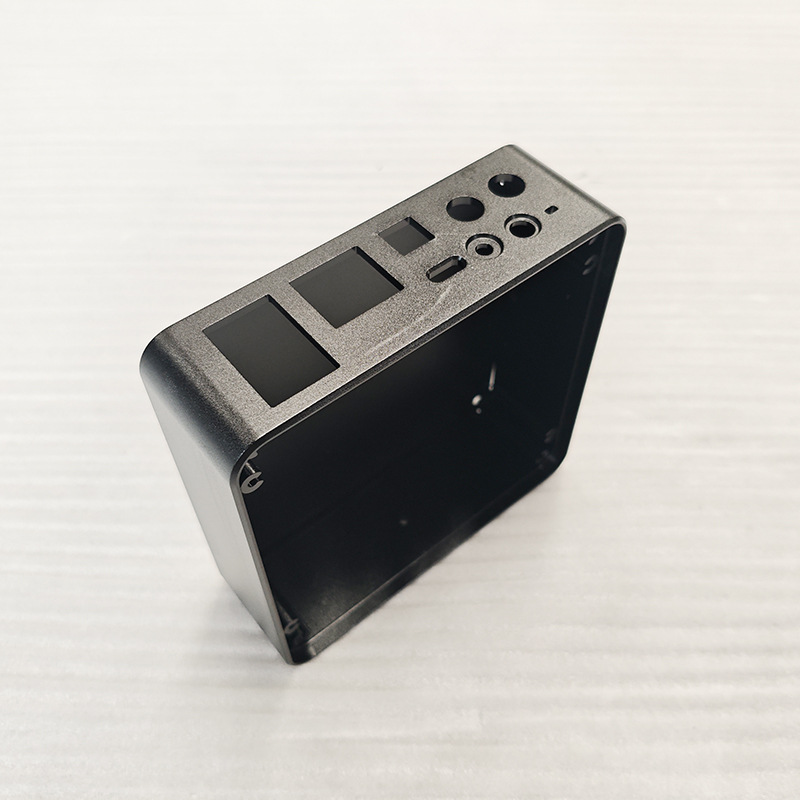

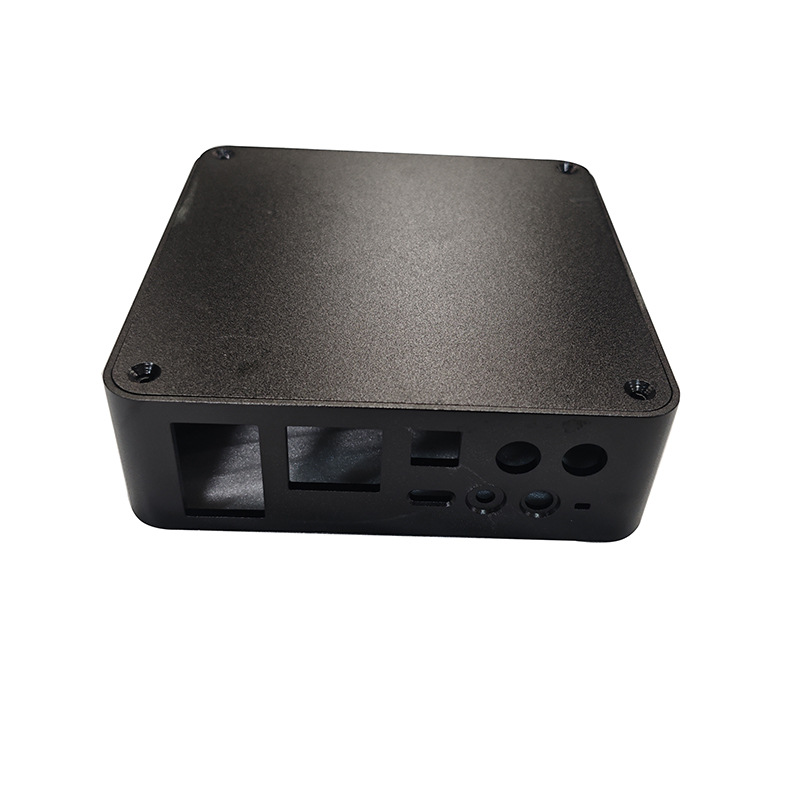

Precision Connector Cutouts

Connector openings can be machined for USB, RJ45, D-Sub, power connectors, cable glands, and other interfaces.

For panel-mounted connectors, the opening needs to match both the connector body and its fixing hardware. We check the position relative to the PCB before machining.

Internal Assembly Space

An enclosure may look large enough from the outside but still have insufficient space for tall components, wiring, or connectors.

We consider the usable internal dimensions, PCB position, and installation direction when reviewing the design.

Aluminum Housing Construction

Aluminum provides a good balance of weight, strength, thermal conductivity, and machinability for electronic housings.

For designs with a consistent cross-section, an extruded housing can reduce machining time.

You can explore our custom aluminum extrusion enclosures for related PCB housing designs.

Custom Covers and Mounting Features

We machine screw holes, locating shoulders, cover recesses, wall-mounting holes, and brackets according to the assembly requirements.

For equipment that needs frequent maintenance, cover accessibility and screw positions should be considered early in the design.
