Custom Deep Drawn Motor Housings with Precision Shaft Assembly

Custom Manufacturing

Send us your 2D/3D drawings, material requirements, housing dimensions, shaft specifications, tolerances, and surface finish requirements. We can review your design and recommend a suitable forming and assembly process.

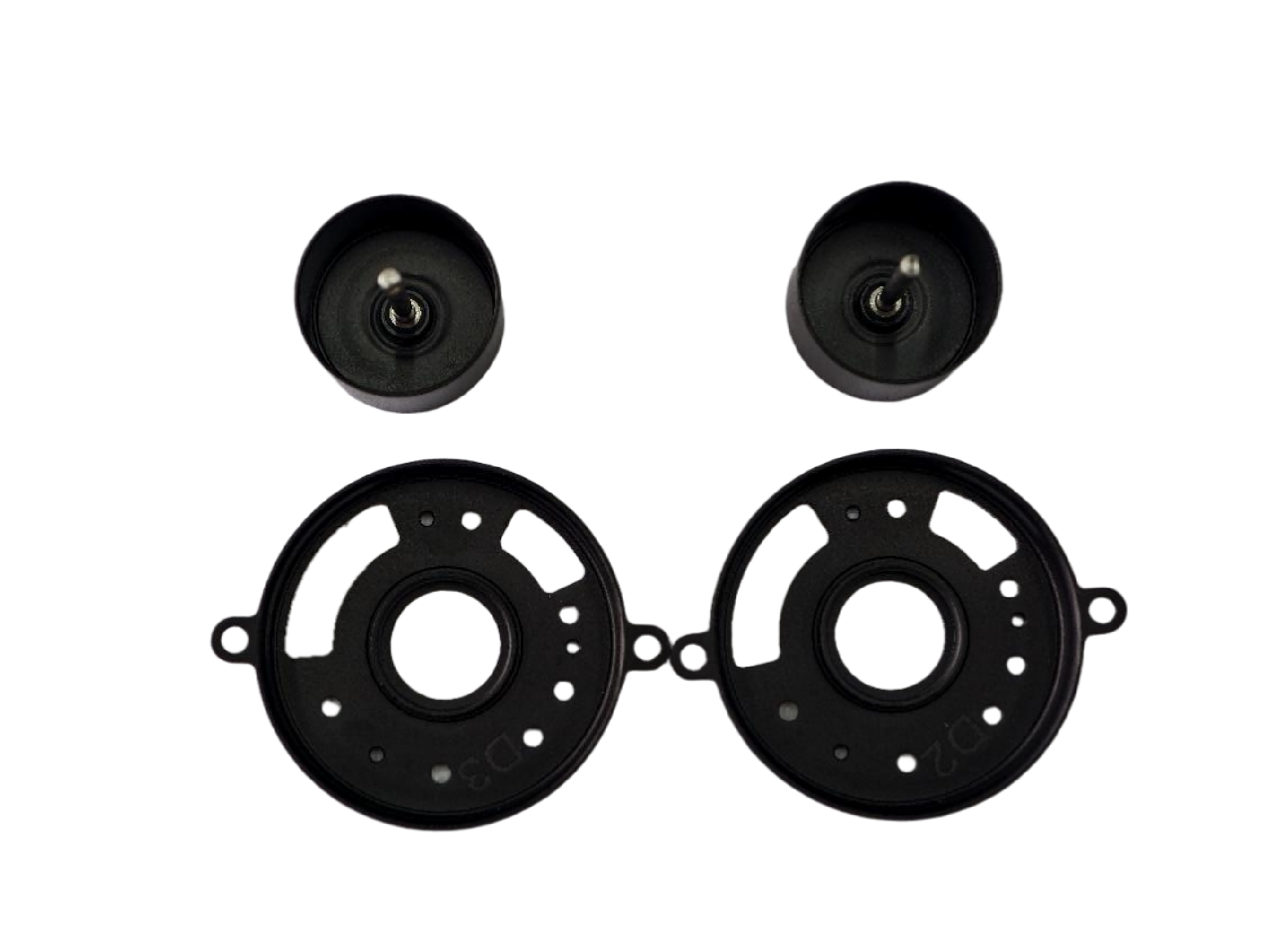

Custom deep drawn motor housings and shaft assemblies
Housing material: SPCD steel
Shaft material: SUS420J2 stainless steel
General dimensional tolerance: ±0.05 mm
End-face flatness and parallelism: ≤0.02 mm
Inner/outer diameter and end-face runout: <0.04 mm
Shaft push-out force: >1000 N
Torque resistance: >1 N·m
Precision deep drawing, shaft riveting, and welding
Custom manufacturing based on customer drawings

Our custom deep drawn motor housings are made from SPCD steel with SUS420J2 shafts, using precision deep drawing and shaft riveting to achieve tight tolerances, good concentricity, and reliable assembly.

Used in drones, consumer electronics, electric vehicles, medical devices, and industrial automation where accurate shaft alignment and consistent motor performance are required.

Manufacturing Process

Ironing deep drawing → grinding → tapping → e-coating → screen printing → shaft riveting → welding

This process helps control housing flatness, concentricity, and shaft alignment while maintaining consistent quality in volume production.

OEM & Custom Manufacturing: Send your 2D DWG or 3D STEP drawings to info@hofengfab.com for a custom quote, or visit Hofengfab to explore our manufacturing capabilities.

CMM Inspection & Quality Control

For precision motor mounting parts, we pay close attention to mounting face flatness, hole positions, and bore alignment. CMM inspection can be used to verify critical dimensions and geometric tolerances against customer drawings, helping ensure a proper fit during assembly.
