Aluminum Mounting Plate

Product Name: Aluminum Mounting Plate
Material: Aluminum alloy
Manufacturing Process: CNC milling, drilling, countersinking, and tapping
Surface Finish: Natural machined aluminum
Plate Size: Approx. 8 x 5 x 1 inches (supplier-listed dimensions; verify actual plate size)
Mounting Positions: 4 adjustable positions
Engine Position Change: Approx. 0.17-inch upward crankshaft centerline offset
Engine Compatibility: LS1, LS2, LS3, LS6, LSX, LQ4, LQ9, LR4, L33, and related LS-series engines
Application: LS engine conversion using SBC-style chassis mounts
Package Weight: Approx. 1.01kg

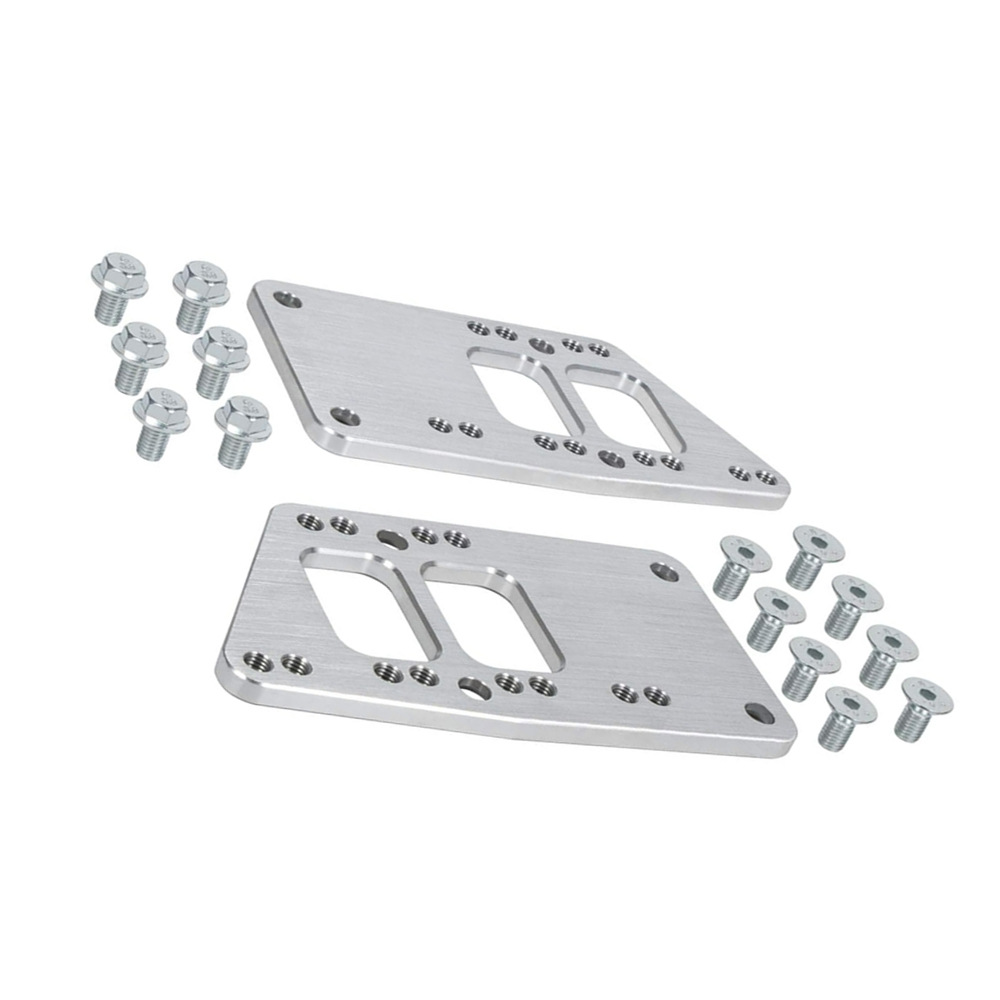

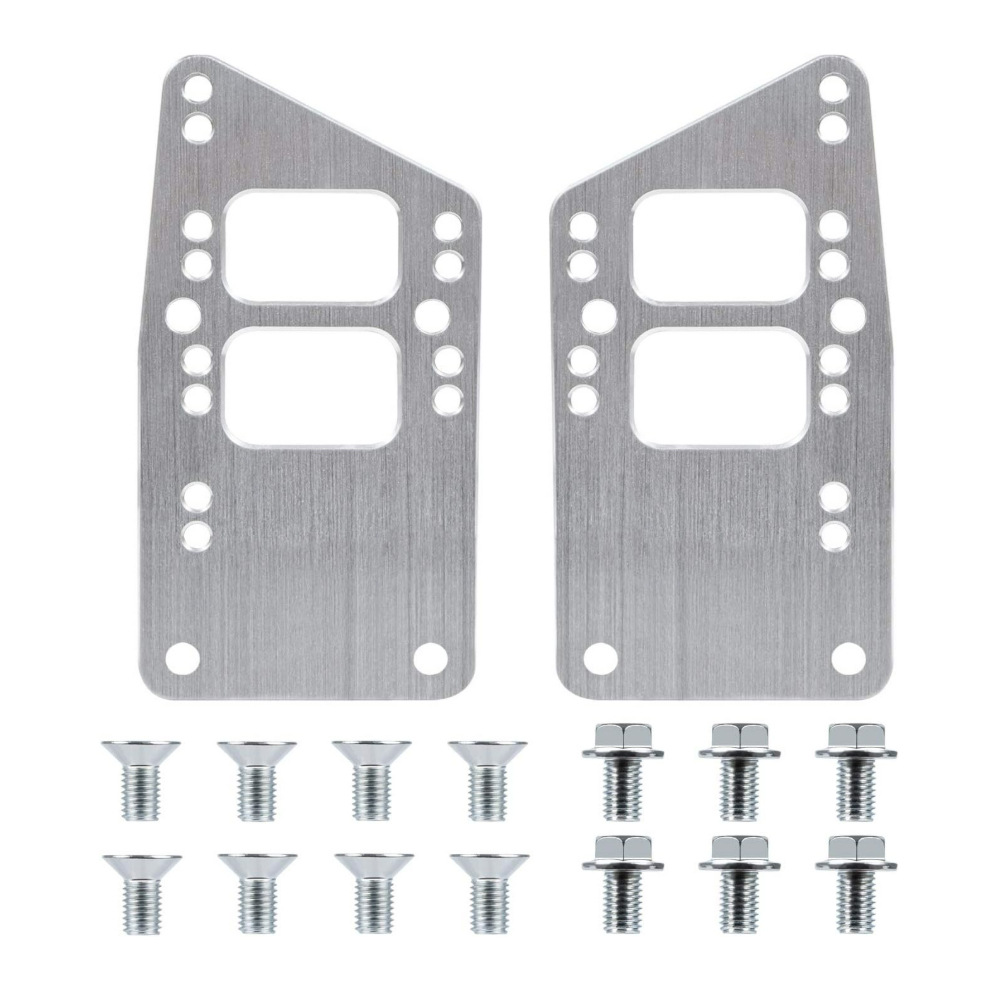

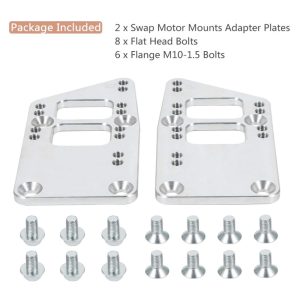

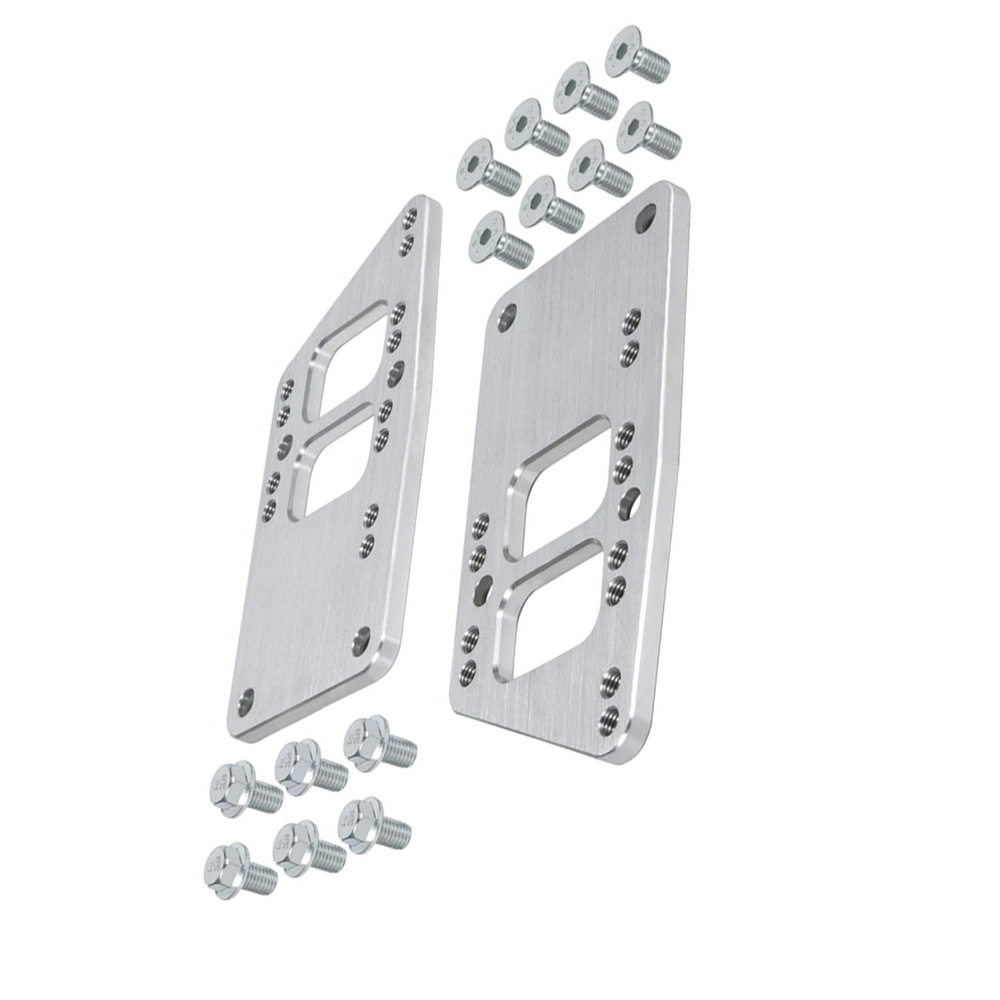

Included Hardware: 2 adapter plates, 8 flat-head bolts, and 6 M10-1.5 flange bolts

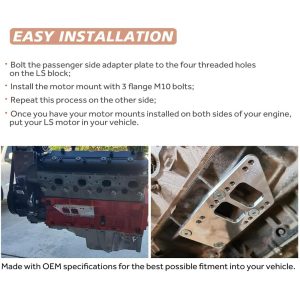

LS Swap Compatibility: Designed to help install LS-series engines in vehicles with existing SBC-style engine mounts. Vehicle-specific fitment should be checked before ordering.
Four Mounting Positions: Multiple hole patterns allow adjustments to engine placement for different swap configurations.
CNC Machined Aluminum: Precisely machined mounting holes, countersinks, and relief openings help the plates fit against the engine block and mounting brackets.

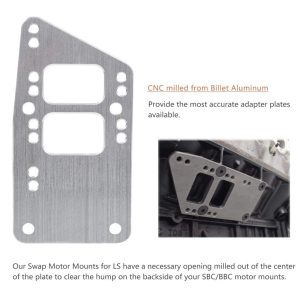

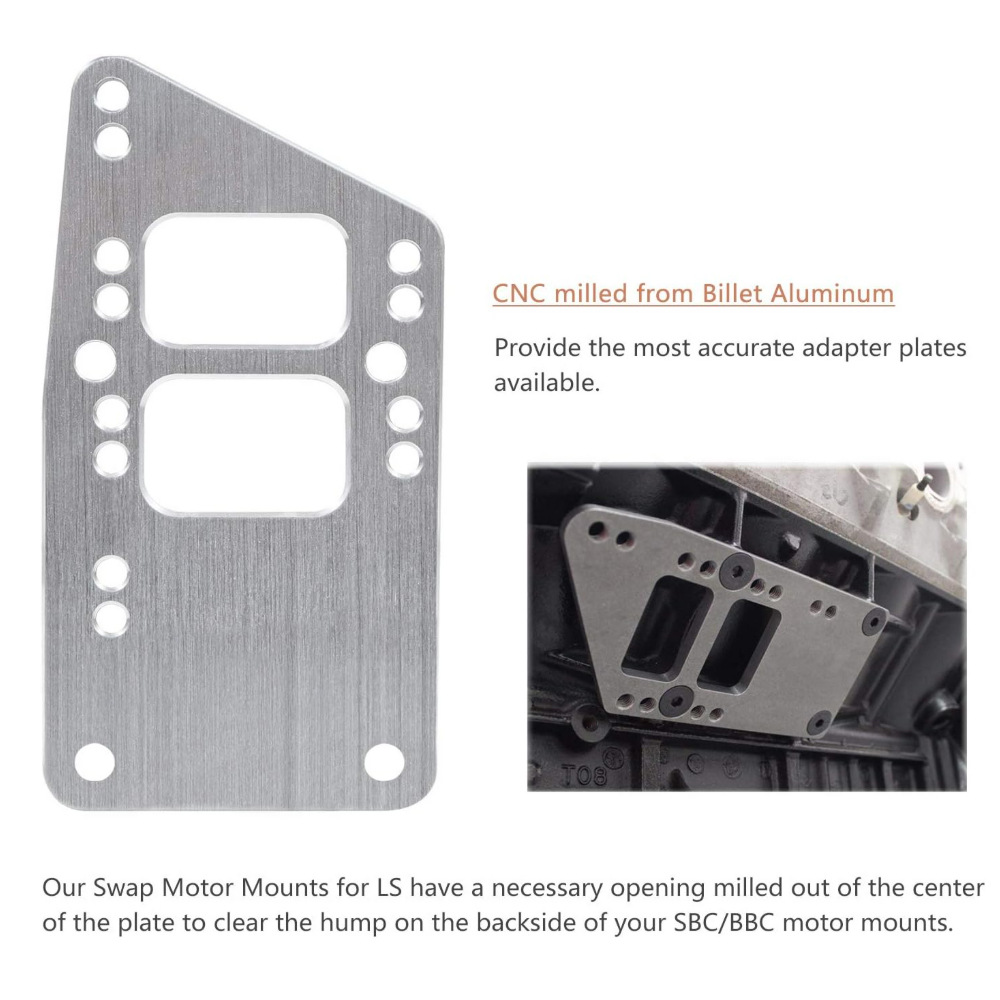

Center Relief Cutout: Provides clearance for raised features on certain SBC/BBC motor mount brackets without additional grinding.
Complete Hardware Kit: Includes two aluminum adapter plates and mounting bolts for installation.

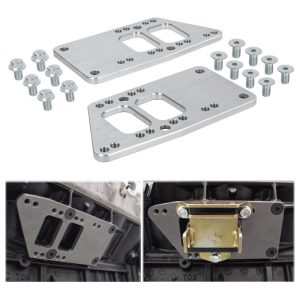

This aluminum mounting plate is designed for LS engine swaps into vehicles originally equipped with Small Block Chevy (SBC) engine mounts.

CNC machined from aluminum, the adapter plates feature four mounting positions, allowing adjustment of the LS engine location while retaining the existing chassis-side mounts.

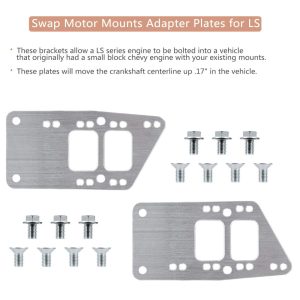

The plates move the crankshaft centerline approximately 0.17 inches upward. A center relief opening provides clearance for raised features on the back of certain SBC/BBC engine mount brackets.
