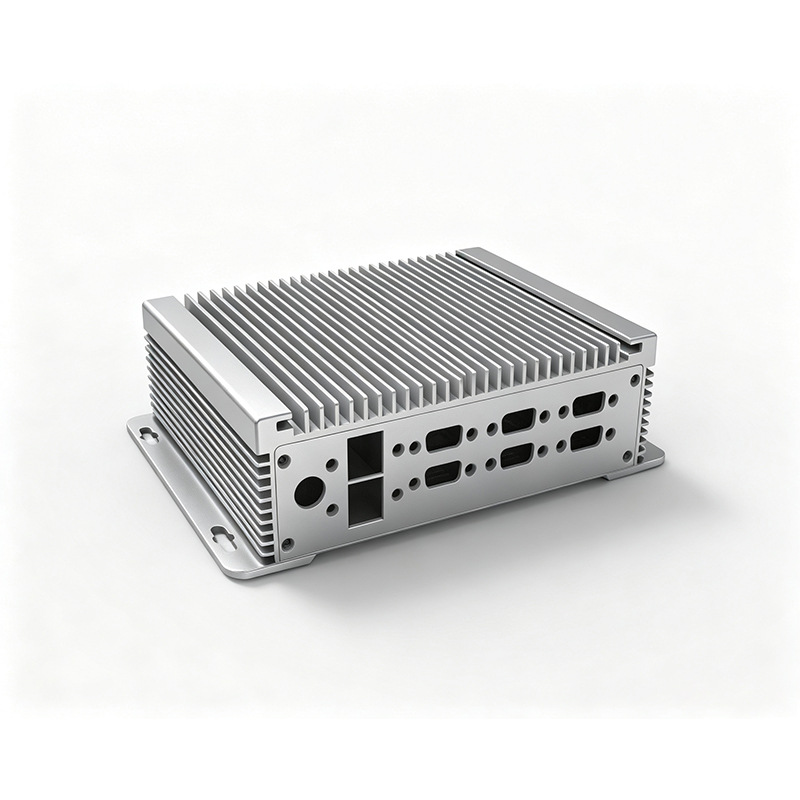

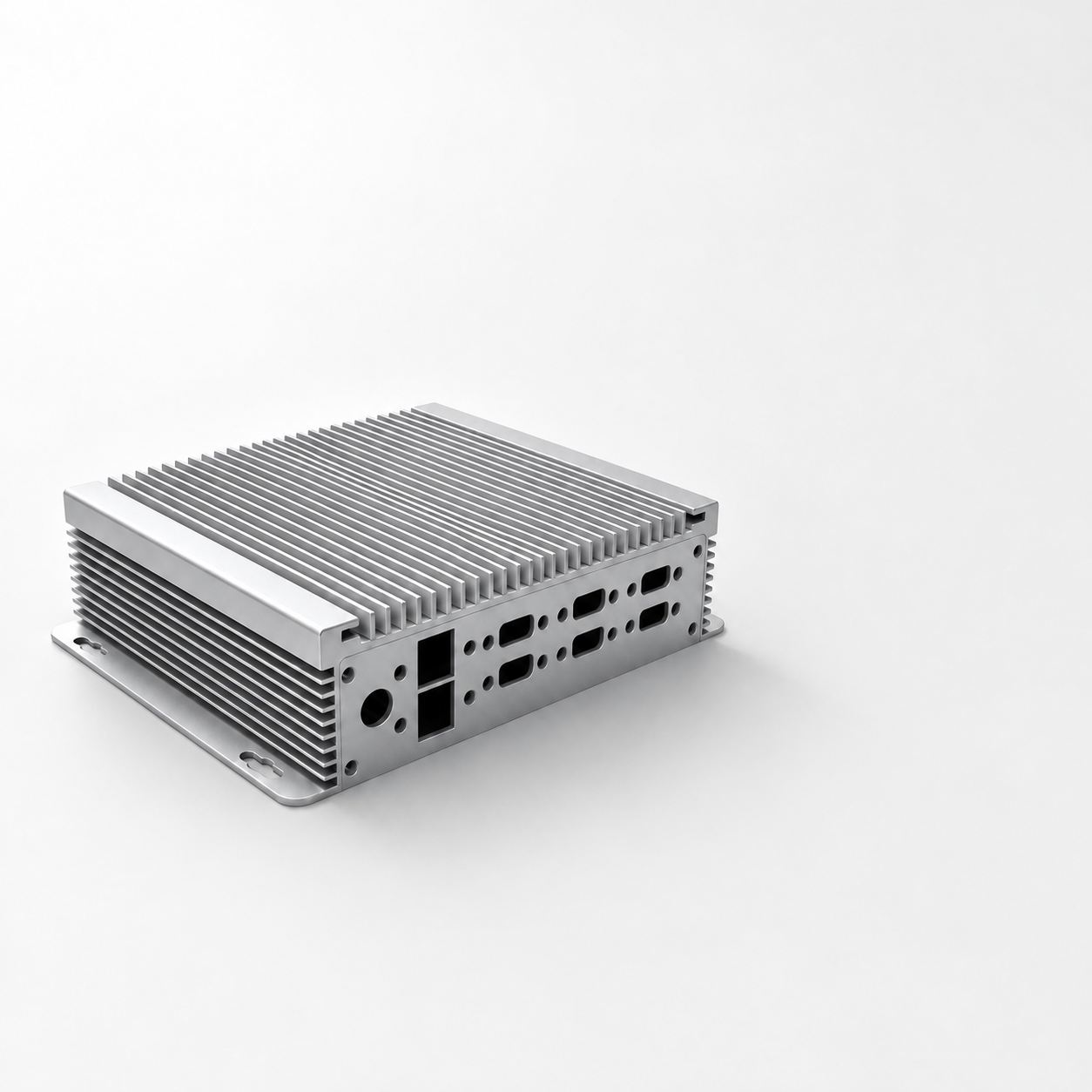

Aluminum Heat Sink

Model: 180X51.85-148
Material: Aluminum 6063
Manufacturing Process: Aluminum extrusion and CNC machining
Surface Finish: Anodized
Hardness: HV60–80
Overall Length: 187.49mm
Overall Height: 54.35mm
Internal Cavity Height: 37.85mm
Internal Width: 156.50–160.50mm
Top Section Length: 179.70mm
Assembly: Interlocking, weld-free design
Listed Weight: Approx. 1,000g

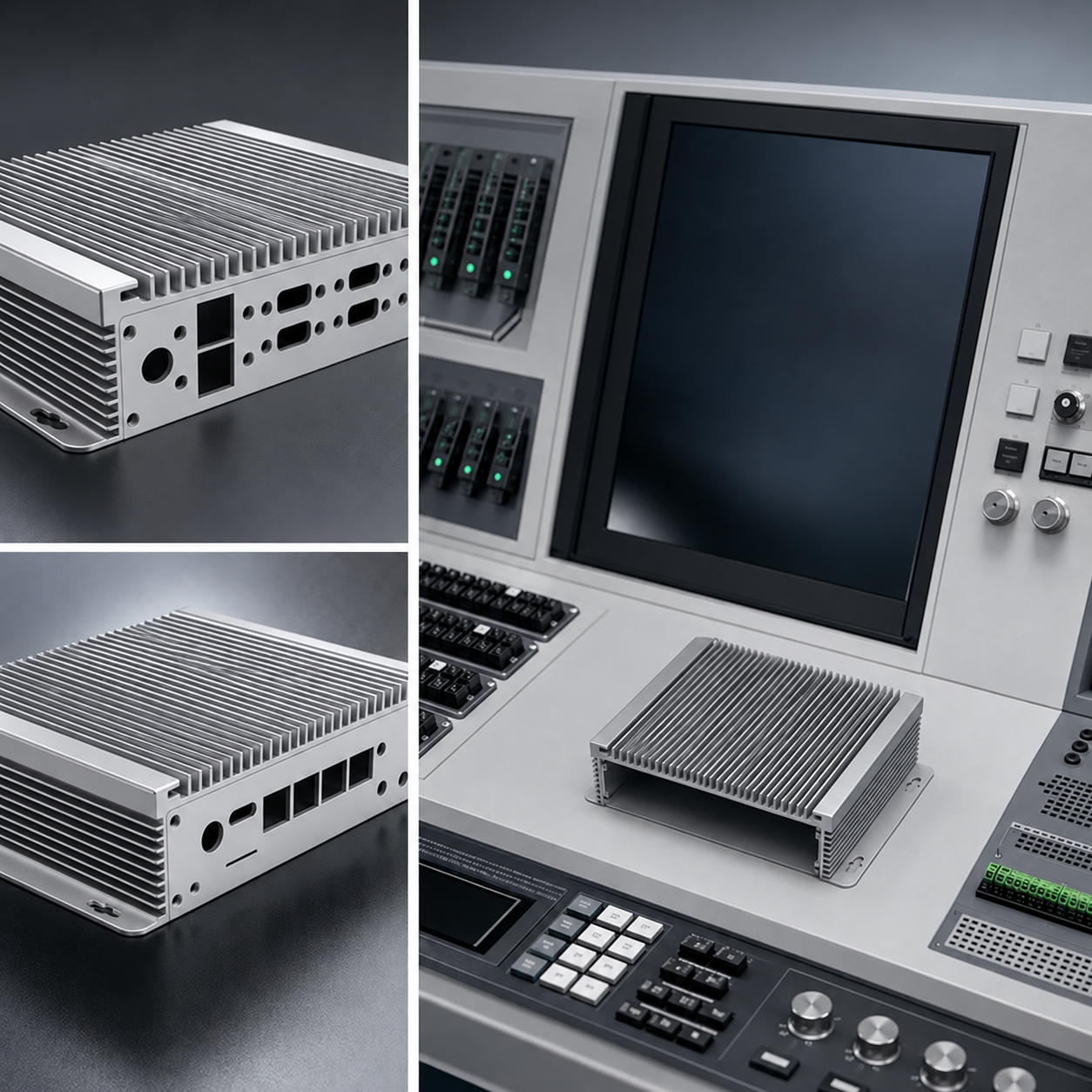

Applications: Industrial networking, communication equipment, embedded systems

Integrated Cooling Fins: The aluminum extrusion provides additional surface area to dissipate heat without a cooling fan.
6063 Aluminum Construction: Offers good thermal conductivity and is suitable for precision extrusion and machining.

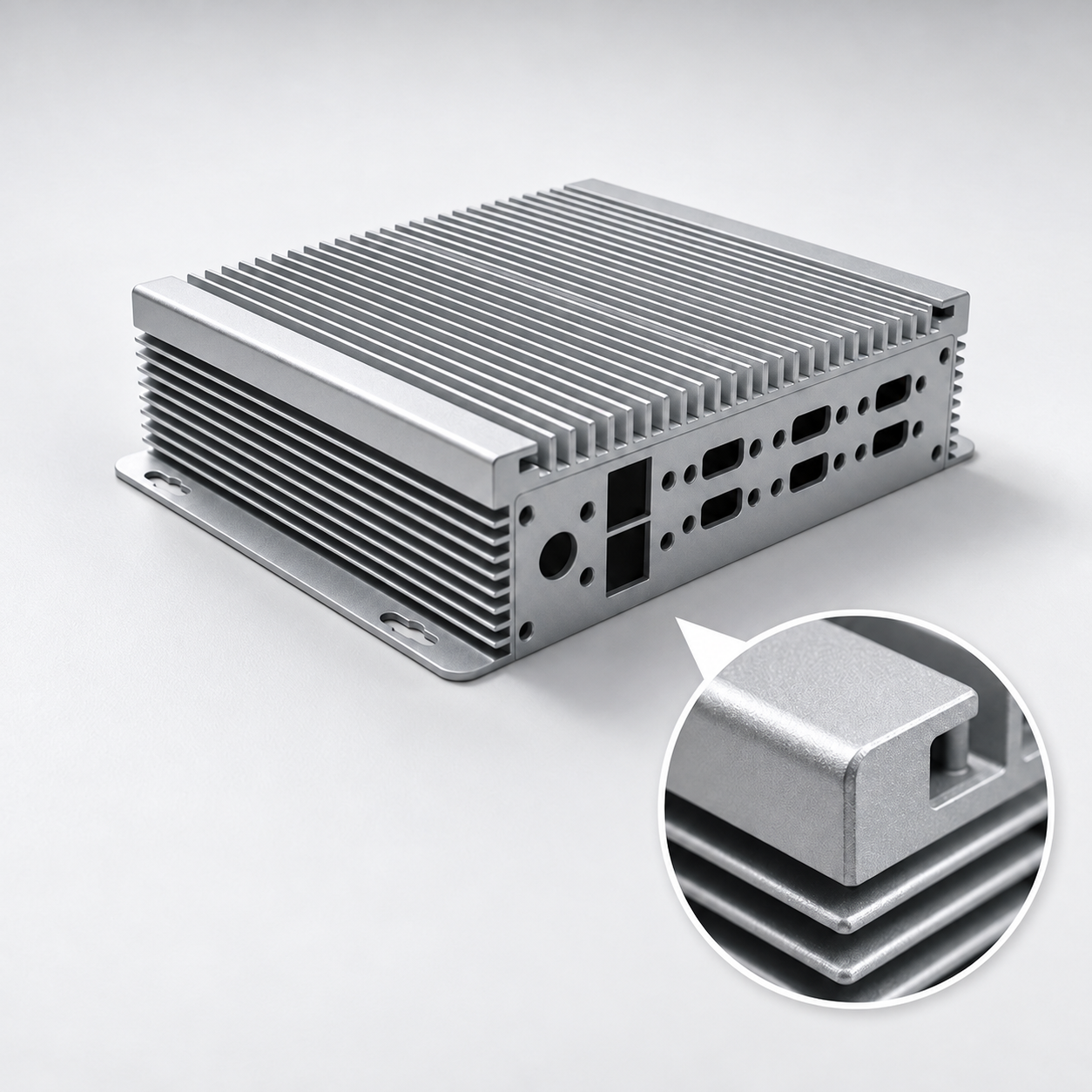

Weld-Free Assembly: Interlocking grooves allow the housing sections to be assembled and removed for maintenance.
CNC Machined Features: Mounting holes, threaded holes, and USB, RJ45, or power connector openings can be machined to match the PCB design.
Anodized Finish: Provides surface protection and improved corrosion resistance.
Customizable Design: Fin dimensions, enclosure length, mounting features, and panel openings can be modified for different equipment requirements.

This aluminum heat sink is made from 6063 aluminum alloy with integrated cooling fins and an anodized surface. Designed for industrial networking equipment, fanless computers, and electronic control systems, it combines passive cooling with a protective aluminum housing.

The extruded fin structure provides a larger surface area for heat dissipation, while the interlocking design allows assembly without welding. CNC machining can be used to add connector cutouts, mounting holes, and other features based on the equipment layout.

Need a custom aluminum heat sink or CNC machined heat sink?

Send your 2D DWG or 3D STEP drawings for a quotation.
