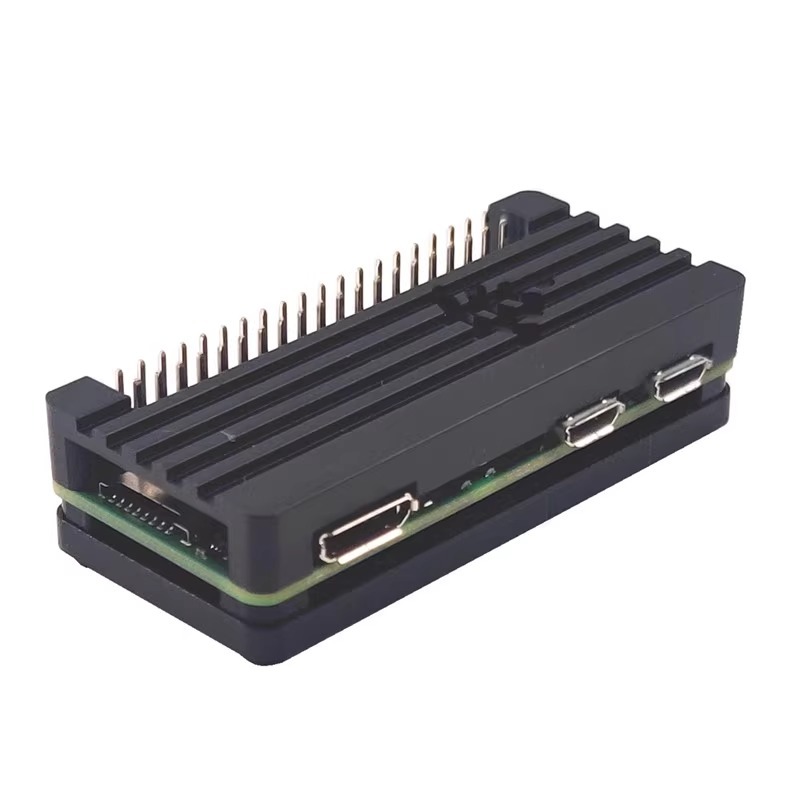

Aluminum Electronic Enclosure

Product Type: Aluminum heatsink case
Compatibility: Raspberry Pi Zero / Zero W / Zero WH / Zero 2 W
Dimensions: 65 x 30 x 10mm
Material: Aluminum alloy
Color: Black
Cooling Method: Passive cooling with integrated fins
Thermal Interface: Thermal conductive pad
Mounting: Screw assembly

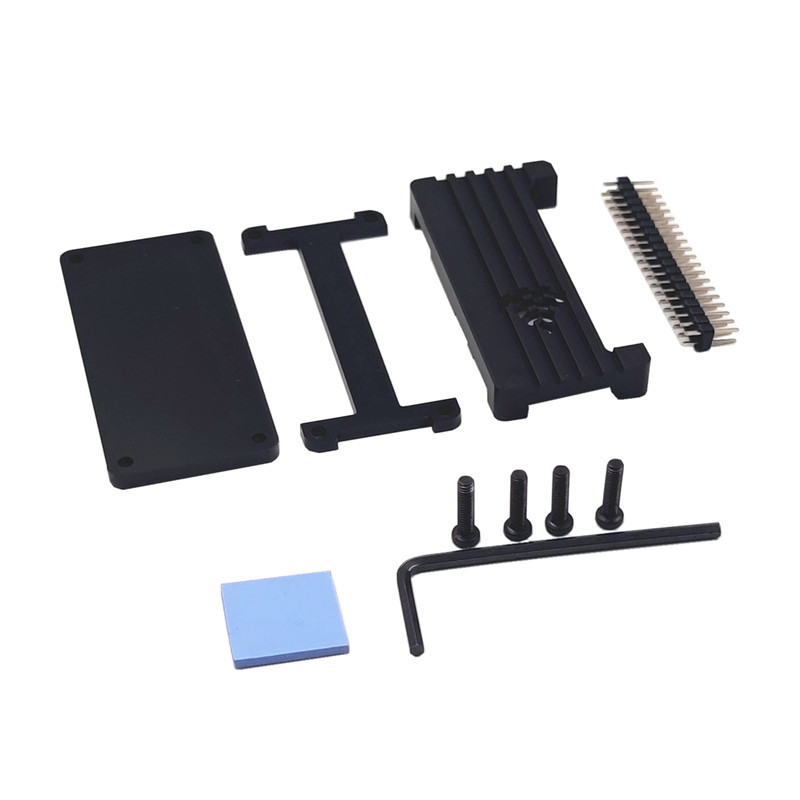

Optional Kit: 1 housing, 1 GPIO pin header, and 1 pack of mounting screws

Passive Cooling: The aluminum housing helps transfer heat away from the processor without a fan. Actual cooling performance depends on thermal contact, workload, and airflow.
Compact Design: The 65 x 30 x 10mm case is designed around the Raspberry Pi Zero form factor.
Connector Access: The housing layout allows access to the board's main connectors.
GPIO Compatibility: Available with an optional pin header. Raspberry Pi Zero WH already has a pre-soldered GPIO header, so check the selected configuration before ordering.
Thermal Pad Included: Helps establish contact between the processor and aluminum heatsink surface.

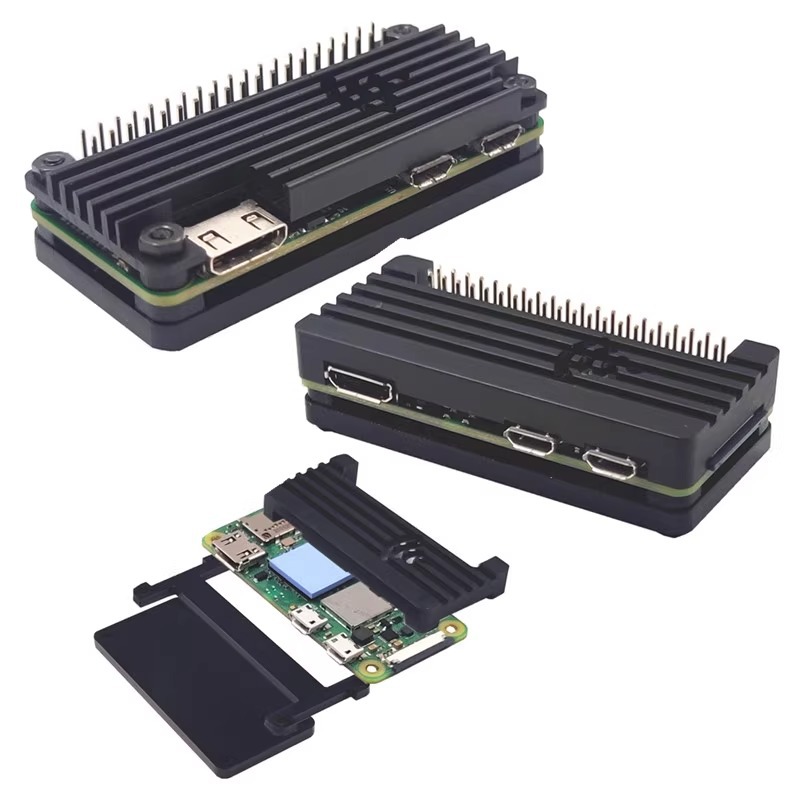

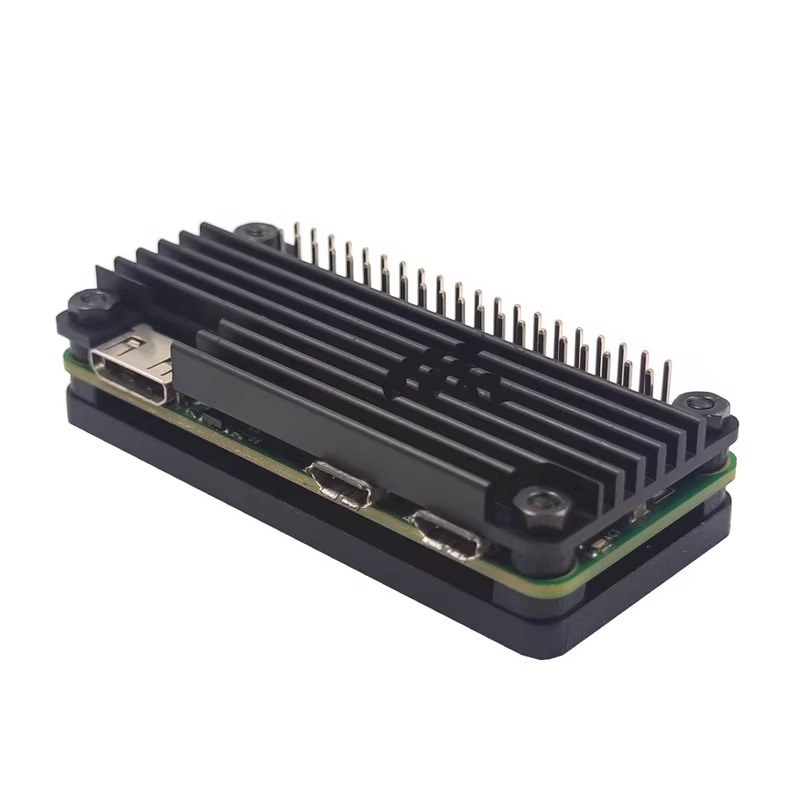

This 65 x 30 x 10mm aluminum heatsink case is designed for Raspberry Pi Zero, Zero W, Zero WH, and Zero 2 W boards.

The aluminum housing features cooling fins and a thermal pad to transfer heat from the processor to the outer case. It provides passive cooling without a fan while protecting the board during everyday use.

The compact design keeps the main connectors accessible, making it suitable for embedded electronics, DIY projects, and small industrial devices.

Need a different size, mounting layout, or heatsink design?

Hofengfab manufactures custom aluminum enclosure parts for electronics, including custom cooling fins, PCB mounting holes, connector cutouts, and internal cavities.

Our CNC machined enclosure capabilities cover prototyping and production, with material and surface finish options to match your requirements.

Send your 2D DWG or 3D STEP drawings for a quote: info@hofengfab.com
