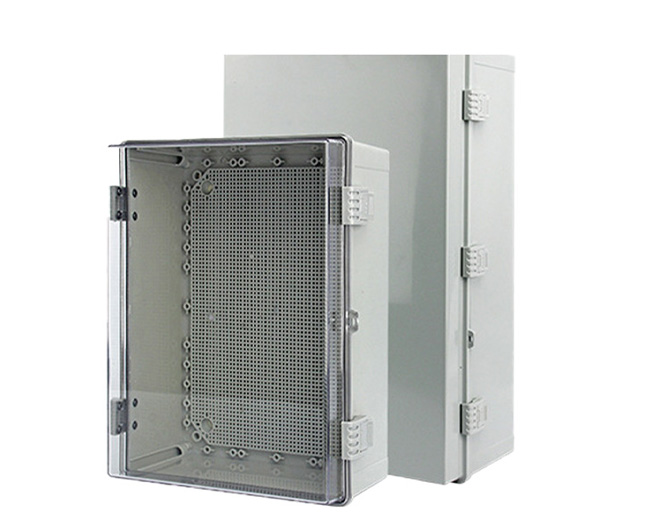

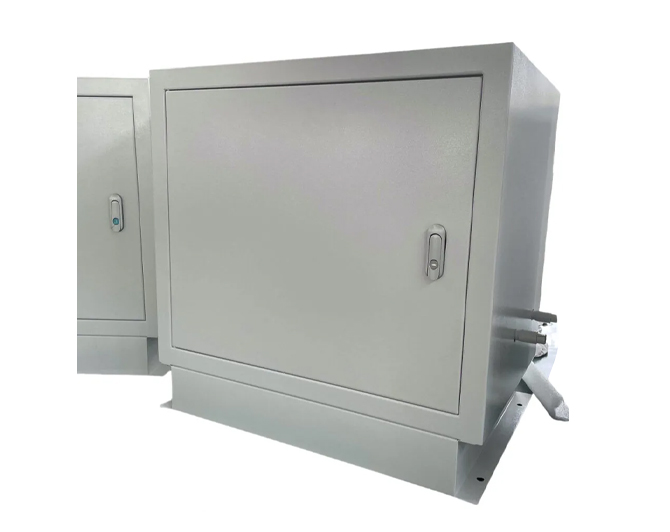

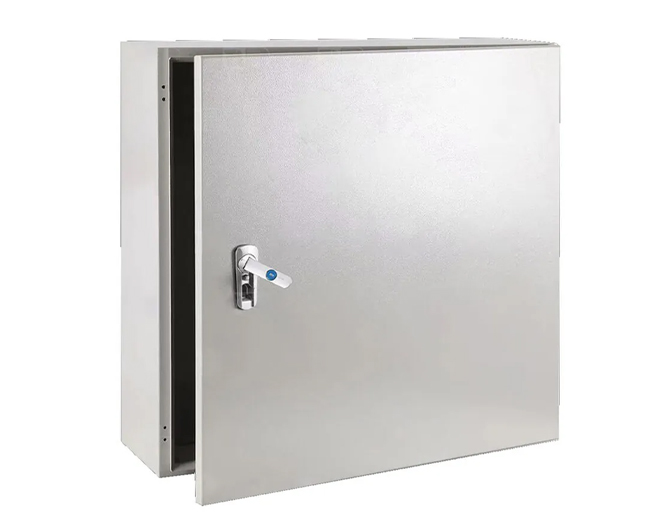

What Is a NEMA 2 Enclosure?
NEMA 2 enclosures are designed for indoor use, offering protection against light drips, splashing water, and limited dust ingress. NEMA 2 enclosures are a step up from NEMA 1 enclosures because they provide protection from liquids that NEMA 1 enclosures don’t offer. They provide this protection through durable design that helps the enclosures shed liquids from their surface and keeps them tightly sealed against dirt.
fabricant d'armoires électriques en aluminium
Hofengfab est spécialisée dans les solutions sur mesure, en petites séries et à grande diversité de modèles, proposant plus de 1 600 options personnalisables adaptées à vos spécifications exactes, notamment en termes de hauteur, largeur, profondeur, matériau, puissance nominale et certifications. Nous garantissons des délais d'exécution rapides : les échantillons sont prêts sous 7 à 10 jours ouvrés et la production en série est achevée sous 15 à 25 jours ouvrés. Que vous ayez besoin d'un petit lot ou d'une commande importante, nous livrons dans les délais.
Why Choose NEMA 2 Enclosure?
Based on over a decade of enclosure manufacturing experience, we’ve seen how incorrect enclosure selection leads to costly downtime. For instance:
Case Example: A manufacturing client in Ohio experienced repeated relay failures due to high ambient humidity and light condensate near their electrical panels. After switching from NEMA 1 to NEMA 2 enclosures, failure incidents dropped by 90% within 3 months, saving over $12,000 in repair and loss costs.
Compliance & Standards
All our NEMA 2 enclosures are manufactured in accordance with:
UL 50 / 50E certification
NEMA 250 standards
ISO 9001:2015 quality management systems
Optional RoHS and CE markings for international markets
Un service tout-en-un pour la conception, le moulage et le moulage par injection.
Services de fabrication sur mesure
Spécialisée dans l'usinage de précision de la tôle, notamment le pliage, la découpe au laser, le soudage brossé, le polissage, l'estampage, etc.
Livraison dans les délais.
Prototyping typically completed within 15 days.
Le délai de fabrication standard est d'environ 15 jours, en fonction de la quantité et de la complexité du produit.
Produits associés
Nous accompagnons des secteurs tels que l'automatisation industrielle, les télécommunications et les systèmes en rack, les énergies renouvelables, les équipements médicaux, ainsi que les applications militaires et aérospatiales, en proposant des solutions de boîtiers robustes et adaptées à chaque application, conçues pour garantir une fiabilité optimale.

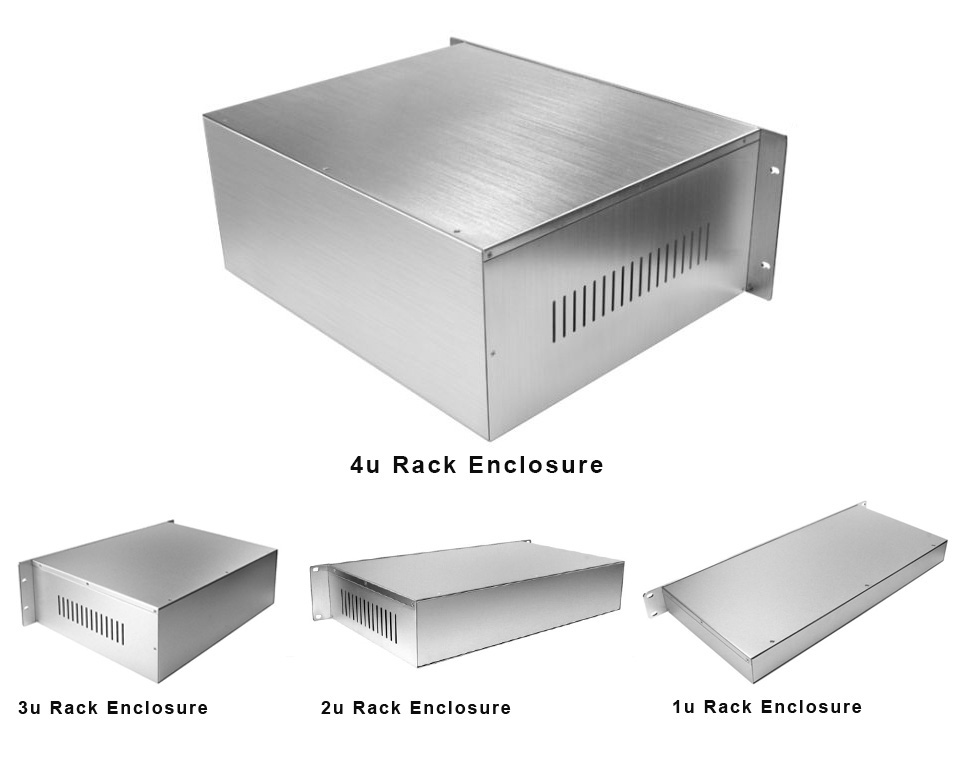

Boîtier pour montage en rack 19 pouces
Boîtier étanche en plastique
Boîtier électrique
FAQ
What does a NEMA 2 enclosure protect against?
NEMA 2 enclosures are designed for indoor use, offering protection against limited amounts of falling water (like dripping or splashing) and light levels of dust. They are suitable for locations with moderate humidity, such as mechanical rooms, basements, or near industrial washdown areas (non-direct).
How is NEMA 2 different from NEMA 1 or NEMA 4?
NEMA 1 provides only basic protection against contact and dust.
NEMA 2 adds drip protection, making it better suited for damp environments.
NEMA 4 is fully waterproof and suitable for outdoor or washdown environments.
If your application is indoors with occasional moisture exposure but doesn’t require full waterproofing, NEMA 2 is a cost-effective middle ground.
Can I use a NEMA 2 enclosure outdoors?
Non. NEMA 2 enclosures are not rated for outdoor use. They lack protection against rain, windblown dust, and UV exposure. For outdoor environments, consider NEMA 3, 3R, or 4/4X enclosures depending on your specific requirements.
Are NEMA 2 enclosures waterproof?
Not exactly. They are drip-tight, meaning they can resist vertically falling water or light splashes, but they are not sealed against high-pressure water, heavy condensation, or immersion. For true waterproofing, you’ll need NEMA 4 or 6-rated enclosures.
What materials are typically used for NEMA 2 enclosures?
Most NEMA 2 enclosures are made from:
Powder-coated cold-rolled steel (most common for dry environments)
Stainless steel (for mildly corrosive or humid interiors like food processing zones)
The material choice depends on your environmental exposure, aesthetics, and durability needs.
Are NEMA 2 enclosures UL certified?
Yes, reputable manufacturers provide UL 50 / 50E listed NEMA 2 enclosures. Always check for UL labeling if third-party certification is required by your application or jurisdiction.
What types of equipment are housed in NEMA 2 enclosures?
They are commonly used to protect:
Panneaux de commande
Terminal blocks
Power distribution units
HVAC or lighting system controls
…in indoor commercial or light industrial environments.
Do NEMA 2 enclosures have gaskets?
Yes. A drip-tight neoprene or EPDM gasket is typically fitted between the enclosure body and door to seal out moisture and dust. Regular inspection and replacement of gaskets is recommended for long-term performance.
