A sheet metal part may look accurate before welding, but after the welding process, unexpected deformation can sometimes appear. This is especially common when working with thin sheets, long welded structures, or assemblies with multiple welding points.
For engineers and buyers, understanding why this happens can help avoid dimensional problems, assembly difficulties, and unnecessary rework.
What Causes Sheet Metal Parts to Warp During Welding?
The main reason is heat.
When welding is performed, a large amount of localized heat is introduced into a relatively small area. The heated metal expands, while the surrounding cooler material restricts this expansion.
After the welded area cools down, it contracts.
This repeated expansion and contraction creates internal stress in the material. If the stress is not evenly distributed, the sheet metal can bend, twist, or otherwise deform.
Several factors can make the problem worse.

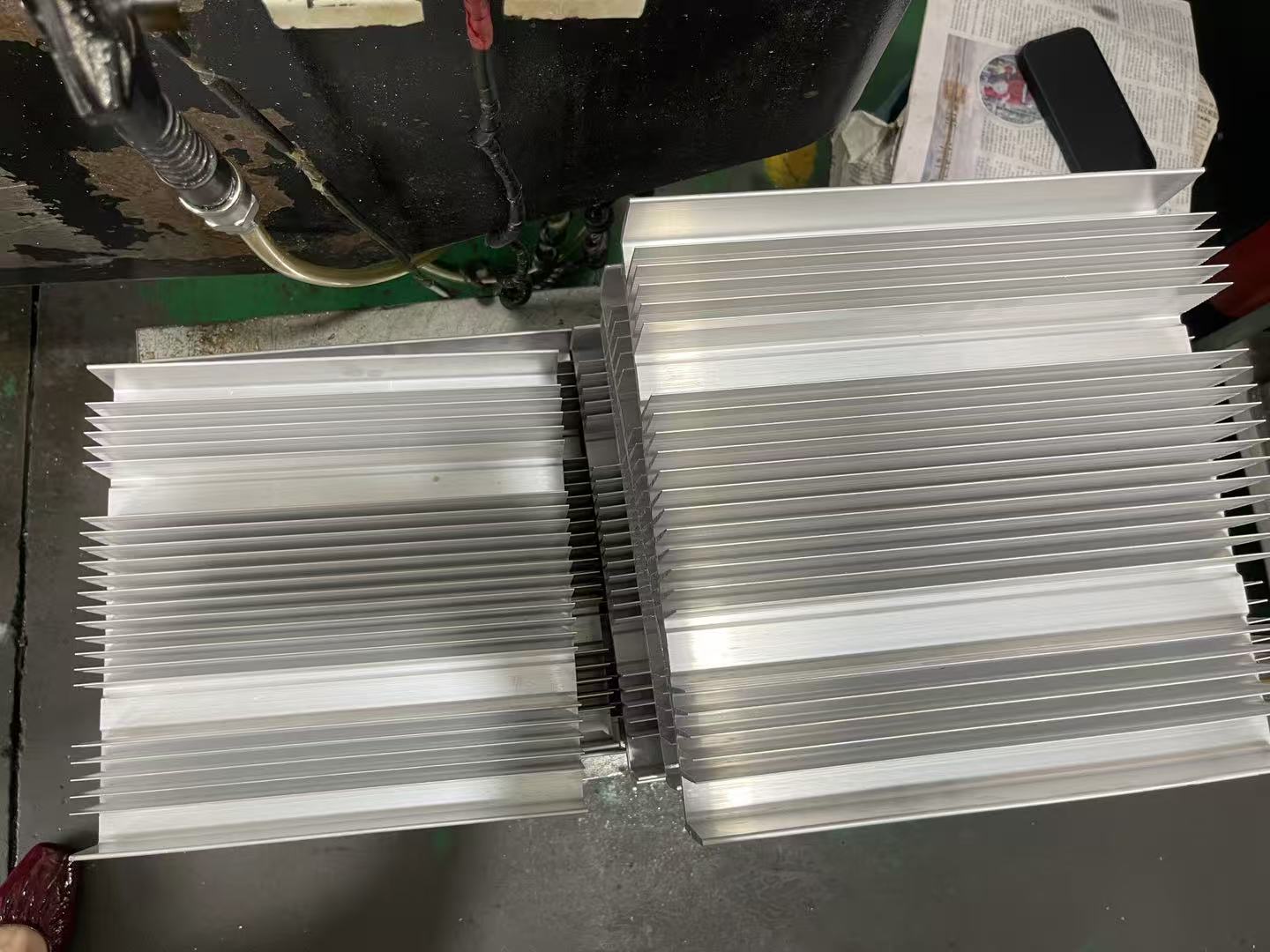

1. Thin Sheet Metal
Thin materials are generally more sensitive to welding heat.
For example, stainless steel sheets around 0.8–1.0 mm thick can experience noticeable deformation if excessive heat is concentrated in one area.
The thinner the sheet, the more carefully the welding parameters need to be controlled.

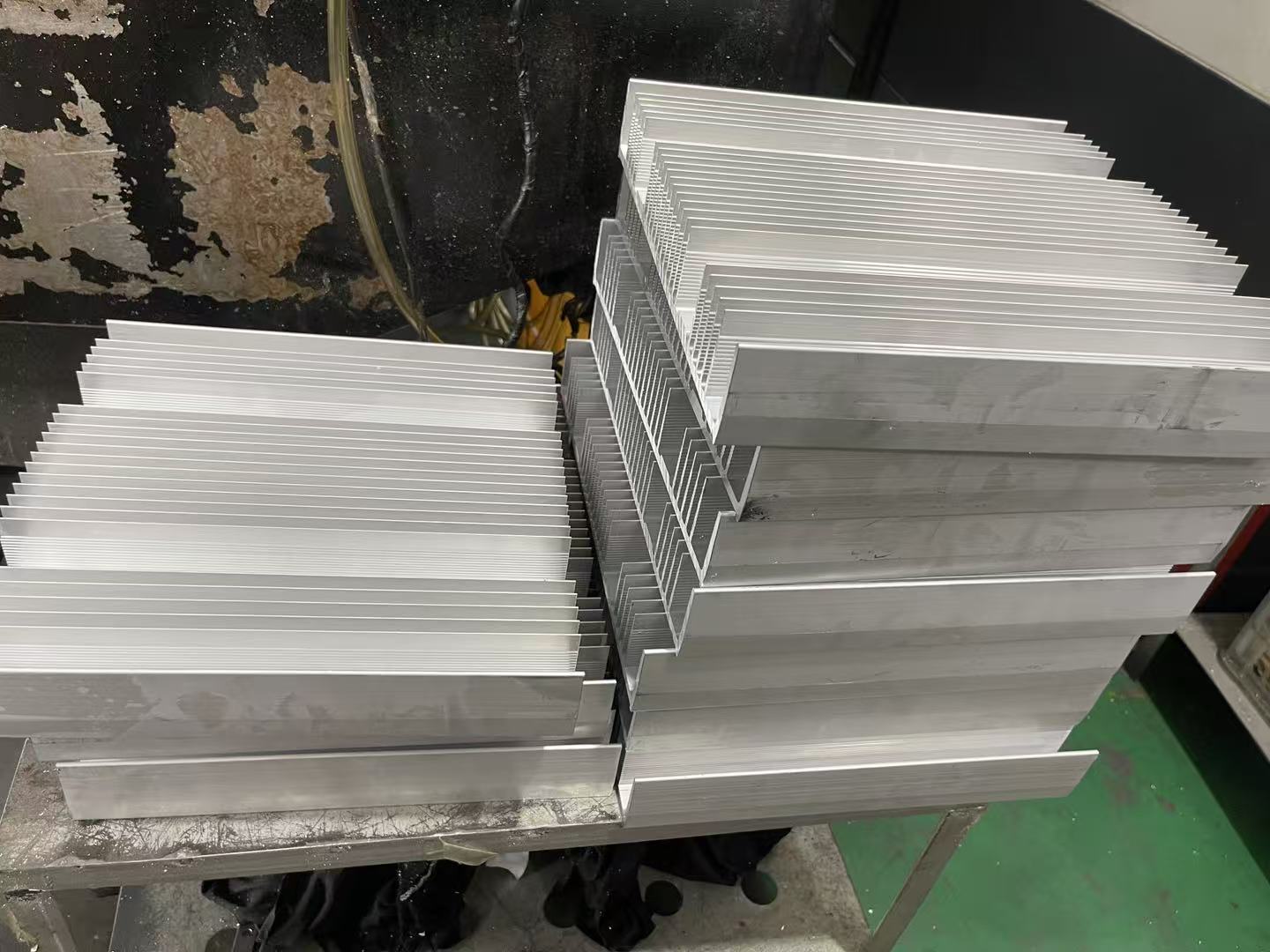

2. Long Continuous Welds
A long continuous weld introduces heat over a relatively large area.
If one side of an assembly is welded continuously while the opposite side remains relatively cool, the resulting thermal stress can pull the structure toward the welded side.
For some designs, using shorter weld segments or an appropriate welding sequence can help reduce this effect.
3. Welding Sequence
The order in which welds are made can significantly influence the final dimensions.
For example, welding all the joints on one side first may cause the entire assembly to gradually pull toward that side.
A balanced welding sequence can distribute thermal stress more evenly.
4. Poor Part Fit-Up
Welding cannot always compensate for inaccurate parts.
If two components have excessive gaps before welding, the welder may need to add more filler material or introduce more heat to complete the joint.
This can increase the possibility of deformation.
Accurate laser cutting and bending therefore play an important role before welding even begins.
How Can Welding Deformation Be Reduced?
There is no single solution that works for every welded structure. The appropriate method depends on the material, thickness, geometry, weld type, and dimensional requirements.
Here are several common approaches.
Use an Appropriate Welding Process
Different welding processes introduce different amounts of heat.
For sheet metal assemblies, the welding process should be selected according to the material and thickness.
For stainless steel fabrication, for example, TIG welding may be selected when appearance and precise heat control are important, while other processes may be more suitable for higher-volume production.
Control Welding Parameters
Welding current, voltage, travel speed, and heat input all affect deformation.
Using excessive heat does not necessarily create a stronger part. In many cases, controlled heat input can achieve the required joint strength while reducing distortion.
Use Fixtures
Fixtures can hold components in the correct position during welding.
However, fixtures should be designed carefully. Excessive restraint can sometimes create additional internal stress that is released after the part is removed from the fixture.
Balance the Welding Sequence
Instead of concentrating all welding on one area, engineers can plan the welding sequence to distribute heat more evenly.
Depending on the structure, this may involve alternating between different sides or welding locations.
Consider the Design Before Manufacturing
The best way to control welding deformation is often to consider it during the design stage.
Features such as:
- Brackets
- Frames
- Covers
- Mounting plates
- Chassis
- Welded enclosures
may require different welding strategies depending on their geometry.
For critical components, the design should consider not only how the parts will be cut and bent, but also how they will behave during welding.
Why Cutting and Bending Accuracy Matters
Welding is only one part of the manufacturing process.
Before welding begins, the individual sheet metal components must already have appropriate dimensions and geometry.
For example, inaccurate bending angles can create gaps between components. These gaps may require additional welding work and increase heat input.
A well-controlled manufacturing process therefore connects:
Laser Cutting → Bending → Fit-Up → Welding → Inspection
Each stage can influence the final dimensional accuracy of the assembly.

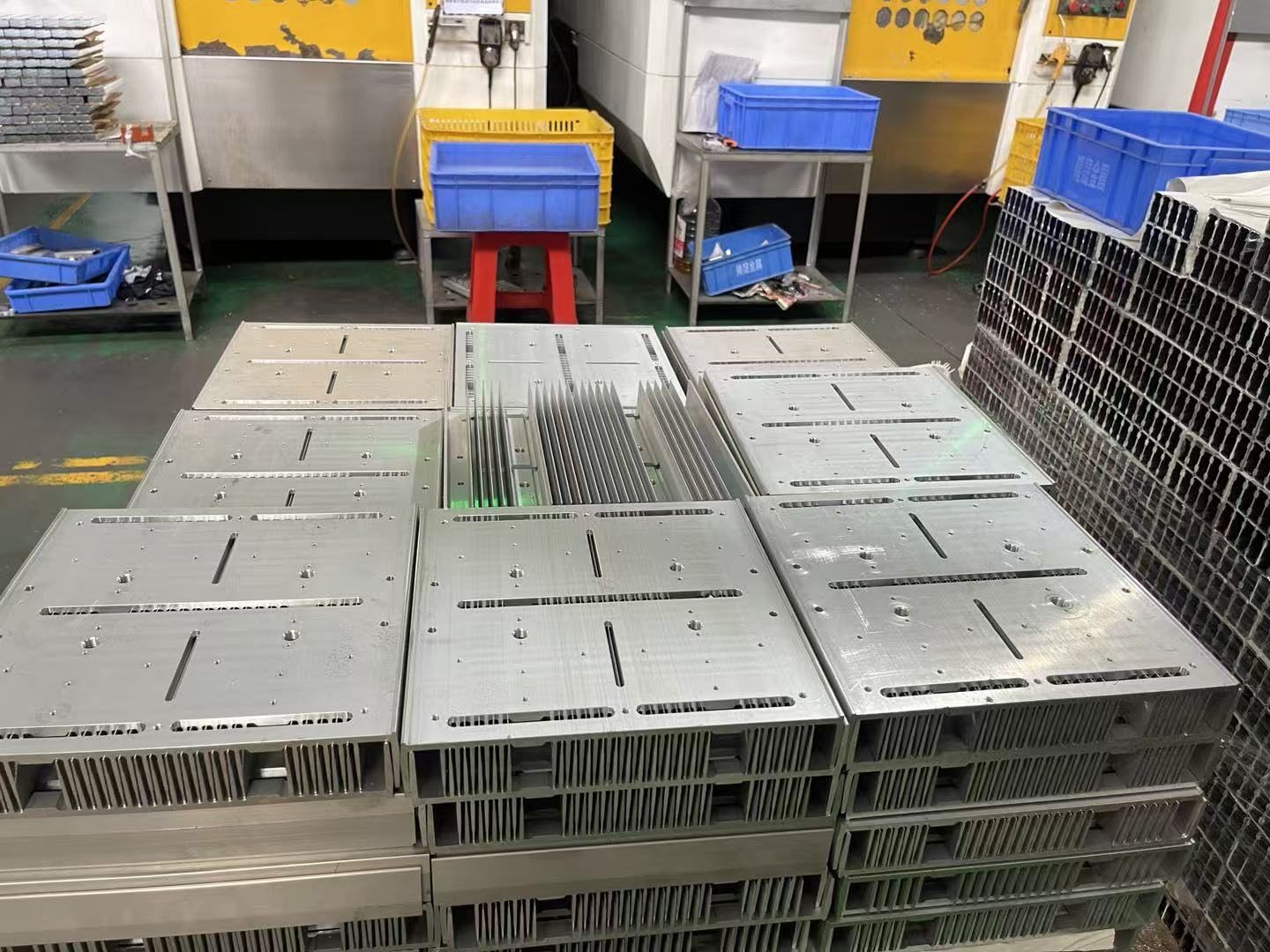

How Manufacturers Control Welding Deformation
For custom sheet metal projects, manufacturers typically consider several factors before production:
- Material and thickness
- Part geometry
- Welding method
- Weld length and location
- Welding sequence
- Fixture requirements
- Required dimensional tolerances
- Surface finishing requirements
- Final inspection criteria
For high-precision assemblies, these factors should ideally be discussed before production rather than after deformation occurs.
Choose Hofeng
Welding deformation is usually not caused by a single mistake. It is the result of heat input, material properties, joint design, welding sequence, and manufacturing accuracy working together.
By controlling these factors from the design stage through final inspection, manufacturers can significantly reduce distortion and improve the dimensional consistency of welded assemblies.
For projects involving sheet metal welding, choosing a manufacturer that can control cutting, bending, welding, and inspection as one integrated process can help reduce production risks and unnecessary rework.
