What is CNC Turning?

Turning is a process by which material is cut to create round shapes, typically using a CNC Lathe. The workpiece is placed inside the lathe and rotates while a cutter removes material until only the desired shape remains.

Turning is ideal for cylindrical parts and is primarily done using round rod material, but square and hexagonal bar stock can also be used.

The primary objective of CNC turning is to machine parts having shapes that can be formed by feeding a cutter into a rotating bar of raw material. Turning can also be used to reduce the diameter of a workpiece to a desired dimension. Lathe turning is mainly used for shaping metal or wood. CNC lathes are commonly used in metalworking, woodworking, and metal spinning processes. CNC lathes produce accurate round shapes, often with precision outer diameter (OD) and inner diameter (ID).

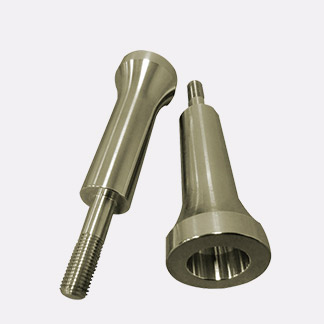

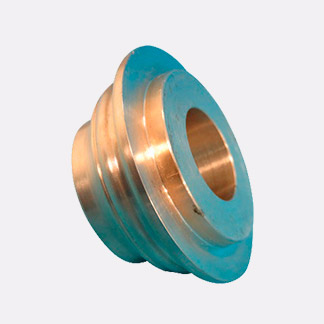

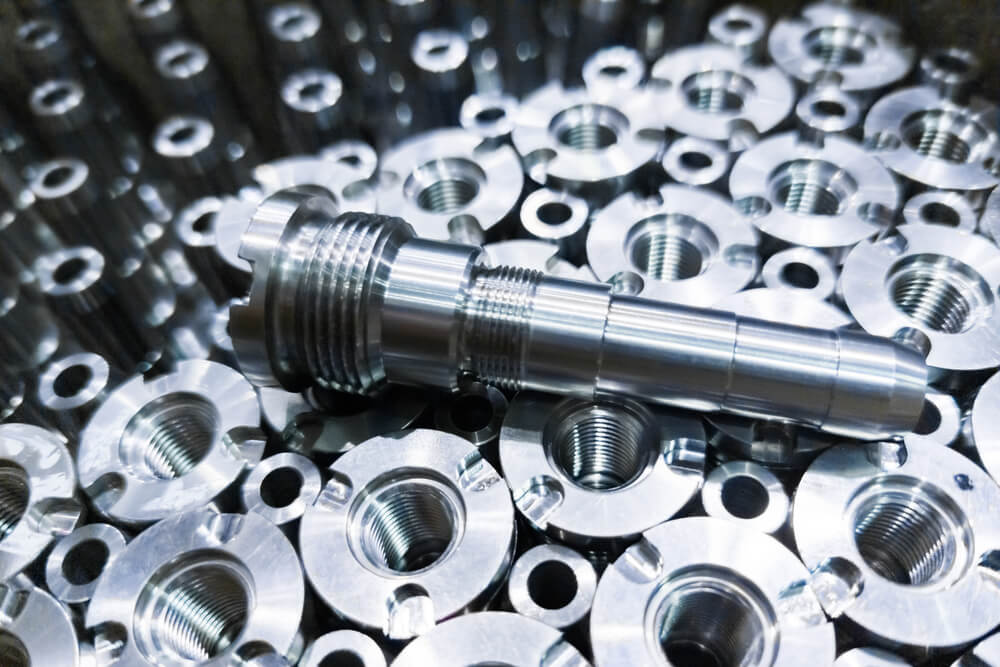

Turned Parts

CNC Turning Machine Process

The initial step of the CNC turning process involves the preparation of a CAD file, which is then converted to a CAM program – a program written in the G-Code language. Next, a set of tools is mounted on the tool changer. For example there could be:

The machinist may then mount in a chuck the raw bar material to be turned. A run of one piece may be done next to verify that the tools and the CAM program are set up correctly. The first-article part is then inspected. Any setup refinements can then be made. Production then begins. In some CNC turning systems bar material can be loaded automatically via a bar feeder. This is particularly helpful in large quantity runs.

Benefits of CNC Turning

CNC turning service has numerous benefits including high accuracy and precision. This assures that turned parts are created to meet exact specifications while eliminating the possibility of human error. CNC lathes produce minimal defects and achieve faster results compared to their manual counterparts.

Raw materials

CNC lathe machining can produce high-quality parts with accuracy and precision in a variety of raw materials. The CNC turning process can be applied to most hard materials and metals such as:

Lathe Tooling

Lathes are among the most versatile machine tools available and are used for streamlining various machining operations. The most common lathe machining operation is turning which primarily removes material on the outside diameter of the raw bar material which is held in a rotating chuck.

Design tips

When designing parts to be CNC turned consider these tips:

If practical, choose an outside diameter (OD) that is slightly smaller than a standard bar size. For example, avoid specifying an OD of 0.5”.
Avoid sharp corners – use a radius instead.
Avoid flimsy shapes that will deflect due to cutting pressure
Avoid shapes that have a high length to diameter ratio. 2 or 3 to 1 is optimum but much higher ratios are possible with proper tooling. Very long thin parts in CNC turning can be processed with a steady rest – a clamp-like device that supports the part from the outside to reduce vibration.
Avoid deep precision holes. Holes with high length to diameter ratio may require the use of a “boring bar” when tolerance is high. However such tools can deflect if the length to diameter ratio is high. Such holes start to become more challenging at around 10:1.

Turning services provide two types of turning operations, rough and finish:

Additional functions include:

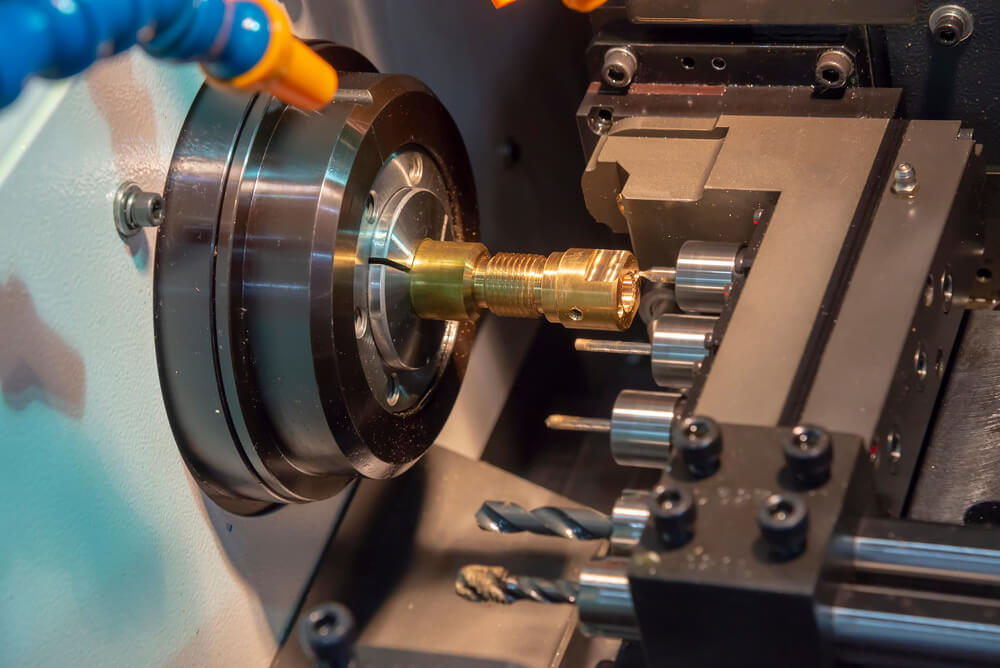

Drilling to create holes typically at the end of a bar
Tapping to create threaded holes
Grooving to create grooves on the OD or ID.
Parting tools that cut the machined part off of the bar
Reaming
Facing

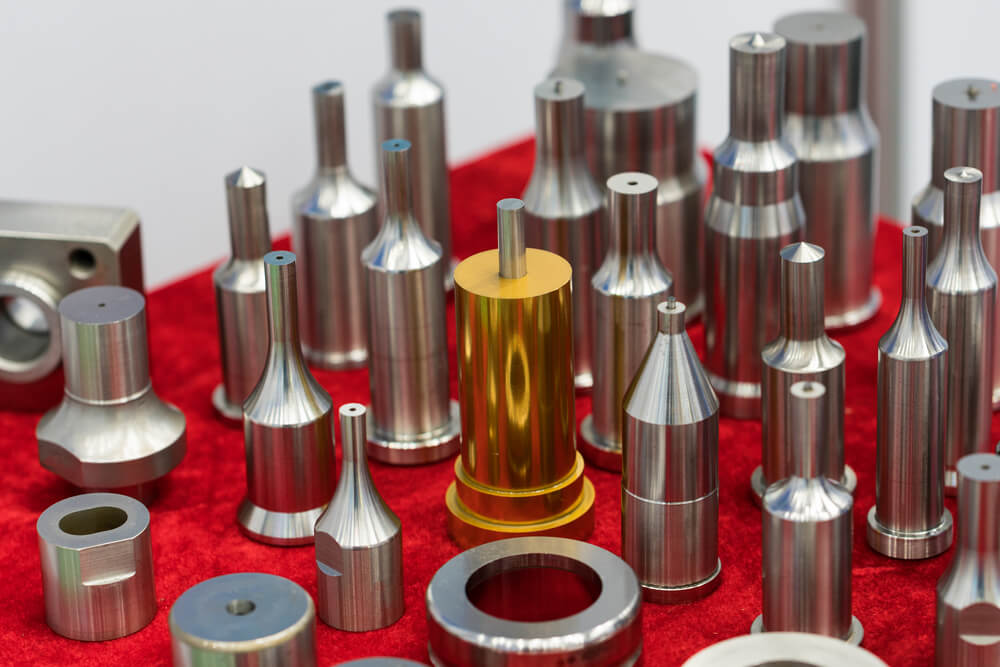

Aluminum CNC turning parts

Aluminum CNC turning parts are custom machined parts made using a CNC turning center, a type of CNC machine that rotates a workpiece while cutting it with a single-point cutting tool. The use of CNC turning centers allows for precise and accurate machining of aluminum parts, with the ability to create complex shapes and features. These aluminum parts can be used in a variety of industries, including aerospace, automotive, and medical, where precision and reliability are critical.

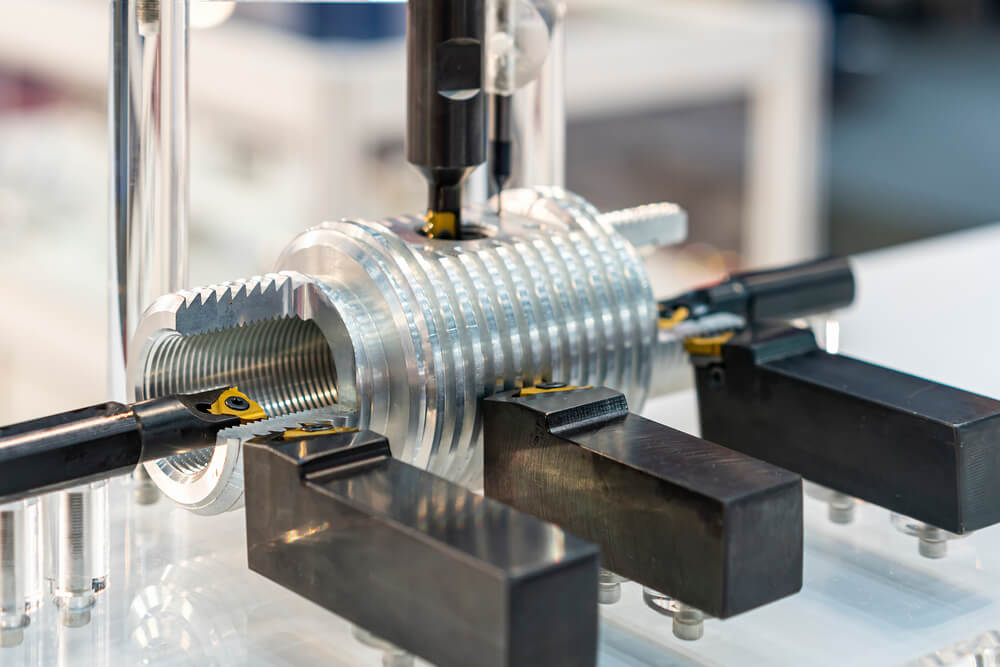

Single point threading

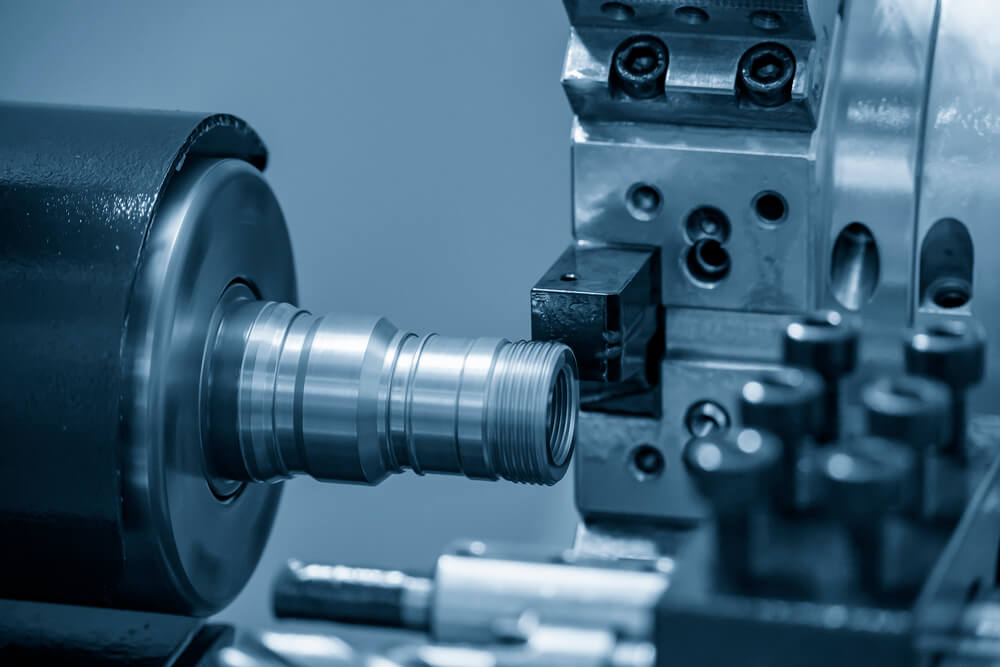

Single point threading in CNC turning is a process by which a cutting tool is used to cut a helical thread into the workpiece. This can be an external or internal thread. The cutting tool is moved in a synchronous fashion along the surface of the workpiece while the spindle rotates. This creates a threaded groove over the length of the workpiece. The depth and angle of the groove depends on the shape of the cutting tool, the feed rate, and the spindle speed. The final thread is formed by advancing the cutting tool along the groove until the required thread depth is achieved.

CNC Turning Applications

Transportation: Some of the main transportation sectors that depend on CNC turning services for the creation of transportation equipment include the aerospace, automotive, mass transit, rail and locomotive, military, and trucking industries. CNC machines are used for designing transportation equipment such as headnuts, gear blanks, bearing blocks, levers, axles, and rotors.
Construction: The construction industry demands components that are capable of handling heavy parts. CNC machines in construction are often used to create bolts and screws from an array of metals such as stainless steel and aluminum, that are used in assembly and fastening functions.
Vehicles: CNC turning services are used for auto parts including parts for engines, such as cylinder heads, connecting rods, and camshafts; transmission parts including shafts, and rings; suspension components like sway bars, control arms, and tie rod ends; plus other items such as bushings and bolts.
Air Travel: The aviation industry relies on CNC turned parts for the customization and creation of probes, joint connectors, fasteners, as well as engine and aircraft components. Many aviation based parts use titanium due to its ability to handle extreme high and low temperatures.

Lathe components

Accuracy

CNC lathes are highly accurate and precise machining tools, especially with hard materials such as steel, aluminum, stainless, titanium, brass, and copper metals. Plastic materials can also be used with CNC turning machining but due to the properties of the plastic materials, the achievable tolerance is usually lower than their metal counterparts and are more prone to deformation when machined. Plastic materials are also less expensive than metals which in some cases makes plastic a more popular choice for certain cases.

CNC turning machines typically provide accuracy and repeatability to within a few thousandths of an inch. With proper equipment and setup, CNC lathes can attain tolerances up to a few ten-thousandths or even better, however at that level, the temperature of the material comes into play as does the quality of the machine and the geometry of the part being machined.

Bar feeders

Bar feeders are used on CNC turning machines to automate the material handling process. They are designed to feed a continuous length of bar stock into the spindle of the CNC turning center. This saves labor and hence cost for high volume jobs. It also shortens the delivery time.

Geometries

The CNC turning machining process is capable of achieving both simple and complex geometric designs with a variety of added features. Common part shapes that are possible on a conventional CNC turning center include:

1. Straight cylindrical shapes

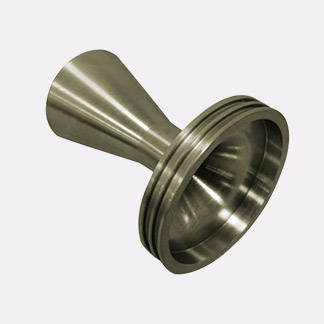

2. Tapered shapes such as a cone

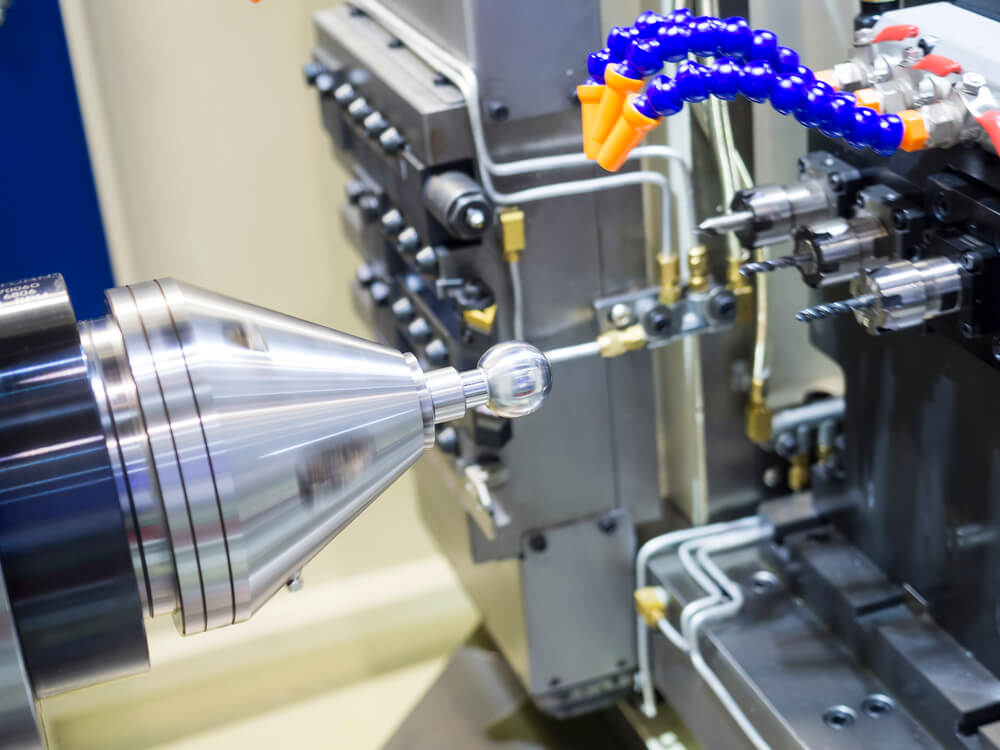

3. Contoured shapes such as a chess pawn

4.Shapes with threaded holes

5. Shapes with grooves such as for o-rings

6.Knurled shapes such as for handles

7. Chamfered shapes

8. Shouldered shapes

Manufacturing advanced designs with both turning and milling features

CNC turning and CNC milling are two of the most common machining processes used to create custom machined parts. While CNC turning machining uses a lathe to rotate a part against a cutting tool to create a cylindrical shape, CNC milling machining uses a cutting tool that rotates around an x, y, and z axis to create a three dimensional shape. Some advanced 3D CAD models may have both turning and milling features included so the two manufacturing processes are combined in sequential steps to machine the raw material into an accurate and quality production run.

Secondary surface finishing processes

CNC lathe production can involve a variety of secondary finishes to ensure that the metal parts meet the desired surface quality after they have finished the machining process A secondary finishing service can include deburring, grinding, polishing, anodizing, painting, and plating. Deburring helps to remove any sharp edges or burrs, while grinding and polishing can improve the surface finish of the metal. Anodizing and plating can improve the strength, wear resistance, and corrosion resistance of the metal, and painting or powder coating, if the machined part is metal, can be used to add color to the part.

Choosing a CNC turning manufacturer for your next project

When choosing a CNC turning manufacturer for your project, it is important to consider the quality of the parts they produce, the secondary surface finishes they can accommodate, their turnaround time, and their customer service support. It is important to make sure that the manufacturer is up to date on the latest technology and has the necessary CNC machines to produce the parts you need in a cost-effective and reliable production run. Additionally, it is important to make sure that the manufacturer is experienced in the types of machining the CAD design may require such as tooling components, raw material acquisition, and access to a CNC milling machine to accommodate any advanced features. Finally, you should make sure that the cost of the parts is within your budget and is competitive with other quotes you have received.
